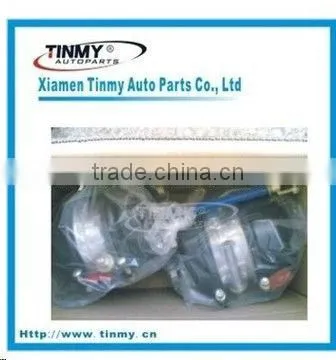

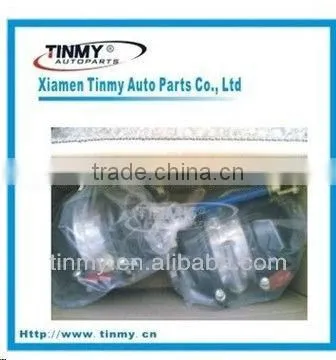

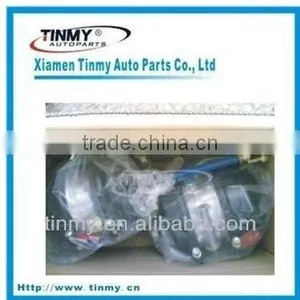

Brake Chamber for Trailer:
1. Single Room & Double Room Air Brake Chamber
2. Certificates: ISO/TS16949
T30 Trailer Brake Air Chamber/ Air brake booster
1. Type: Single & Double, DD, DP, SEAL
2. Size: T09, T12, T16, T20, T24, T30, T2024, T2424, T2430, T3030
Single room type: T09, T12, T16, T20, T24, T30
Double room type: T2024, T2430, T2424, T3030
Good quality brake chamber with competitive price & fast delivery.
| Item No. | Stroke | R1 | R2 | L1 | L2 | L4 | Push Rod Thread | Air Inlet Thread | Mounting Bolt Thread | Weight |
| mm | mm | mm | kg | |||||||
| TMC-T09 | 44.5 | 87 | 68 | 104±5 | 106±5 | 130±3 | 1/2"-20UNF | 1/4"-18NPTF | 7/16"-14UNC | 1.9 |
| TMC-T12 | 44.5 | 125 | 105 | 104±5 | 160±5 | 130±3 | 1/2"-20UNF | 3/8"-18NPTF | 7/16"-14UNC | 2.3 |
| TMC-T16 | 57 | 107 | 83 | 109±3 | 163±5 | 160±3 | 1/2"-20UNF | 3/8"-18NPTF | 7/16"-14UNC | 3 |
| TMC-T20 | 57 | 11 | 88 | 84±5 | 240±5 | 200±4 | 5/8"-18UNF2A | 3/8"-18NPTF | 5/8-11UNC2A | 4 |
| TMC-T24 | 64 | 116 | 93 | 123±5 | 240±5 | 206±4 | 5/8"-18UNF2A | 3/8"-18NPTF | 5/8-11UNC2A | 4.1 |
| TMC-T30 | 64 | 125 | 105 | 123±5 | 285±5 | 255±4 | 5/8"-18UNF2A | 3/8"-18NPTF | 5/8-11UNC2A | 4.8 |
| Item No. | Stroke | R1 | R2 | L1 | L2 | L4 | Push Rod Thread | Air Inlet Thread | Mounting Bolt Thread | Weight |
| mm | mm | mm | kg | |||||||
| TMC-T2024 | 64 | 110 | 88 | 220±5 | 75±5 | 50±4 | M16*1.5 | M16*1.5 | M16*1.5 | 7.78 |
| TMC-T2424 | 64 | 116 | 93 | 224±5 | 240±5 | 206±4 | 5/8"-18UNF2A | 3/8"-18NPTF | 5/8-11UNC2A | 8.1 |
| TMC-T2430 | 64 | 163 | 184 | 234±5 | 240±5 | 206±4 | 5/8"-18UNF2A | 3/8"-18NPTF | 5/8-11UNC2A | 9.2 |
| TMC-T3030 | 64 | 125 | 105 | 238±5 | 285±5 | 255±5 | 5/8"-18UNF2A | 3/8"-18NPTF | 5/8-11UNC2A | 9.5 |
Xiamen Tinmy Autoparts Co., Ltd., which belongs to Tinmy Group, is a leading manufacturer in auto parts that organized by several factories and successfully certified with TS16949 and ISO9001/2000 quality control system.
OEM service provided.
Complete & considerate after-sale service.
By standard seaworthy packing.
If you have any special request, feel free to tell us.
