Specifications

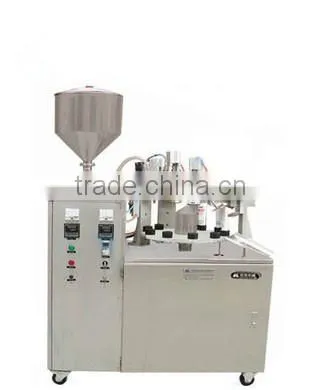

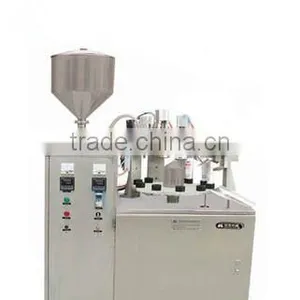

This machine is mainly used for composite hose, plastic tube is a quantitative filling, packing container material and sealing,[Product name] aluminum~plastic composite plastic tube filling and sealing machine
[Product introduce]
Use
This machine is mainly used for composite hose, plastic tube is a quantitative filling, packing container material and sealing, this machine is widely used in pharmaceutical, chemical, food, chemical and other industries packaging. Such as cream, skin cream, toothpaste, shoe polish, glue, AB glue, epoxy glue, hair coloring agent, etc., liquid or cream filling and sealing.
Working principle
Artificial the pipe is inserted into the sockets, through mechanical transmission, automatic rotation of eight stations, when the photoelectric detection to the tube, quantitative filling; no tube no filling, through heating, sealing, batch number, the product launch package shear.
Feature
Composite tube filling and sealing machine uses the stainless steel manufacture, all work with high precision cylinder stroke, easy to adjust filling volume, the filling speed can be adjusted. Sealing appearance neat, tight sealing, high precision, good stability. Optional according to different materials: hopper heating system, anti~drawing filling head.
Main technical parameters
Model |
GZJ-B |
Voltage |
AC 220V 50HZ |
Power consumption |
150W×8(Tube heating) |
Air supply |
0.6-0.8(MPa) |
Gas consumption |
<30(dm³/min) |
Filling range |
5-75 20-150 30-250(ml) |
Working capacity |
20-40(b/min) |
Measurement precision |
<2% |
Machine size |
1230×700×1400mm |
Machine weight |
230kg |
