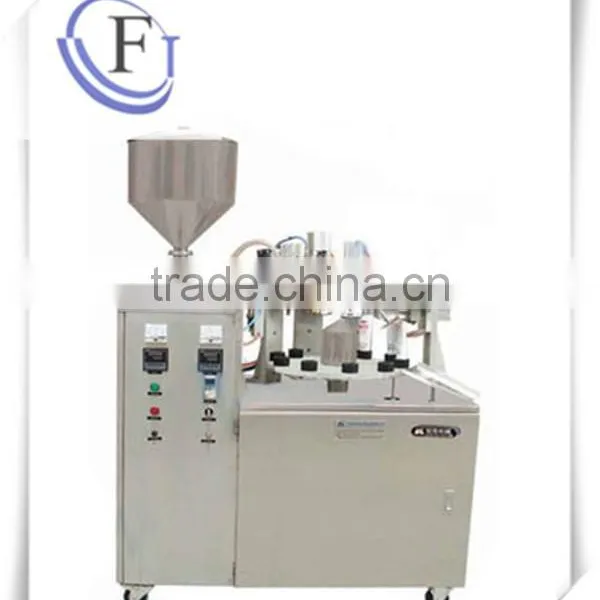

GZJ-B aluminum-plastic composite plastic tube filling and sealing machine
This machine is mainly used for composite hose, plastic tube is a quantitative filling, packing container material and sealing, this machine is widely used in pharmaceutical, chemical, food, chemical and other industries packaging.
Such as cream, skin cream, toothpaste, shoe polish, glue, AB glue, epoxy glue, hair coloring agent, etc.,
liquid or cream filling and sealing.
Artificial the pipe is inserted into the sockets, through mechanical transmission, automatic rotation of eight
stations, when the photoelectric detection to the tube, quantitative filling; no tube no filling, through heating sealing, batch number, the product launch package shear.
Composite tube filling and sealing machine uses the stainless steel manufacture, all work with high precision cylinder stroke, easy to adjust filling volume, the filling speed can be adjusted. Sealing appearance neat, tight
sealing, high precision, good stability. Optional according to different materials: hopper heating system,
anti-drawing filling head.
Model |
GZJ-B |
Voltage |
AC 220V 50HZ |
Power consumption |
150W×8(Tube heating) |
Air supply |
0.6-0.8(MPa) |
Gas consumption |
<30(dm³/min) |
Filling range |
5-75 20-150 30-250(ml) |
Working capacity |
20-40(b/min) |
Measurement precision |
<2% |
Machine size |
1230×700×1400mm |
Machine weight |
230kg |
Guangzhou Jinfeng Light Industry Machinery Co., Ltd. is a manufacturer that produces cosmetic, pharmaceutical, chemical and dairy equipment. We undertake equipment design, manufacture, installation, maintenance, technical improvement support, technical consultancy and other services. Our main products are vacuum homogeneous emulsifying machines, reverse osmosis water treatment machines, automatic and semi-automatic filling machines and all kinds of stainless steel tanks. All of them are of reliable quality and good effect. We have more than ten years' experience in machinery manufacturing and our products have been entered into domestic and overseas markets. The diverse products with high quality can meet various needs of industries mentioned above.
If you are not satisfied, Don't be disappointed,u can tell us ur request and we will recommend one to u. And also can customized, our engineer can exclusively design for u.Thank u for ur inquiry !
