Specifications
Yuhui Coal slime dryer direct selling1.envirommental friendly
2.Strong innovation and technology ability
3.Full use of fuel

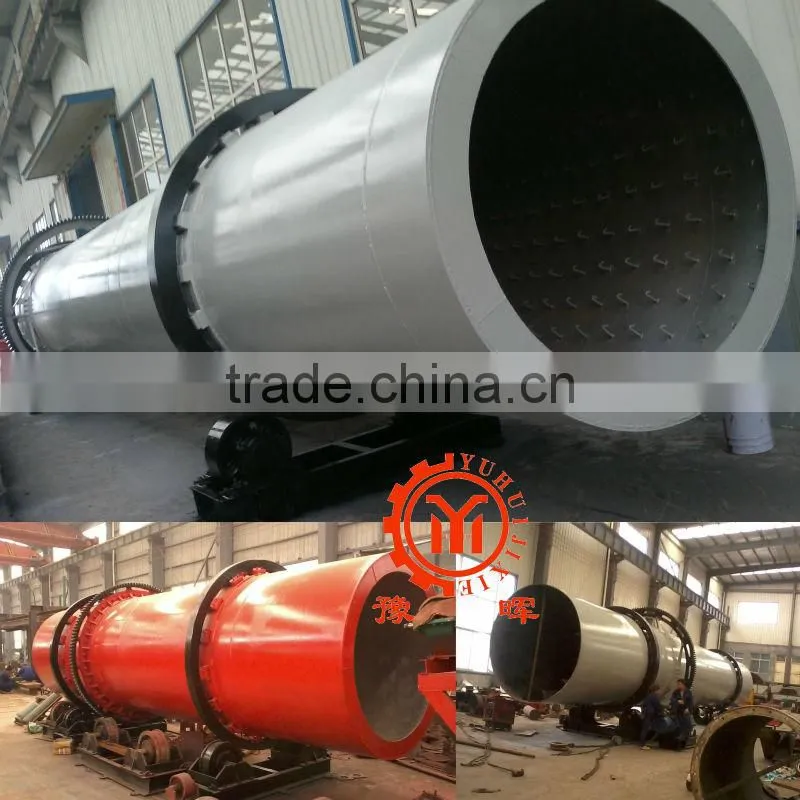

Henan Yuhui Coal slime dryer direct selling
Coal Slime rotary dryer is a kind of highly efficient, stable and reliable heating drying equipment, designed by YUHUI dryer or drying machine to dry materials of high moisture or strong stickness. Coal Slime dryer is performance are better than tube bundle rotary dryer, blade rotary dryer. It’s features are big capacity, low energy cost, and high efficience. Coal Slime dryer is applied in the materials like coal slurry, mud, filted gypsum, Muddy,high-moisture swell soil, electroplate mud and so on.
Coal slime dryer main applicable area:
1.The coal industry coal, coal with flotation, drying mixed coal and other materials drying;
2, the construction industry blast furnace slag, clay, limestone, sand, quartz and other materials drying;
3, processing industry, metal concentrates , slag, tailings and other materials drying;
4, the chemical industry of non-heat-sensitive materials drying.
Main Technical Parameters:
model(mm) |
Inclination (%) |
rotate speed |
temperature |
power |
capacity(t/h) |
weight |
600x6000 |
3-5 |
3-8 |
≤700 |
3 |
0.5-1.5 |
2.9 |
800x8000 |
3-5 |
3-8 |
≤700 |
4 |
0.8-2.0 |
3.5 |
800x10000 |
3-5 |
3-8 |
≤700 |
4 |
0.8-2.5 |
4.5 |
1000x10000 |
3-5 |
3-8 |
≤700 |
5.5 |
1.0-3.5 |
5.6 |
1200x10000 |
3-5 |
3-8 |
≤700 |
7.5 |
1.8-5 |
14.5 |
1200x12000 |
3-5 |
3-8 |
≤700 |
11 |
2-6 |
14.8 |
1500x12000 |
3-5 |
2-6 |
≤800 |
15 |
3.5-9 |
17.8 |
1800x12000 |
3-5 |
2-6 |
≤800 |
18 |
5-12 |
25 |
2200x12000 |
3-5 |
1.5-6 |
≤800 |
18.5 |
6-15 |
33 |
2200x18000 |
3-5 |
1.5-6 |
≤800 |
22 |
10-18 |
53.8 |
2200x20000 |
3-5 |
1.5-6 |
≤800 |
30 |
12-20 |
56 |
2400x20000 |
3-5 |
1.5-5 |
≤800 |
37 |
18-30 |
60 |
3000x20000 |
3-5 |
1.5-5 |
≤800 |
55 |
25-35 |
78 |
Data above is only for reference.
As a professional machinery manufacturing factory,we believed that success comes to a great service.
Sincerely hoping that both sides could cooperation happily!
