Specifications
high quality lime kiln professional manufacturer1. bigger capacity
2. smooth operation
3.ISO9001:2000, CE
4. welcome visit
high quality lime kiln professional manufacturer
1. lime kiln main usages:

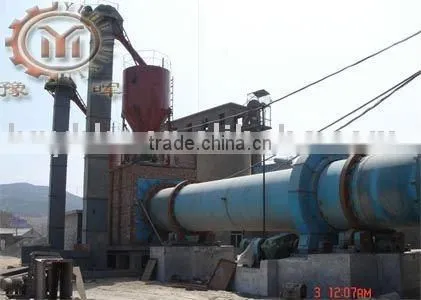

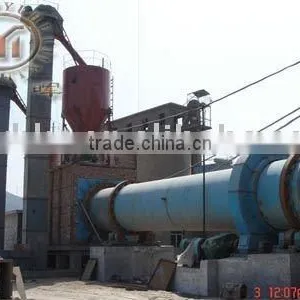

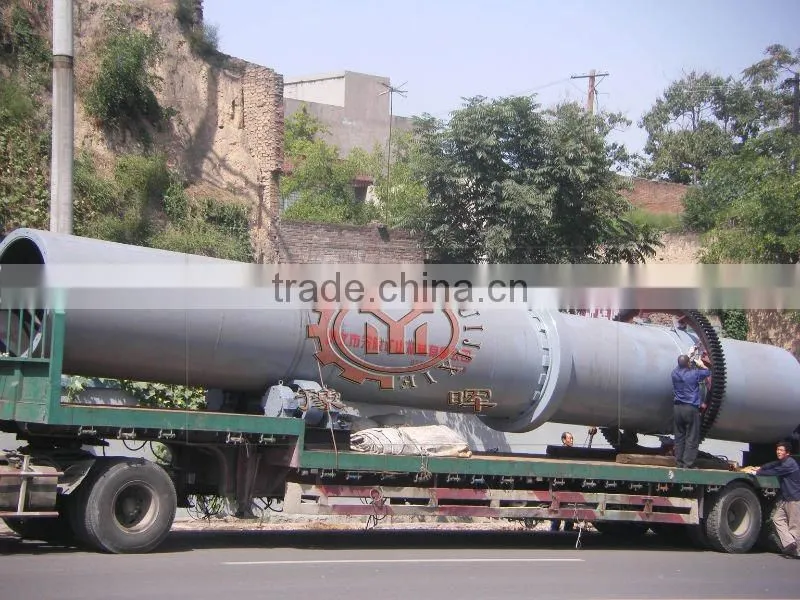

Lime kiln is rotary cylinder equipment for burning various materials. It is widely used in economic fields. In cement industry, rotary kiln is the major equipment of burning raw cement into clinker; in chemical industry, rotary kiln can produce saleratus, burn phosphor fertilizer and barium sulphide, etc.; in metallurgy industry, it is used to produce aluminium hydroxide. It can be used for drying many kinds of materials limestone slag, coal powder , slag, clay stone. Its highest temperature can reach 1600-1700 degree.
2. lime kiln features:
1. Support device: advanced shaft structure, automatic temperature measuring device and electrical heating,.
2. Catch wheel : including two kinds mechanical wheel and hydraulic pressure

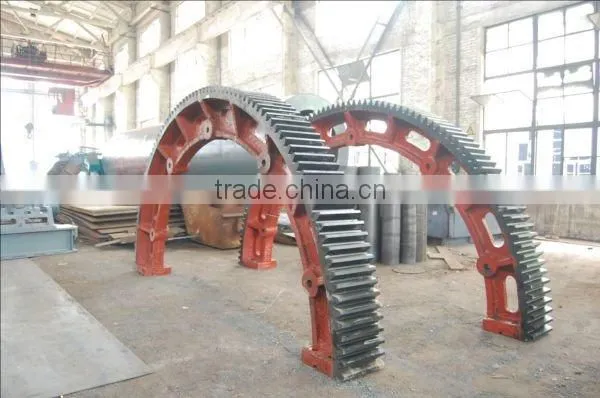

3. Gears: single or double. Control the rotating speed by buncher, DE machine and frequency variable motor. Be reliable , energy-saving, and efficient.
4. Cylinder tyre bolster: lower bolster has three types: fixed , zoom and floating. The structure is simple , replacement is convenient and won’t hurt cylinder.
5. Sealing equipment: there are many kinds for choice according to kiln models, including air cylinder edge sealing, spring edge sealing , graphite block sealing and combination for above. The feather is adaptive for cylinder rotating and swing. And sealing effect is very good.
3. lime kiln main technical data:
Specifications |
Kiln demensions |
Output(t/h) |
Rotation speed(r/min) |
Moto power(kw) |
Weight |
Note |
||
Diameter |
Length |
Obliquity |
(t) |
|||||
ø1.4*33 |
1.4 |
33 |
3 |
0.9-1.3 |
0.39-3.96 |
18.5 |
47.5 |
---- |
ø1.6*36 |
1.6 |
36 |
4 |
1.2-1.9 |
0.26-2.63 |
22 |
52 |
---- |
ø1.8*45 |
1.8 |
45 |
4 |
1.9-2.4 |
0.16-1.62 |
30 |
78.2 |
---- |
ø1.9*39 |
1.9 |
39 |
4 |
1.65-3 |
0.29-2.93 |
30 |
77.59 |
---- |
ø2.0*40 |
2 |
40 |
3 |
2.5-4 |
0.23-2.26 |
37 |
119.1 |
---- |
ø2.2*45 |
2.2 |
45 |
3.5 |
3.4-5.4 |
0.21-2.44 |
45 |
128.3 |
---- |
ø2.4*40 |
2.4 |
40 |
3.5 |
6.2-6.8 |
0.39-2.44 |
55 |
136.5 |
---- |
ø2.5*40 |
2.5 |
40 |
3.5 |
9.0-10.5 |
0.44-2.44 |
55 |
149.61 |
---- |
