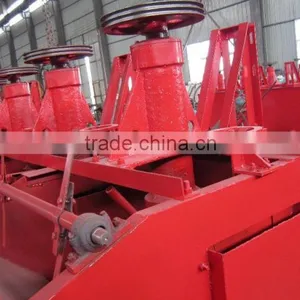

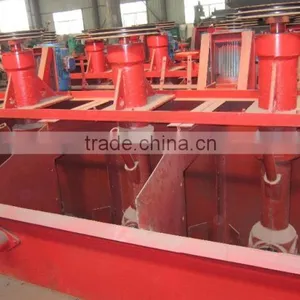

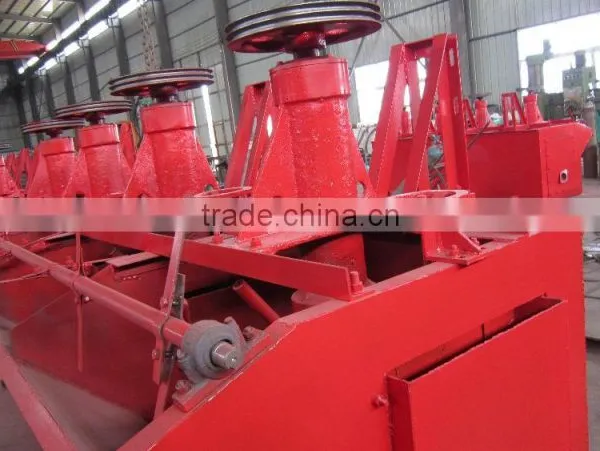

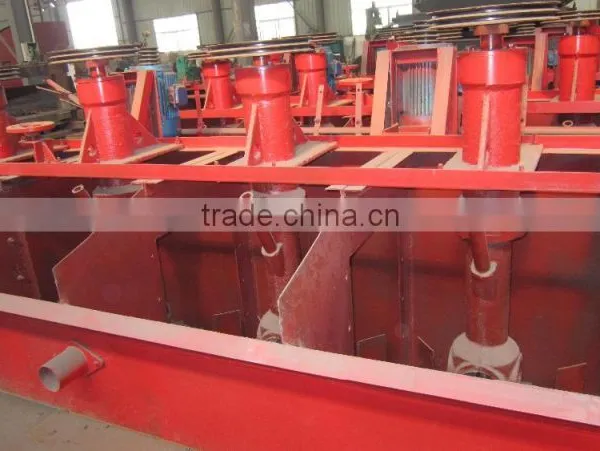

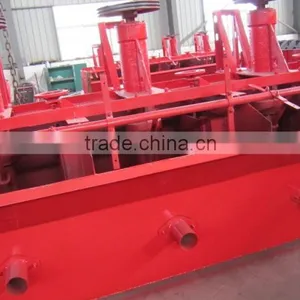

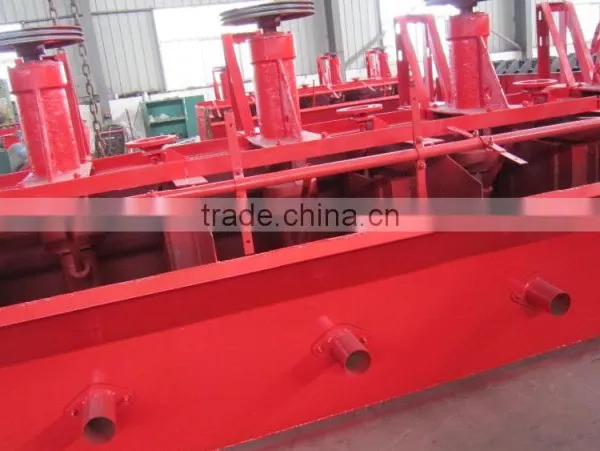

0.35 Cubic meters small flotation machine for mineral ore beneficiation plant :
Flotation machine is widely applicable for coarese separation, fine separator and reverse flotation of nonferrous metals like copper, lead, zinc,nickel and molybdenum
1. Application of Flotation Machine:
SF Flotation Machine is applicable for separating non-ferrous metal, black metal, noble metal, non-metal mineral, raw body and materials of chemical industry, which are subject to coarse separation, swept separation, fine separation and floatation, so the useful ore are reclaimed.the flotation machine will add chemicals to achieve the flotation separating efficiency.
2. The main features of Flotation Machine:
Compared to ordinary flotator, the SF Flotation Machine has the following advantages:
(1)Improve quality grade up to 4-6%
(2)Improve the recovery rate up to 8%
(3)Improve yield up to 12%
3.Flotation machine main structure:
4.Flotation machine working principle:
The impeller is rotated by V-belt of motor and produces negative pressure by centrifugal function. Enough air is sucked to mix slurry, and slurry mixes drug at the same time. Mineral sticks on bubble completely and floats on the surface of slurry to form mineralized bubble. Useful bubble is scraped out by adjusting flashboard height and controlling liquid surface.
5. Main technical parameters for flotation machine:
| Model | XJK-0.35 (3A) | XJK-0.62 (4A) | XJK-1.1 (5A) | XJK-2.8 (6A) | XJK-5.8 (7A) | ||
| Effective cubage(m 3 ) | 0.35 | 0.62 | 1.1 | 2.8 | 5.8 | ||
| Production capacity(m 3 /min) | 0.18-0.4 | 0.3-0.9 | 0.6-1.6 | 1.5-3.5 | 3-7 | ||
| Rotation speed(r/min) | 470 | 400 | 330 | 280 | 240 | ||
| Blade diameter(mm) | 300 | 350 | 500 | 600 | 750 | ||
| Motor | Model | Rotor | Y90L-4 | Y100L2-4 | Y132M2-6 | Y160L-6 | Y200L2-6 (Y225M-6) |
| Scraping plate | Y90S-4 | Y90S-4 | Y90S-4 | Y90S-4 | Y90L-4 | ||
| Power (kw) | Blade Motor | 1.5 | 3 | 5.5 | 11 | 22(30) | |
| Scraping plate Motor | 1.1 | 1.1 | 1.1 | 1.1 | 1.5 | ||
| Weight(t/single trough) | 0.43 | 0.86 | 1.38 | 2.33 | 3.533 | ||
SF series flotation machine :
Model |
SF0.37 |
SF0.7 |
SF1.2 |
SF2.8 |
SF4 |
SF8 |
|
Trough capacity(m²) |
0.37 |
0.7 |
1.2 |
2.8 |
4 |
8 |
|
Blade diameter(mm) |
300 |
350 |
450 |
550 |
650 |
760 |
|
Production capacity(m²/min) |
0.2-0.4 |
0.3-0.9 |
0.6-1.2 |
1.5-3.5 |
0.5-4 |
4-8 |
|
Blade rotation speed(r/min) |
352 |
400 |
312 |
268 |
238 |
191 |
|
|
Motor |
Model |
Y90L-4 |
Y100L-4 |
Y132M-6 |
Y160L-6 |
Y180L-6 |
Y250M-8 |
Y90S-4 |
Y90S-4 |
Y90S-4 |
Y90S-4 |
Y90L-4 |
Y100L-6 |
||
Power(kw) |
1.5 |
3 |
5.5 |
11 |
15 |
30 |
|
1.1 |
1.1 |
1.1 |
1.1 |
1.5 |
1.5 |
||
Dimension(mm) |
700×700×750 |
900×820×950 |
1100×1100×1100 |
1700×1600×1150 |
1850×2050×1200 |
200×2900×1400 |
|
Single trough weight |
468 |
600 |
1373 |
2338 |
2660 |
4130 |
|
