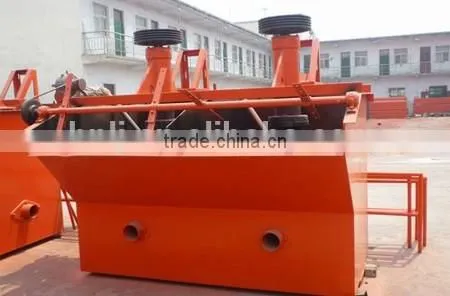

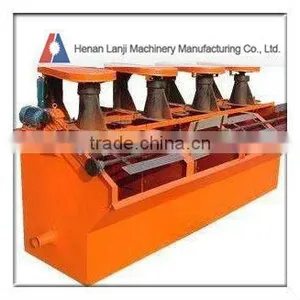

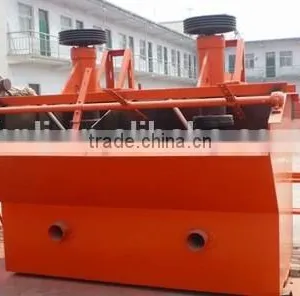

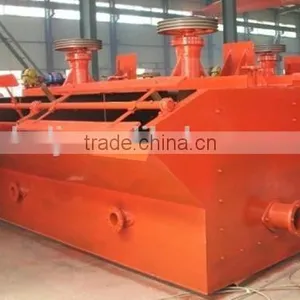

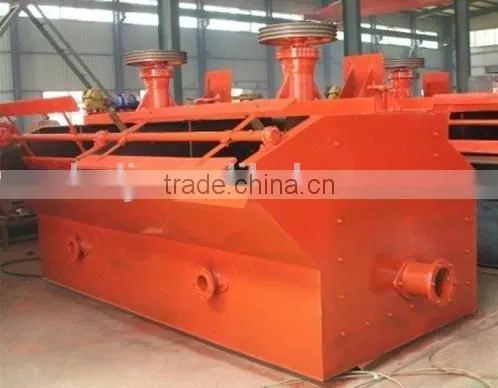

Mining flotation separator for gold ore mining plant:
1. Application of mining separator Flotation Machine:
SF Flotation Machine is applicable for separating non-ferrous metal, black metal, noble metal, non-metal mineral, raw body and materials of chemical industry, which are subject to coarse separation, swept separation, fine separation and floatation, so the useful ore are reclaimed.the flotation machine will add chemicals to achieve the flotation separating efficiency.
2. The main features of Mining Separator Flotation Machine:
Compared to ordinary flotator, the SF Flotation Machine has the following advantages:
(1)Improve quality grade up to 4-6%
(2)Improve the recovery rate up to 8%
(3)Improve yield up to 12%
3.Mining separator Flotation machine main structure:
4.Mining separator/Flotation machine working principle:
The impeller is rotated by V-belt of motor and produces negative pressure by centrifugal function. Enough air is sucked to mix slurry, and slurry mixes drug at the same time. Mineral sticks on bubble completely and floats on the surface of slurry to form mineralized bubble. Useful bubble is scraped out by adjusting flashboard height and controlling liquid surface.
5. Main technical parameters for mining separator/ flotation machine:
Model |
SF0.37 |
SF0.7 |
SF1.2 |
SF2.8 |
SF4 |
SF8 |
|
Trough capacity(m²) |
0.37 |
0.7 |
1.2 |
2.8 |
4 |
8 |
|
Blade diameter(mm) |
300 |
350 |
450 |
550 |
650 |
760 |
|
Production capacity(m²/min) |
0.2-0.4 |
0.3-0.9 |
0.6-1.2 |
1.5-3.5 |
0.5-4 |
4-8 |
|
Blade rotation speed(r/min) |
352 |
400 |
312 |
268 |
238 |
191 |
|
|
Motor |
Model |
Y90L-4 |
Y100L-4 |
Y132M-6 |
Y160L-6 |
Y180L-6 |
Y250M-8 |
Y90S-4 |
Y90S-4 |
Y90S-4 |
Y90S-4 |
Y90L-4 |
Y100L-6 |
||
Power(kw) |
1.5 |
3 |
5.5 |
11 |
15 |
30 |
|
1.1 |
1.1 |
1.1 |
1.1 |
1.5 |
1.5 |
||
Dimension(mm) |
700×700×750 |
900×820×950 |
1100×1100×1100 |
1700×1600×1150 |
1850×2050×1200 |
200×2900×1400 |
|
Single trough weight |
468 |
600 |
1373 |
2338 |
2660 |
4130 |
|
