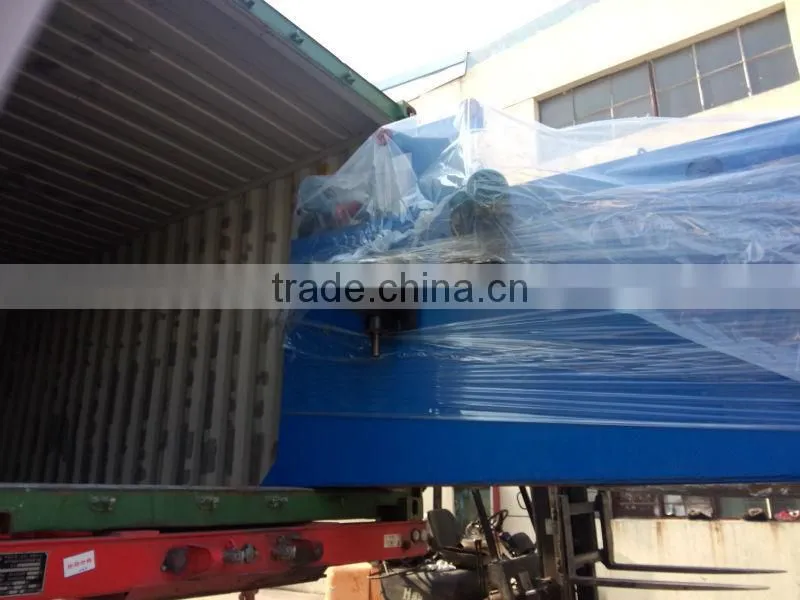

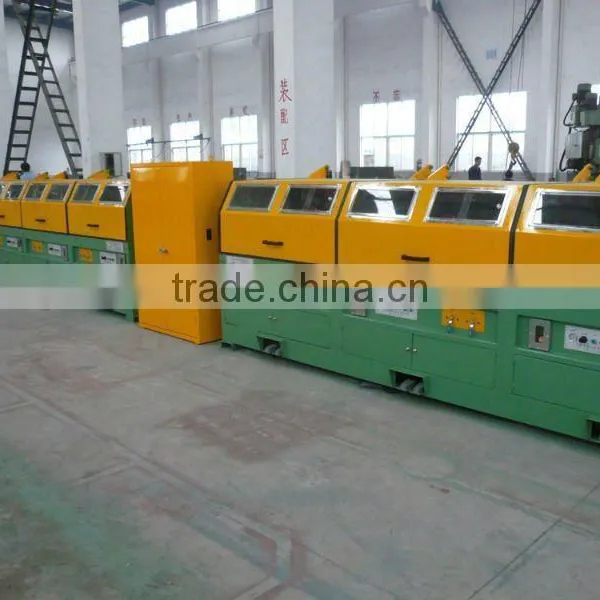

Brass Wire Drawing Machine
US$ 20,000 - 80,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Inlet Diameter:
8mm
Outlet Diameter:
1.2mm
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or as u need
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Copper Wire Drawing MachineUS$ 5,000 - 9,500MOQ: 1 Set -
Copper Wire Drawing MachineUS$ 20,000 - 50,000MOQ: 1 Set
-
Copper Wire Drawing MachineUS$ 20,000 - 50,000MOQ: 1 Set
-
Copper Wire Drawing MachineUS$ 20,000 - 80,000MOQ: 1 Set
-
ER70S Welding Wire Drawing MachineUS$ 20,000 - 120,000MOQ: 1 Set
Condition
New
Inlet Diameter
8mm
Outlet Diameter
1.2mm
Place of Origin
Jiangsu, China
Brand Name
wanyi
Model Number
LZ600
Voltage
380V
Power(W)
3-22KW
Dimension(L*W*H)
9000*1200*1500
Weight
8000KG
Certification
ce
Warranty
one year freely
After-sales Service Provided
Overseas service center available
Application
It is applied for the production of prestressing strand, steel cord, bead wire, steel wire, spring steel wire, stainless steel wire, gas welding wire, arc welding wire,etc.
-----------------------------------------------------------------------------------
Specification
| Items | Unit | LZ9-12/1200 | LZ10/800 | LZ9/700 | LZ10/560 | LZ10/400 |
| Reel diameter | mm | 900 | 800 | 700 | 560 | 400 |
| Draw passage | time | 9-12 | 10 | 9 | 10 | 10 |
| Incoming dia | mm | Φ14-8 | Φ10-8 | Φ8-6.5 | Φ6.5-5.5 | Φ14-8 |
| Outgoing dia | mm | Φ5-3 | Φ4-3 | Φ3-2.5 | Φ2-1.8 | Φ1-0.8 |
| Wire darwing line | m/min | 300 | 360 | 480 | 720 | 840 |
| Incoming strength | Mpa | ≤1300 | ≤1300 | ≤1300 | ≤1300 | ≤1300 |
| Total compressibility | % | 87.24-85.94 | 84-85.94 | 85.94-85.21 | 90.53-89.29 | 87.24-84 |
| Average compressibility | % | 20.48-19.58 | 18.42-19.58 | 19.58-19.13 | 21.00-20.02 | 18.61-16.74 |
| Single motor power | Kw | 110-90 | 90-55 | 75-55 | 37-22 | 15-7.5 |
