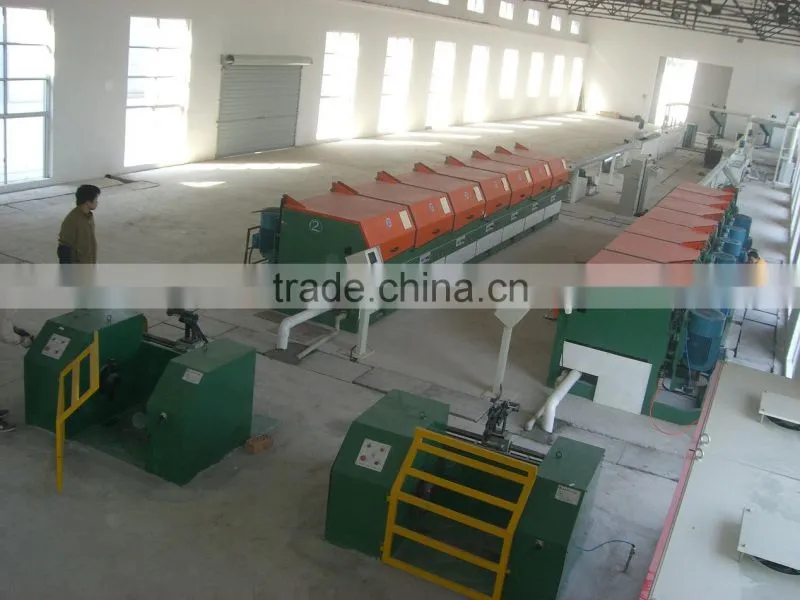

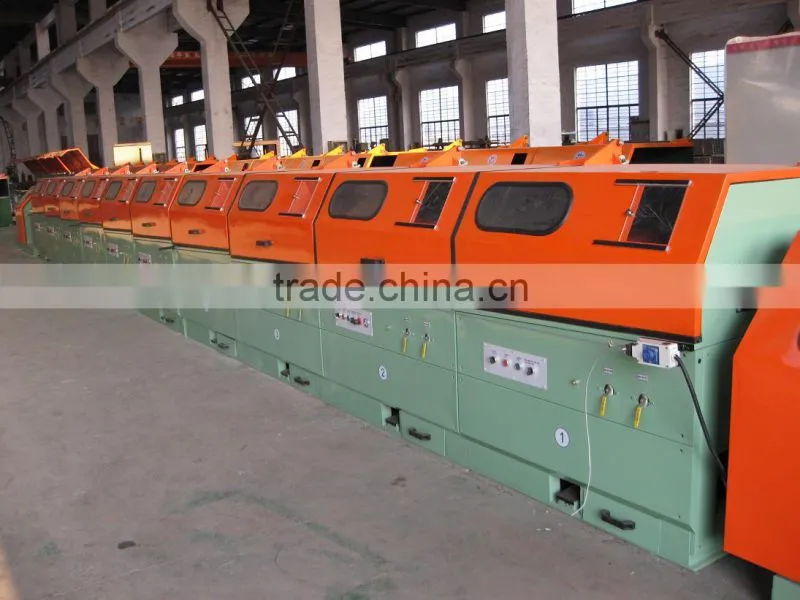

STRAIGHT LINE DRAWING MACHINE LZ5/560
No |
Item |
Composition and technical details |
1 |
Equipment name |
LZ5/560 wire drawing line |
2 |
Equipment composing |
1. FX1250 h-wheel payoff 2. LZ5/560 straight line drawing machines 3. SG1250 h-wheel take-up 4. control cabinet |
3 |
Working range |
1. Max inlet: dia 6.0mm(annealing needed before drawing) 2. wire strength: 300Mpa 3. material: aluminum welding wire 4. min outlet: dia 2.75mm |
4 |
wire drawing speed |
Designed speed:10m/s, working speed:5-8m/s |
5 |
Water/air pressure |
Water pressure≥0.2Mpa Air pressure≥0.6MPa |
6 |
motor |
1. pay-off 18.5kw frequency control AC motor 2. 1st-8rd block 22kw frequency control AC motor 3. h-wheel: 22kw frequency control AC motor |
7 |
block |
1. block size: dia 560mm 2. block material is ZG45 steel with WC spraying, hardness is HRC60 |
8 |
cooling |
1. inside is high efficiency narrow slot water cooling 2. die box uses direct water cooling 3 first and last dies are rotating type |
9 |
stand |
1. stand is steel welded structure 2. with water, electricity and air control button and emergency stop device |
10 |
transmission |
High efficiency narrow v-belt, low noise |
11 |
control |
1. Main machines use frequency controller(ABB) 2. PLC control(SIEMENS) 3. All digital communication and control, with person-PC screen, data and fault indication |
12 |
Related functions |
1. wire length detection with pre-set 2. wire breaking protection device 3. function of stopping when protection cover open or to length pre-set |
13 |

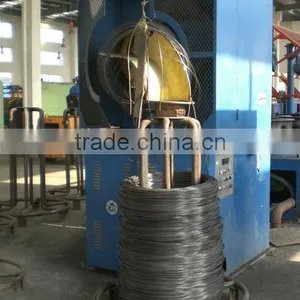

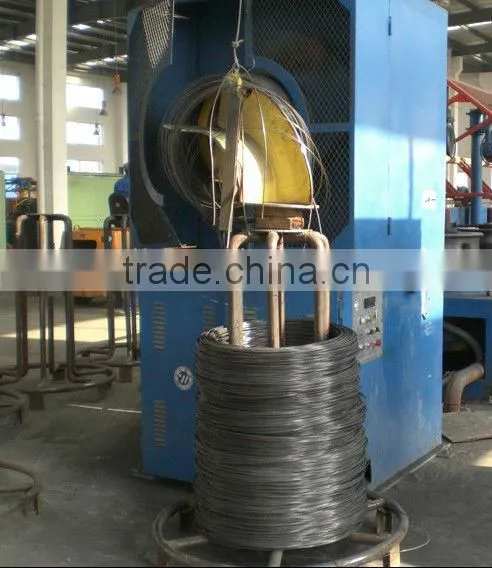

Wire collecting |
1. h-wheel size 1250mm 2.use pneumatic tip-up device, 3 polish rod winding displacement 4. rod array pitch is adjustable 5. frequency conversion control |
