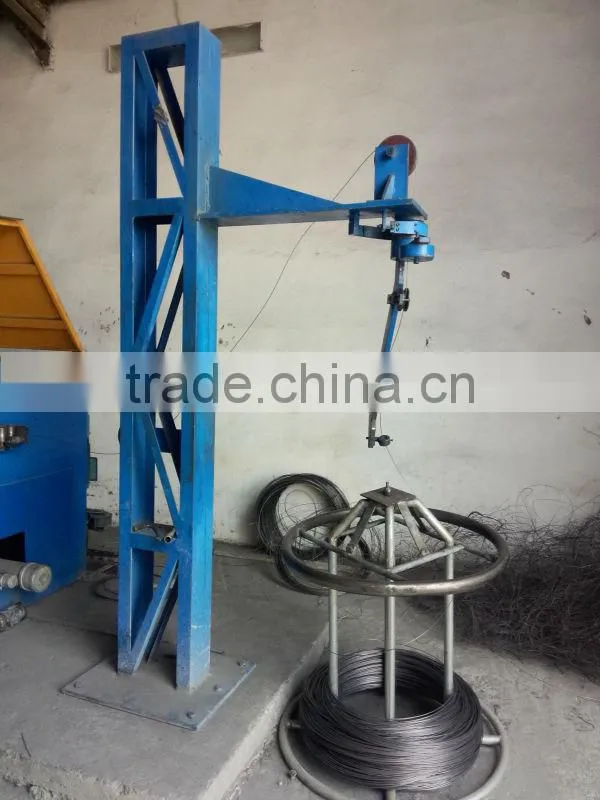

Fine Wire Drawing Machine
US$ 20,000 - 50,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Wire Drawing Machine
Use:
Wire
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI OR U ARRANGED
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
Type
Wire Drawing Machine
Use
Wire
Place of Origin
Jiangsu, China
Brand Name
wanyi
Model Number
LZ400 drawing machine
Voltage
380V
Power(W)
7.5-75KW each block
Dimension(L*W*H)
8500X1560X1600MM
Weight
7000kg
Certification
CE or SGS and ISO9001:2008
Warranty
one year
After-sales Service Provided
Overseas service center available
Application
It is applied for the production of prestressing strand, steel cord, bead wire, steel wire, spring steel wire, stainless steel wire, gas welding wire, arc welding wire,etc.
-----------------------------------------------------------------------------------
Specification
| Items | Unit | LZ9-12/1200 | LZ10/800 | LZ9/700 | LZ10/560 | LZ10/400 |
| Reel diameter | mm | 900 | 800 | 700 | 560 | 400 |
| Draw passage | time | 9-12 | 10 | 9 | 10 | 10 |
| Incoming dia | mm | Φ14-8 | Φ10-8 | Φ8-6.5 | Φ6.5-5.5 | Φ14-8 |
| Outgoing dia | mm | Φ5-3 | Φ4-3 | Φ3-2.5 | Φ2-1.8 | Φ1-0.8 |
| Wire darwing line | m/min | 300 | 360 | 480 | 720 | 840 |
| Incoming strength | Mpa | ≤1300 | ≤1300 | ≤1300 | ≤1300 | ≤1300 |
| Total compressibility | % | 87.24-85.94 | 84-85.94 | 85.94-85.21 | 90.53-89.29 | 87.24-84 |
| Average compressibility | % | 20.48-19.58 | 18.42-19.58 | 19.58-19.13 | 21.00-20.02 | 18.61-16.74 |
| Single motor power | Kw | 110-90 | 90-55 | 75-55 | 37-22 | 15-7.5 |
Send Inquiry to This Supplier
Business Type
Manufacturer, Trading Company
Year Established
2002
Factory Size
10,000-30,000 square meters
Total Employees
11 - 50 People
