Specifications
1. Canmax road marking machine LXD320 senior hand push fusing2. Heating method: petroleum liquefied gas

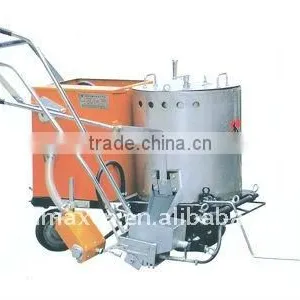

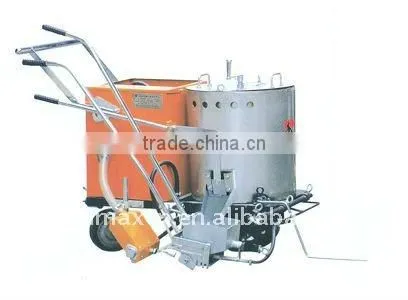

CANMAX ROAD MARKING MACHINE LXD320 SENIOR HAND-PUSH FUSING
1 Hand-push fusing road marking machine is key equipment of fusing index line construction,and it finishes the index line construction cooperating with heat kettle.
2 The equipment abopts specially-produced high precision cast iron marking scoop,in order to ensure index line’s even edge,head,thickness,and pretty line style.Moreover,other characteristics such as that the grounding kinfe can apply to road surface of different conditions,beading automated broadcasting machine is equipped with timing and buffering facility,specific index line constuction has fast speed,easy operation and convenient maintenance,should also be ensured.
.
TECHNICAL PARAMETER
1.Coating color tank:two-layer stainless steel holding and heating tank,capacity 100kg,inserting manual agitating device,demountable device
2.Micro glass bead storing box:10kg per box

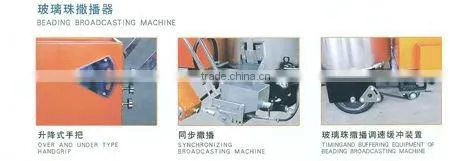

3.Micro glass bead broadcasting machine:synchronous interface broadcasting,equipped with timing and shift device

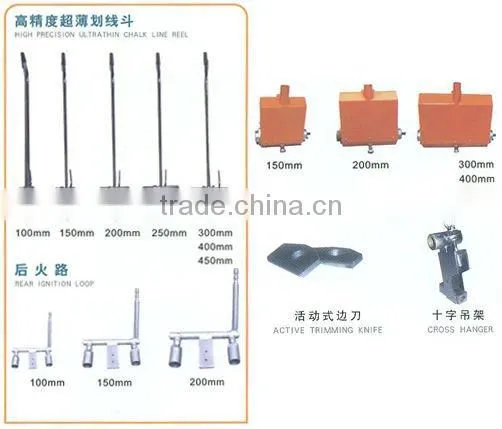

4.Making scoop:produced with high-precision ultrathin materials,drag structure,standard positioning 150mm
5.Grounding kinfe:hard alloy,equipped with eccentric sleeve,index line’s thickness can be adjusted from 1mm to 2.5mm
6.Rubber tire:lead alloy wheel nave,produced with head resisting rubber,tail pulley is equipped with loccalize which can make the car advance alone a rectilinear direction
7.Heating method:petroleum liquefied gas
8.Index line width:100/150/200/300/400/450mm change scribing scoop of different scales according to the project requirement
9.Dimension and weight:1320×850×1000mm
10. Net weight:135kg
