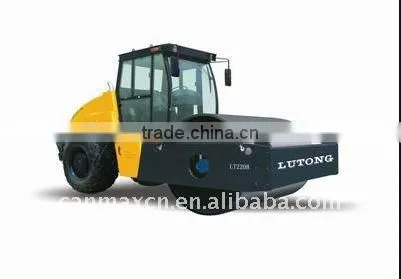

Lutong Road Roller LTS314H

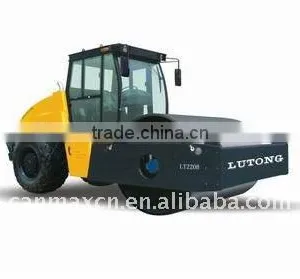

Lutong Road Roller LTS314H thumbnail-1
Lutong Road Roller LTS314H photo-1
US$ 82,000 - 105,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Single Drum Roller
Place of Origin:
Shanghai, China
Contact Supplier Request Quote Chat Now
Shanghai Canmax Electronic And Mechanical Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Any port of China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Single Drum Roller
Place of Origin Shanghai, China
Brand Name Lutong
Model Number LTS314H

Specifications

1. Lutong road roller LTS314H
2. Hydraulic vibratory roller is manufactured according to the international advanced technology

Lutong road roller LTS314H


Hydraulic vibratory roller is manufactured according to the international advanced technology and by use of imported components from abroad. The machine is super heavy-duty vibratory roller, possesses a great working mass and strong centrifugal force. It is the best compaction equipment of high quality and hegh effect in the large-scale mechanized construction. This machine is suitable for non-cohesive materials, such as graves, macadam, macadam-aggregate mixtures and sandy soil etc. Also it can effect good compaction in cohesive material, There-fore the machine an ideal equipment for expressway. mining road, embankment, sea port and industrial sites.
Main Features
1 Motor: CUMMINS 6BTA5.9 extra-pressure diesel engine, have huge power man reserving co efficiency, which comply with the operating conditions above 4000 meters altitudes.
2 Total hydraulic pressure, rear wheel drive, frequency and radiation conversion, articulated direction change, two stepless speed changes, advanced technology; block the oil supply to brake the vehicle, safe and reliable.
3 Streamline outline, circular windshield glass and curvy hood form a unique style.
4Hydraulic pump and vibrating motor are of the 90 series made by the American manufacturer SAUER.

Main Technical Parameters
    LTS314H LTS316H LTS318H LTS320H LTS322H
Operating mass Kg 14000 16000 18000 20000 22000
Static linear load N/cm 342 378 390 410 430
Vibration amplitude mm 1.8/0.9 1.0 2.0 0.95 1.9
Vibration frequency Hz 28/35 28/35 28/35 28/35 28/35
Centrifugal force kN 290/180 320/180 375/270 395/290 410/300
Travel speed km/h 12 11 11 11 11
Grade ability % 30 30 30 30 30
Turning radius mm 7000 7500 7500 7500 7500
Overall dimension mm 6100x2330
x3050		 6100x2350
x3050		 6100x2350
x3050		 6100x2350
x3000		 6100x235
0x3000
Vibration round width mm 2100 2100 2100 2100 2100
Wheel base mm 3160 3160 3160 3160 3160
Diesel model kW 110 110 132 132 132
Diesel power   6BT5.9 6BTA5.9 6BTA5.9 6BTA5.9 6BT5.9
