Specifications
1).stainless steel steam jacketed kettle
2).Internal and external surface polishing
3)material:SS304 & 316L
4)Capacity: 50~5000L

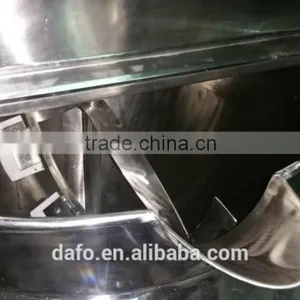

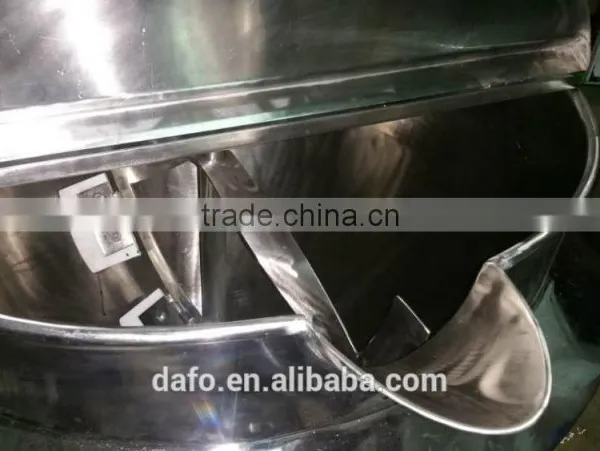

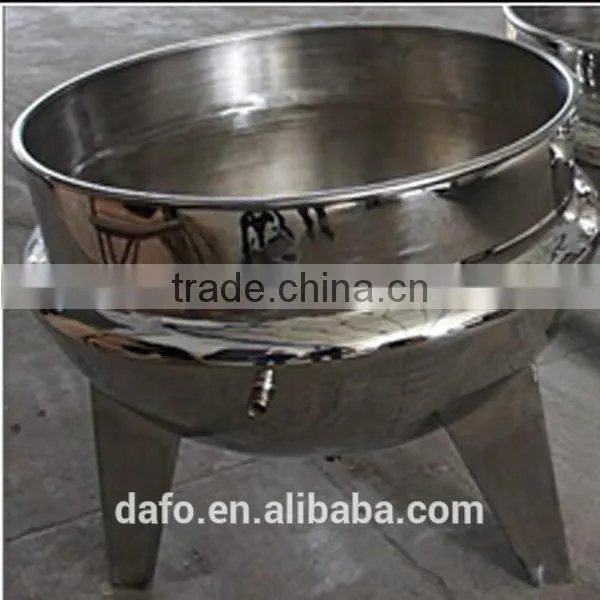

Stainless steel steam jacketed kettle :
The steam jacketed cooking kettle is mainly used for food, candy, soup, meat, milk, porridge, pharmacy and chemical industry cooking and boiling. We can add the mixer, edge & bottom scraper, cover according to your need. The kettle has tilting type and stationary type. The steam jacketed kettle can be heat by gas, steam(boiler) or electric. Generally, the bigger model can choose stationary type and by steam heating.
The steam jacketed kettle equiped with pressure gauge, safty valve and electric control box. Both inside and outside of th bowl are made of stainless steel, which is resistant to corrosion and in accordance with GMP standard.
Technical parameter:
| Model | JK-50 | JK-100 | JK-200 | JK-300 | JK-400 | JK-500 | JK-600 | JK-800 | JK-1000 |
| Capacity | 50L | 100L | 200L | 300L | 400L | 500L | 600L | 800L | 1000L |
| Open Diameter(mm) | 560 | 700 | 800 | 900 | 1000 | 1100 | 1200 | 1300 | 1400 |
| Depth | 400 | 450 | 530 | 630 | 680 | 730 | 780 | 830 | 900 |
| Heating area(m2) | 0.40 | 0.58 | 1.12 | 1.42 | 1.75 | 2 | 2.3 | 3.2 | 3.9 |
| Heaing pipe power | 1kw*3 | 3kw*3 | 5kw*3 | 6kw*3 | 6kw*3 | 8kw*3 | 8kw*3 | 9kw*3 | 10kw*3 |
| Conduction oil | 25L | 36L | 45L | 60L | 70L | 80L | 100L | 200L | 250L |
| Working pressure | Equal and less than 0.09Mpa | ||||||||
| Mixing speed | 36r/min | ||||||||
| Mixer power | 0.3kw | 0.55 | 0.75 | 1.1 | 1.1 | 1.5 | 1.5 | 2.2 | 2.2 |
Our company’s advantages over other companies:
Advanced Technology Co., Ltd Wenzhou is the a professional Stainless steel Mixing Equipment,Tank Pressure Vessels,Filters,Beer equipment and brewing technology supplier, who can professionally design, research and develop, and manufacture these equipment.
We can provide clients onestop service from design, layout, to finished products. Its main business includes beer equipment, self brewing equipment, hotel beer equipment, draft beer dispenser, school laboratory equipment, etc. We mainly provide the capacity 500L/DF, 1000L/DF, 2000L/DF, 3000L/DF, 5000L/D,10000L/D,20000L/D etc.
Our staff of Sales and Technical Support is available to help you in selecting the right protection for your application as well as to provide you with Samples of our products for evaluation. At Advanced Tech., we are committed to providing the Highest level of customer service, Competitive pricing, Speedy delivery and a Comprehensive, cutting-edge product offering. Our ultimate goal is your satisfaction.
Pre-sale service:
1. Free of making offers, craft and technical guidance.
2. We can provide company’s qualification certification and the drawings.
3. We can also make customized products according to customer’s needs.
After-sale service:
1. We provide long-term after-sale service.
2. Meanwhile, you can call or e-mail to consult any relevant questions since we have a special line of after-sale service. Or you can communicate online and solve the problems.
