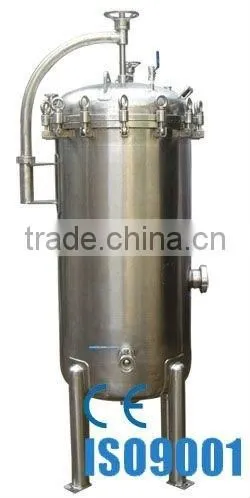

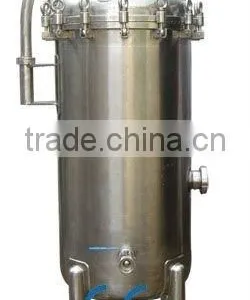

Factory supply SUS304 or SUS316L industrial-grade precision large capacity filter vessels
The ideal filter housings for optimum convenience and savings! Flow Max® jumbo filters are designed to accept “jhenten” cartridges for easy installation and replacement. Filter housings are constructed using 316L stainless steel, and are rated for pressures to 150 psi. Pipe fittings on single cartridge models are 2” MNPT, with pressure gauges installed on inlet and outlet fittings. Convenient, band clamp lid closure is easy, safe and secure. Protective poly coat over stainless steel is standard finish. Electro polishing is available by special order.
Replacement cartridges are available in a wide range of micron ratings.
Maximum Operation Parameters
Maximum Operation Pressure: .............150 PSI( 10 Bar)
Maximum Operation Temperature:........110 ºC
Pressure Tolerance on Weld:.................0.85
Features
• Housings accept “jumbo” cartridges for optimum convenience!
• Heavy-duty stainless steel construction for durability
• 316L stainless steel for greater resistance to chemical attack
• Band clamp lid closure is convenient, easy and secure
• Pipe fittings are readily accessible for easy installation
• Pressure gauges are installed on pipe fittings (single cartridge models)
• Superior sealing provided by threaded compression cap & stand-off ring
• Heavy duty mounting legs are standard
• Electro-polishing is available by special order
• Pressure ratings to 300 psi available Adjustable compression cap
• 6 models available for a wide range of flow rates Provides superior sealing at both cartridge ends.
• Swing bolt & davit closure on 3, 5 and 8 cartridge models

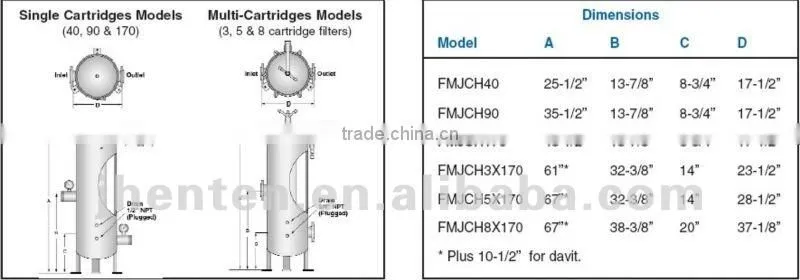

Standard DesignSpecifications
Main Parameters
Model No. |
Max. Flow |
Cartridge Model |
Pipe Size |
Drain Size |
Ship Weight |
FMJCH40 |
50 GPM |
“40” (1) |
2” MNPT |
1/2” |
31 lbs. |
FMJCH90 |
100 GPM |
“90” (1) |
2” MNPT |
1/2” |
56 lbs. |
FMJCH170 |
150 GPM |
“170” (1) |
2” MNPT |
1/2” |
62 lbs. |
FMJCH3X170 |
450 GPM |
“170” (3) |
4” flange |
3/4” |
375 lbs. |
FMJCH5X170 |
750 GPM |
“170” (5) |
6” flange |
3/4” |
575 lbs. |
FMJCH8X170 |
1200 GPM |
“170” (8) |
8” flange |
3/4” |
600 lbs. |
WENZHOU JHENTEN MACHINERY CO.,LTD
A Professional Manufacturer of Stainless Steel Vessels
Jhen Ten carries on traditional Japanese production skills and latest Japanese industrial technology to produce filtration products and all kinds process machinery.
In addition to the introduction of new manufacturing methods and the purchase of advanced welding equipment, we are also dedicated to researching the improvement of quality, function and usage life of our products. We have been meeting global demand of high quality &technical support to our clients.Our products cover from all kinds sanitary filter,cartridge filter, bag filter ,mixing tank ,storage tank etc,which have been applied into fields of pharmacy, food & beverage, biological engineering, lab solution laboratories, mineral water, liquor and cosmetics.
No matter the functions, data presentation, material use, welding techniques, QC, or the look of our products have gone through careful design and are strictly comply with ISO9001 and CE standard system.Besides We have obtained the sanitary license and honour of high quality&honesty from authority.
