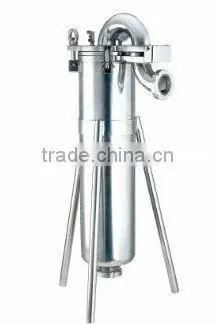

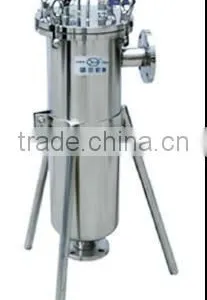

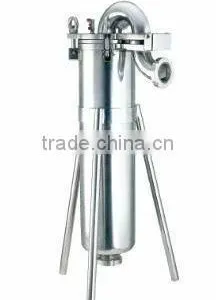

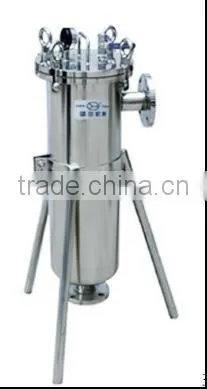

Help CenterFactory Supply SS304 SS304 Large Capacity Stainless Steel Bag Filter
Related Products
-
Sell Well CE Cartridge Air Filter,industrial-grade Precision, Hepa Fitber Air FilterNegotiableMOQ: 1 Set -
Cheap Price Sanitary Tubular Cartridge Filter, Large Capacity Stainless Steel FilterUS$ 100 - 1,000MOQ: 1 Set
-
Factory Supply Large Capacity Industrial-grade Precision Stainless Steel FilterUS$ 100 - 500MOQ: 1 Set
-
Factory Outlets Industrial Batch Cartridge Filter, Excellent Quality Stainless Steel FilterUS$ 49 - 99MOQ: 1 Set
-
Manufacturers High Quality Tubular Stainless Steel FilterUS$ 80 - 200MOQ: 1 Set
Bag Filter Housing Features
Top inlet with liquid flow through cover
Sizes for #01 single or #02 double-length filter bags
Cover positively seals filter bag
Stainless steel basket
Flanged connections or other type
Maximum operating pressure of 150 psi
Maximum operating temperature of 400F with Viton® seals
Domed cover with swing bolts
Mounting legs to adjust vessel height
Type 304 or 316 stainless steel, or carbon steel,
Bag Filter Housing Available Options
Steam jacket
Electro polishing
Heavy Duty Bag Filter Housings
Applications that require the installation of gauges, vents or pressurized air connections are easily accommodated by two 1/4"NPT(BSP) threaded cover taps. 316 stainless steel construction means superior corrosion resistance and consistent performance, year after year. A smooth, mirror finish, makes it easy to completely clean the interior of the vessel.
Type No. |
7166-1P1S | 7166-1P2S |
| Filter Bag Size | #01 | #02 |
| Filter Area | 2.6 sq ft | 5.0 sq ft |
| Max. flow- Water* | 90 gpm (20T/H) | 180 gpm( 40T/H) |
| Maximum Operating Pressure | 150 psi | |
| Maximum Operating Temperature With Viton Seals | 400F | |
| Standard Inlet/Outlet | 2" | |
| Vent Ports 1/4" | 2 | |
| Drain 1/2" | 1 | |
| Number of Seals | 2 | |
| Surface finish |
Matt polished or mirror polish or Bead blasted |
|
| Material of Construction |
Stainless steel Type 304 or 316 or carbon steel |
|
| Bag Filter housing type |
| 1.Sideline Single Bag Filter |
| 2.Topline Single Bag Filter |

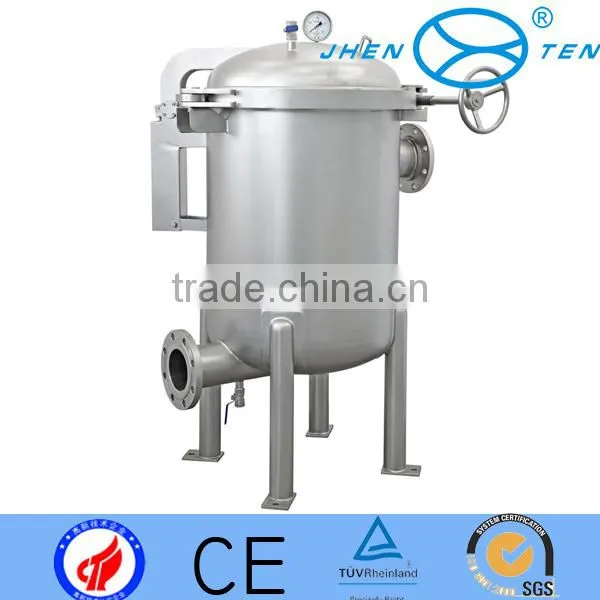

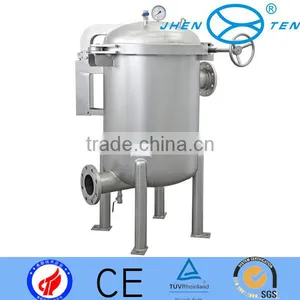

| 3.Multi Bag Filter |
| Bag Filter housing Specification | |
| Material: | SS304 SS316L 904L or lined |
| Bag Size | 1 2 3 |
| Inlet&outlet | DIN ANSI Tri clamp NPT |
| Seal media | BUNA N EPDM VITON SILCONE PTFE |
| Maximum Operating Pressure | 150psi |
| Maximum Operating Temperature | 400F |
| Surface Finish | Bead blasted or polished |
| Multi Bag Filter housing Information | ||||||||
| Specificatoins | 3Bags | 4bags | 6bags | 8bags | 9bags | 12bags | 17bags | 23bags |
| Inlet/outlet | DN80(3") | DN100(4") | DN150(6") | DN150(6") | DN150(6") | DN200(8") | DN250(10") | DN250(10") |
| Vent Valve | DN15(1/2") | |||||||
| Pressure Gauge | DN15(1/2") | |||||||
| Drain | DN32(11/4") | |||||||
| Maximum Operating Pressure | 150PSI | |||||||
| Maximum Operating Temp | 400F | |||||||
| Material of Construction | SS304 or SS316L | |||||||
| Surface Finish | Bead blasted or polished | |||||||
Bag Filter Housing drawing for refering
