CE ISO certificate engine powered diesel hydraulic power pack for driving
Choose GEC,choose high quality!
Model: GHPP14/68-22D
General type hydraulic power pack is used for driving hydraulic cylinder, hydraulic motor and other hydraulic
actuator. Submersible power pack with motor on the top of power pack and pump inside the tank, thus get a
compact structure and small volume.
It’s widely used as hydraulic driving for engineering machinery, construction machinery and mining machinery.
Working principle:
Motor or Diesel engine make the oil pump rotate, and the pump absorbs and supplys oil from the oil tank, which can convert the mechanical energy into pressure energy of hydraulic oil. After adjusting the direction, pressure
and flow through manifold block, hydraulic oil enters the cylinder or oil motor of hydraulic device by means of the
outside line, thus controlling the transformation of the actuator's direction, the power and the speed to make all
kinds of hydraulic device work.
Technical data :
Model |
GHPP14/68 -22D |
Rated work pressure |
14MPa |
Rated output |
68L(18gallon)/min |
Rated Diesel Rev. |
2200 rpm |
Diesel Power |
22Kw/30Hp |
Diesel Model |
Changchai with water cooling(Steam type) |
Overall Dimension |
1750x1300x1500mm |
Weight |
550Kgs |
Features:
1. Changchai steam type water cooling diesel engine;
2. With Wheels, move easily;
3. Powerful, Versatile, Stable and Reliable
4. Suitable for rough work circumstance
5. Low noise, fine construction, high quality
6. Energy saving: perfect design of circuit
7.Tubing connection between hydraulic pump and hydraulic motor, each other is not subject to strict limits on
space layout
8.Because of oil as working medium, the components of relative motion between surface can self lubrication, wear small, long service life
9. Each pump can be used as a mobile station, without any pumping station project;
10. Operate and control simply, high degree of automation

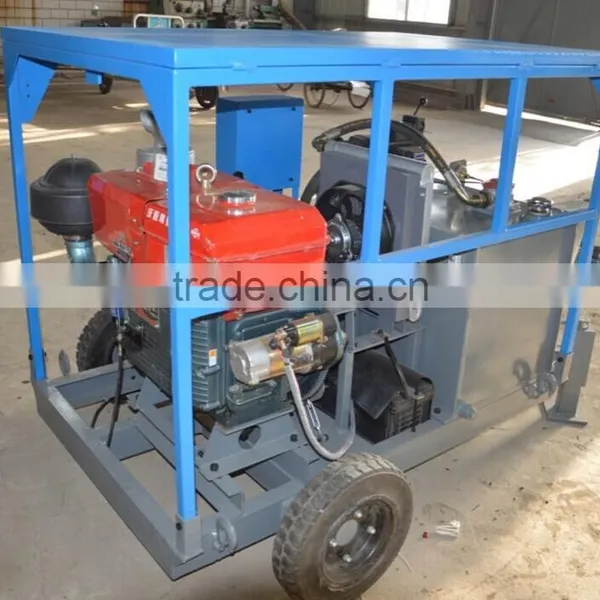

Pictures in different angles:
Packing:
Why to choose us?
1. OEM Service: hydraulic power pack can be designed as your needs.
2. After-sale service: One year warranty, but wearing parts exclude.
3. We not only have advanced processing equipment, but also equipped with a consummate testing facilities and strong technical force.
4. Specialized in manufacturing all kinds hydraulic cylinders, hydraulic station, hydraulic pump.
Certification of our company:
Factory:
We have other diesel hydraulic power pack and electric hydraulic power pack for option. Also
could according to your demands to customize.
