Choose GEC, choose high quality!

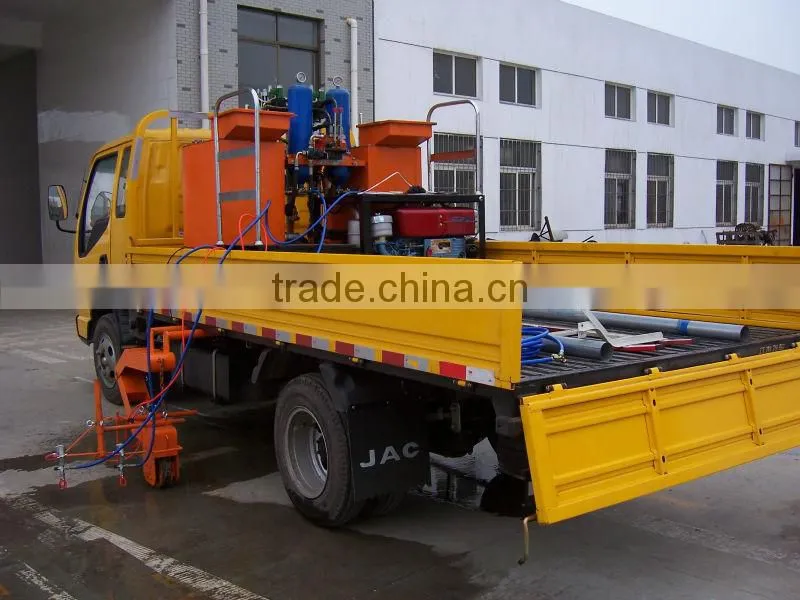

GD18L-2 Double cylinder and pump cold paint truck-mounted road marking machine
The truck-mounted double cylinder and pump cold paint road marking machine adopt many good quality parts such as Honda engine, Simens automatic break line machine and manual controller.
Technical parameter:
Item |
Technical data |
Maximum flow rate |
30L |
Maximum work pressure |
30Mpa |
Weight of facility |
820kg |
Width of spray |
50-900mm |
Thickness of spray |
0.2-0.6mm |
Dimension |
1530*1230*1380mm |
Four guns can spray at the same time by truck moving | |

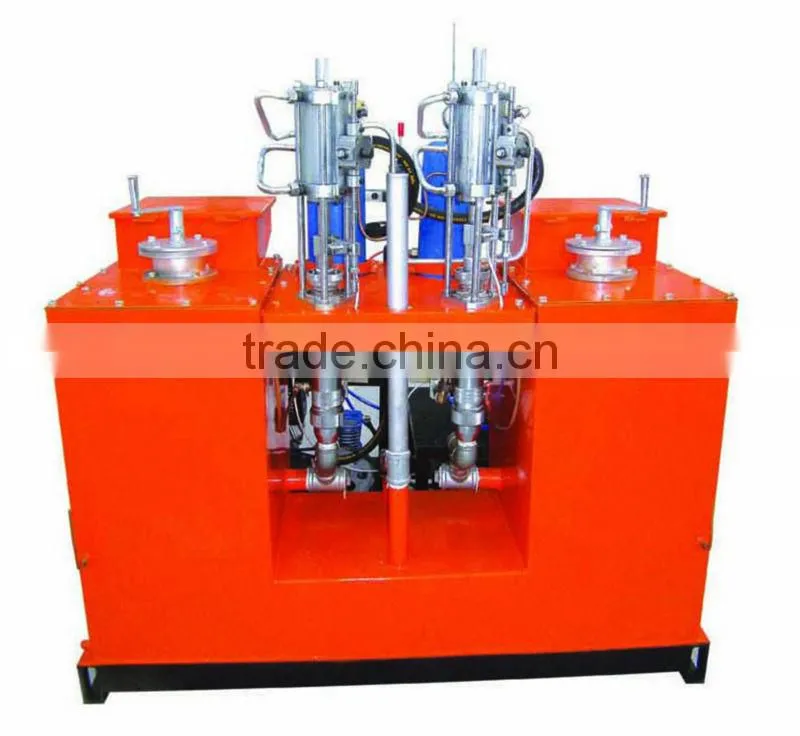

Main engine configuration
1. 270 Honda engine
2. Gear pump
3. Oil tank
4. Pressure regulator
5. Accumulator
6. Reverser
7. Reversing oil tank
8. Paint high pressure pump
9. Strainer
10. Air compressor

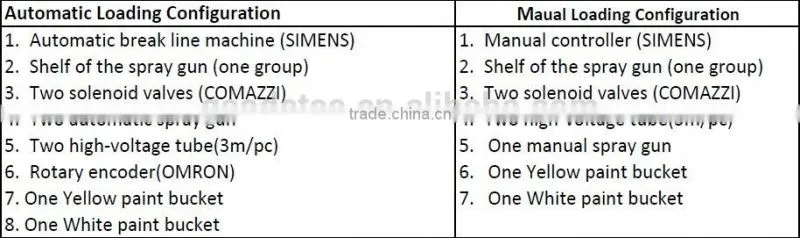

Truck loading configuration
