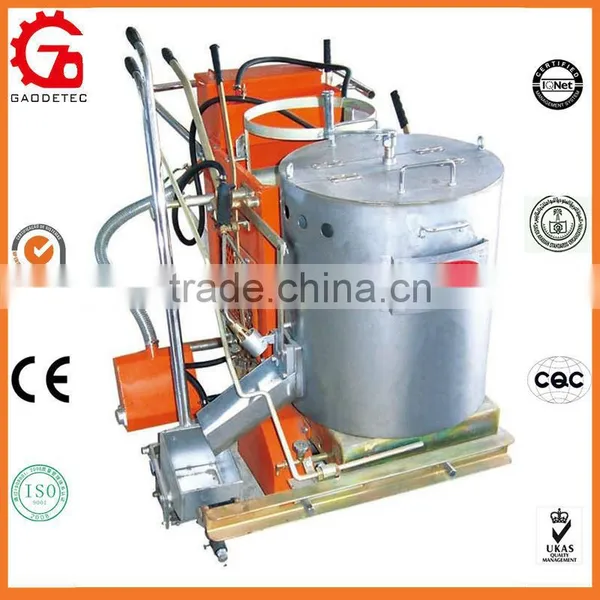

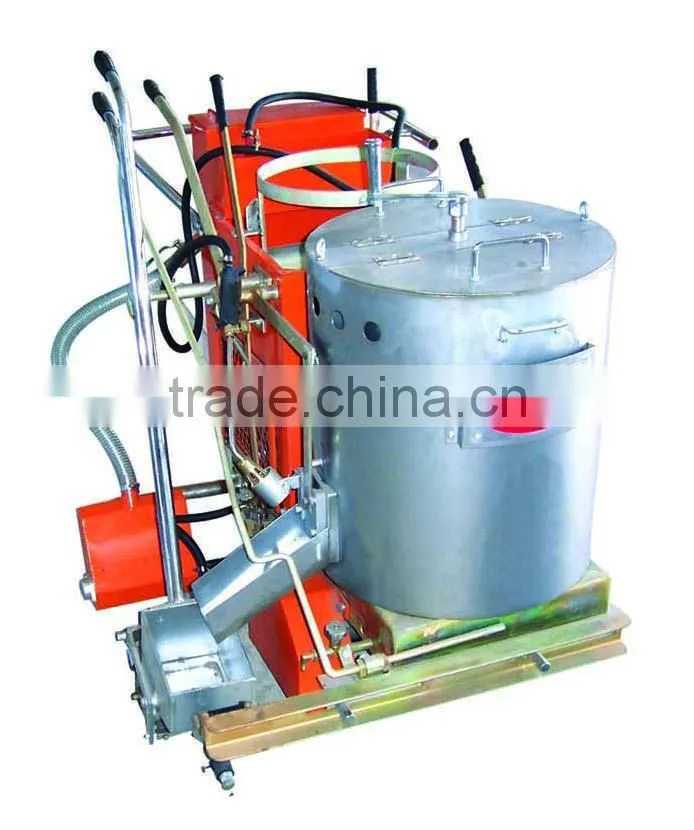

GD320S Self propelled thermoplastic road marker
Brief introduction:

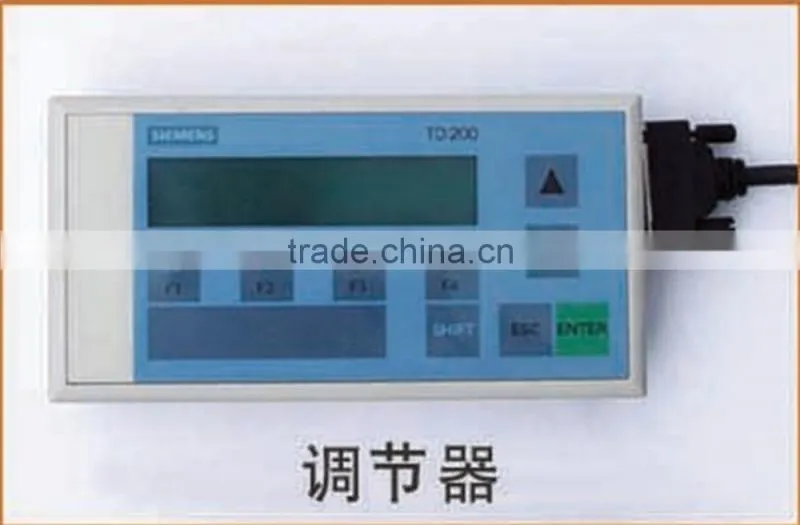

GD320S Self propelled thermoplastic road marker adopt Germany intelligent programming controller and Humanized control panel, and match with stepless walking system, which improve the working efficiency.
This road marker is the main equipment for thermoplastic road line marking work, marking line when work with thermoplastic hot melt kettle. This road marker adopts specially designed high precision cast iron marking bucket to ensure index line’s even edge, head, thickness and tidy lines.
The grounding knife can apply to road surface of different conditions. There is timing and buffering facility in glass beading automatic broadcasting machine, which made this machine has some features such as high efficient, stable performance, easy operation, and convenient maintenance.
GD320S Self propelled thermoplastic road marker parameter:
Walk drive mode |
Automatic oil and infinitely variable speed |
Walk speed |
>400m/h |
Max. Gradeability degree |
15° |
Coating capacity |
100KG,two-layer stainless steel holding and heating tank, inserting manual agitating device, demountable device |
Glass bead tank capacity |
10KG/box |
Glass bead broadcasting machine |
Synchronizing interface broadcasting, equipped with speeder |
Shoe |
Made by high-precision ultrathin materials, drag structure, standard positioning 150mm |
Grounding knife |
Hard alloy, equipped with eccentric sleeve, index line’s thickness can be adjusted from 1mm to 2.5mm |
Rubber tire |
Lead alloy wheel nave, made by heat resisting rubber, tail pulley equipped with localizer which make the machine walk directly |
Marking width |
100,150,200,250,300,400,450mm,change shoe of different scales according to the project |
Heating method |
petroleum liquefied gas |
Dimension |
1320*820*1000mm |
Weight |
150KG |
