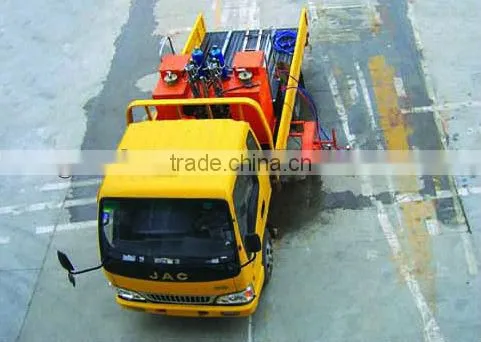

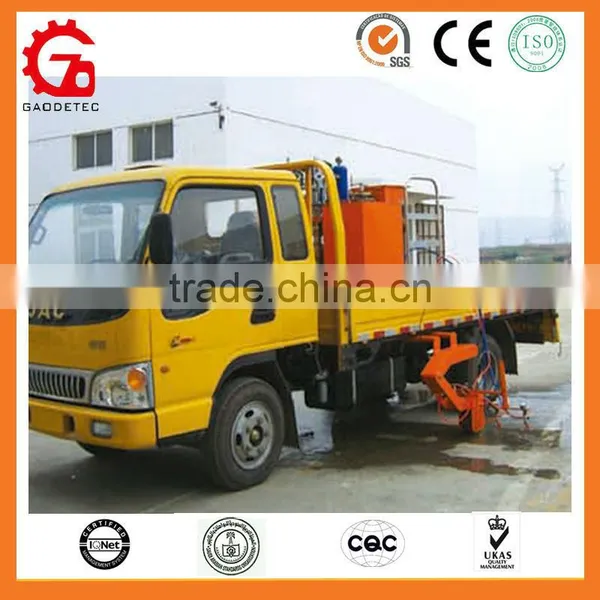

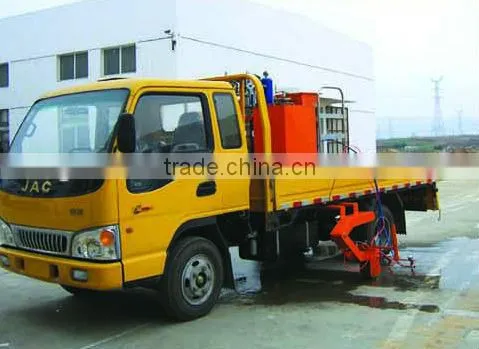

GD18L-2 Double cylinder and pump cold paint truck-mounted road marker
The truck-mounted double cylinder and pump cold paint road marker adopt many good quality parts such as Honda engine, Simens automatic break line machine and manual controller.
Truck-mounted double cylinder and pump cold paint road marker Technical parameter:
1. Maximum flow rate: 20L
2. Maximum work pressure: 30Mpa
3. Weight of facility: 450kg
4. Width of spray: 100-450mm
5. Thickness of spray: 0.2-04mm
6. Four guns can spray at the same time by truck moving
7. Dimension: 1530*1230*1380mm

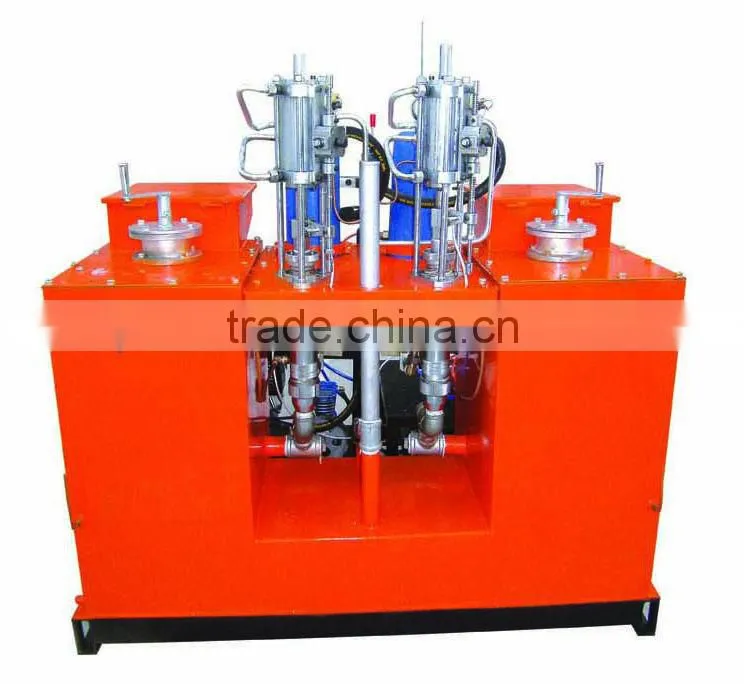

Main engine configuration
1. 270 Honda engine
2. Gear pump
3. Oil tank
4. Pressure regulator
5. Accumulator
6. Reverser
7. Reversing oil tank
8. Paint high pressure pump
9. Strainer
10. Air compressor
Truck loading configuration
1. Automatic break line machine (SIMENS)
2. Manual controller (SIMENS)
3. Shelf of the spray gun (one group)
4. 2 solenoid valves (COMAZZI)
5. 2 automatic spray gun
6. 2 high-voltage tube(6m)
7. Rotary encoder(OMRON)
