Specifications
drilling bits PDC cutter, PCD cutter buttons :1.100%virgin raw material.
2.factory produce direct
3.free online technic

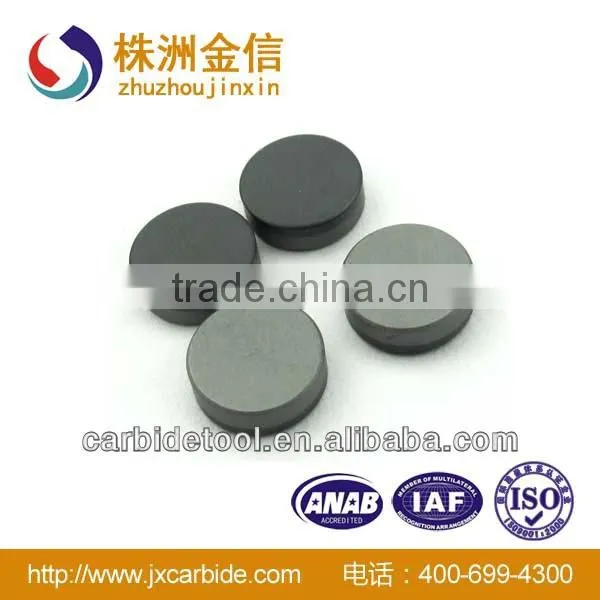

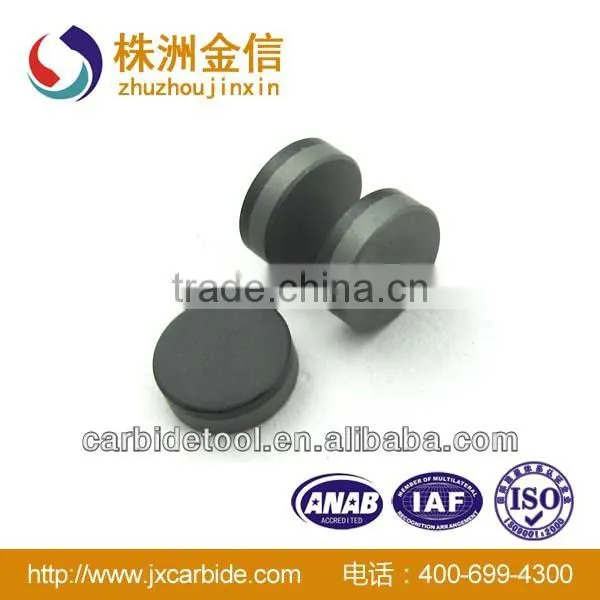

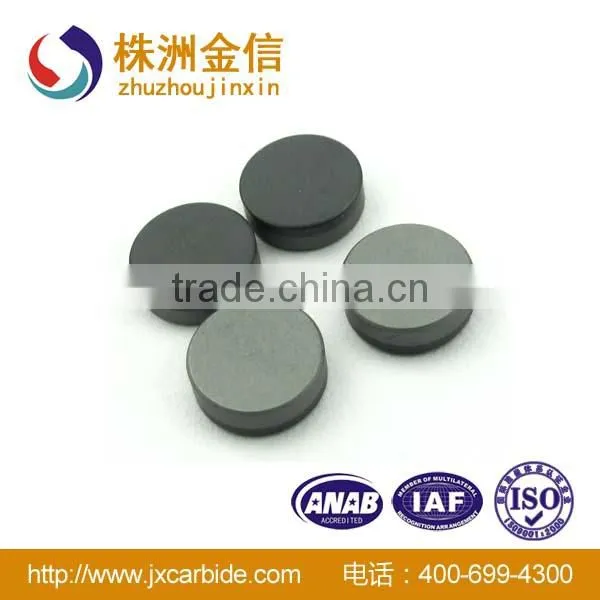

drilling bits PDC cutter, PCD cutter buttons
Grade |
Density (g/cm²) |
Hardness (HRA) |
T.R.S (N/mm²) |
Application
|
YK25 |
14.4 |
≥87.0 |
≥2400 |
Suitable for mining large drill , chisel tooth into hard rock. |
YG11C |
14.2 |
≥87.0 |
≥2360 |
Suitable for inlay manufacturing heavy duty rock drills with drill,such as the deep-hole drilling, rock drill trolley with a bit. |
| 1.JX Series: Flat interface PDC, suitable for drilling bits for low and medium hard rock formations. | ||
| Product Code | Specification | |
| D(mm) | H(mm) | |
| JX 0804 | 8 | 4 |
| JX 0808 | 8 | 8 |
| JX 1304 | 13.3 | 4.5 |
| JX 1308 | 13.44 | 8 |
| Diamond layer at about 0.7mm | ||
| Product Code | Specification | |
| Diameter ( mm ) | Height ( mm ) | |
| JXI 0803 | 8 | 3.53 |
| JXI 0808 | 8 | 8 |
| JXI 1004 | 10 | 4.5 |
| JXI 1008 | 10 | 8 |
| JXI 1304 | 13.3 | 4.5 |
| JXI 1308 | 13.44 | 8 |
| JXI 1313 | 13.44 | 13.2 |
| JXI 1610 | 16 | 10 |
| JXI 1613 | 16 | 13.2 |
| JXI 1908 | 19.05 | 8 |
| JXI 1910 | 19.05 | 10 |
| JXI 1913 | 19.05 | 13.2 |
| JXI 1916 | 19.05 | 16.31 |
| JXI 1919 | 19.05 | 19 |
drilling bits PDC cutter, PCD cutter buttons
best price of PDC cutters for mining drilling bits
Zhuzhou Jincin Cemented Carbide Co., Ltd specializes in manufacturing a series of
Tungsten Carbide products, such as:
Carbide Saw Tips
Carbide Buttons for Rock Bits
Carbide Inserts for Road Milling, Plaing Bits
Carbide Inserts for Coal Cutter Picks
Carbide Inserts for Snopw Plow Blades
Carbide Inserts for Mining Tools
Carbide Round Rods (dia from 1.0 to 25.4 mm)
Carbide Tubes
Carbide tips for Debarking Bits
Carbide Brazed Inserts or Tips
Carbide pins
Tire studs
Carbide Blanks
Carbide Wear-Parts, etc
All of our tungsten Carbide Products are made from the high-purity Original/Virgin Raw Materials and HIP/Sintered, with very high quality and excellent performances. Also the price is very competitive.
More items & details about our products/company can be found in our shop.
Please enjoy your purchasing time.
Skype: Chinacarbidelili
