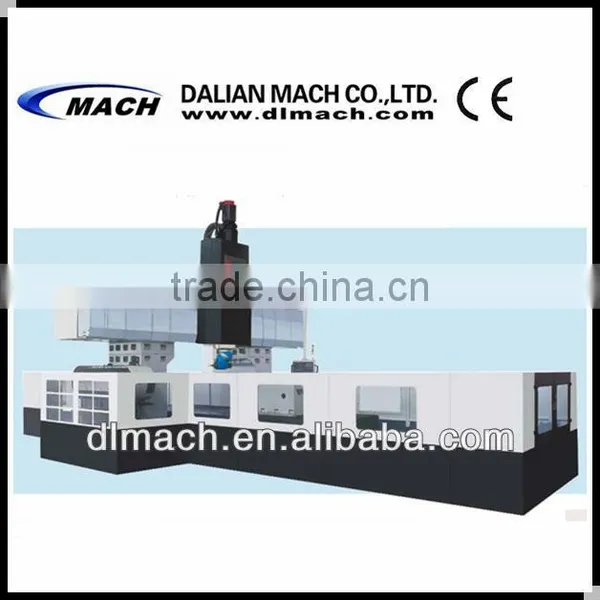

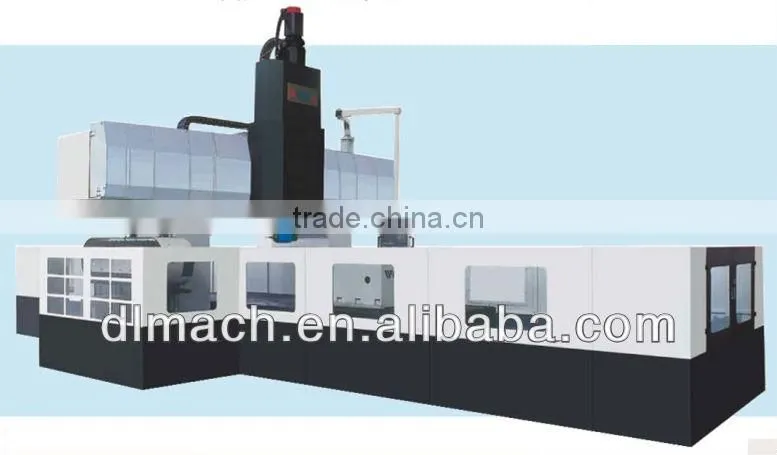

GMC2060u CNC Gantry-type five-face machining center
1.Specification:
Specification |
UNIT |
GMC2060u |
|
X travel |
MM |
6300 |
|
Y travel |
MM |
2500 |
|
Z travel |
MM |
1100 |
|
Table size(L×W) |
MM |
6000×2000 |
|
Max. load of table |
KG |
20000 |
|
Number/Width/Distance of T slot |
QTY/MM/MM |
9/28H8/225 |
|
Gantry effective width |
MM |
2600 |
|
Max. gantry passing height |
MM |
1650 Universal milling head is in the side position |
|
1150 Milling head vertical is in the above position | |||
Distance from spindle nose to worktable surface |
MM |
150-1250 |
|
Distance from horizontal spindle axis to worktable surface |
MM |
180-1280 |
|
45°Universal milling head(A axis and C axis) |
Dividing range |
Deg |
A ±180°,C ±360° |
Min. Dividing interval |
Deg |
2.5 |
|
Positioning accuracy |
Sec. |
15 |
|
Repeat positioning accuracy |
Sec. |
5 |
|
Spindle taper(V/H) |
BT50 |
||
Main motor power |
KW |
18.5/22 |
|
Spindle speed |
R/MIN |
30-3000 |
|
Spindle rated torque |
N.M |
235 |
|
Max. SPindle torque |
N.M |
280 |
|
Feed speed(X,Y,Z) |
MM/MIN |
1-4000/1-2000 |
|
Rapid feed speed(X,Y,Z) |
MM/MIN |
12000/8000 |
|
Positioning accuracy(X,Y,Z) |
MM |
0.04/0.032/0.025 |
|
Repeat positioning accuracy |
MM |
0.018/0.014/0.012 |
|
Overall dimension |
MM |
16000×7500×5600 |
|
Machine weight |
KG |
58000 |
|
Standard configuration:
1.FANUC 0i CNC system
2.Chain-type tool magazine capability 32 tools
3.45° universal milling head
4.Advanced hydraulic unit
Optional configuration:
1. FANUC 31i or SIEMENS 828D CNC system
2. Chain-type tool magazine capability 40 tools
3.Automatic chip conveyor system
2. Parts of Machine:
3. About our company:
We are one of biggest manufacturer of producing CNC milling machine, Universal Milling Machine, CNC Lathe, etc in China. Our factory entered the top 8 machine tool builders in the world. Our universal milling machine sell to more than 100 countries and regions worldwide
...
