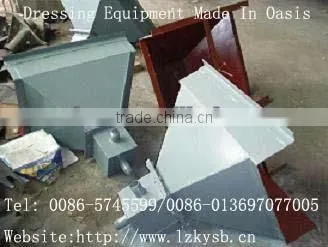

Hydraulic classification box

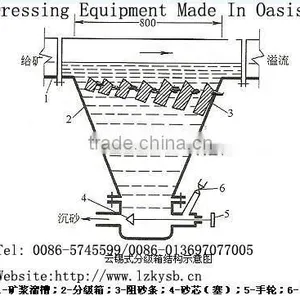

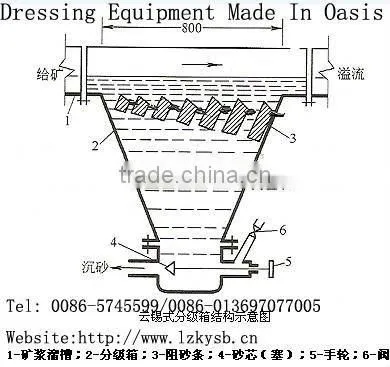

Hydraulic classification box is a cone angle iron box, there is an upper sand wedge blocking Article, the following classification Xiangdi valve fitted. Usually from 200 mm to 800 mm width of the graded series of boxes connected with ordinary sink is made from coarse-to-fine Grit Chamber discharged.
It is widely used in the hydraulic shaker before sorting grading operations, classification and distribution of mine to play the role of quantity in order to improve the sorting efficiency of shaking. Hydraulic classification box has a simple structure, easy maintenance, do not consume power, reliable performance, easy to operate, de-mud and so on.
Model |
YX-200 |
YX-300 |
YX-400 |
YX-600 |
YX-800 |
Resistance of sand quantity (Article) |
11 |
||||
Resistance of the length of sand(mm) |
180 |
280 |
380 |
590 |
790 |
Pai mine diameter(mm) |
25 |
||||
Increase in water pressure (kg/cm2) |
1-2 |
||||
Feed size(mm) |
2-3 |
||||
Feed density(%) |
20-25 |
||||
water(m/t) |
2-3 |
||||
Overall dimensions (mm) |
800×200 ×1000 |
800×300 ×1000 |
800×400 ×1000 |
800×600 ×1000 |
800×800 ×1000 |
Weight(kg) |
0.107 |
0.124 |
0.148 |
0.178 |
0.214 |
