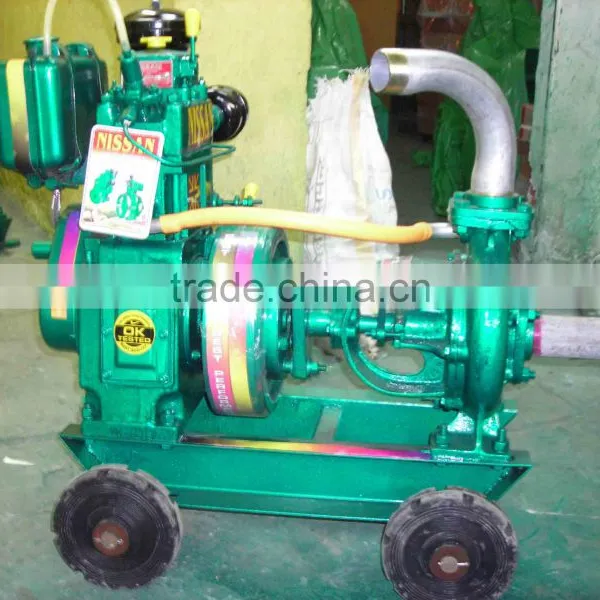

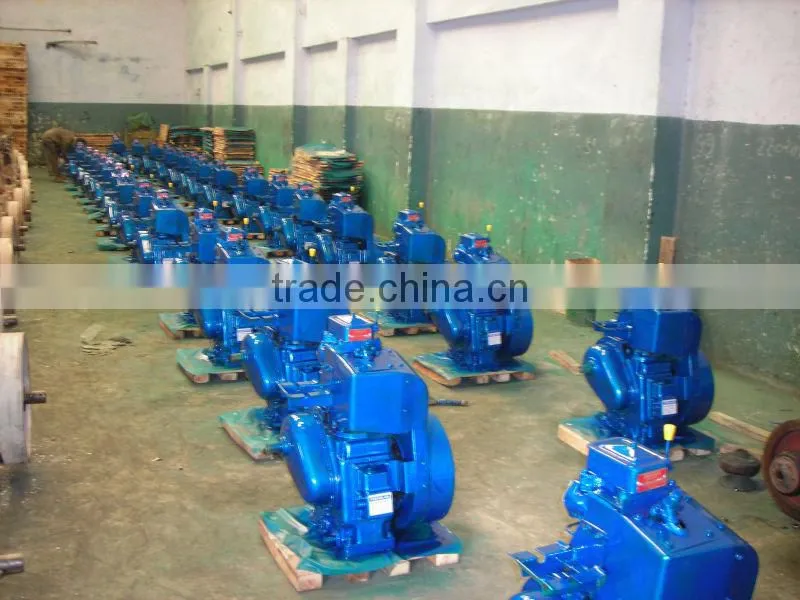

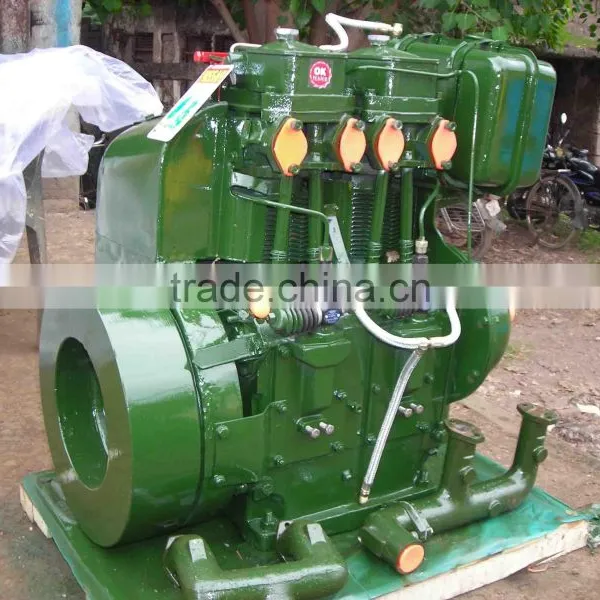

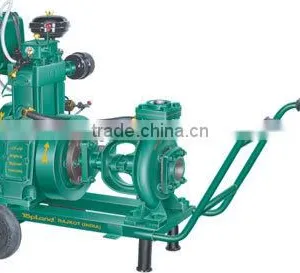

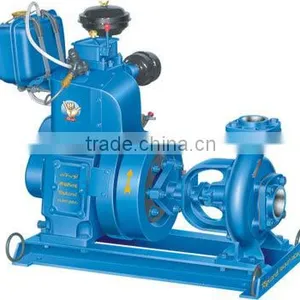

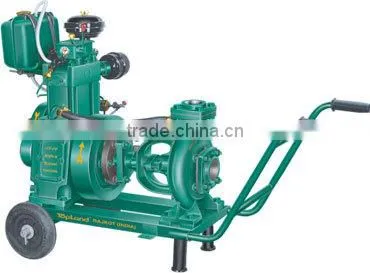

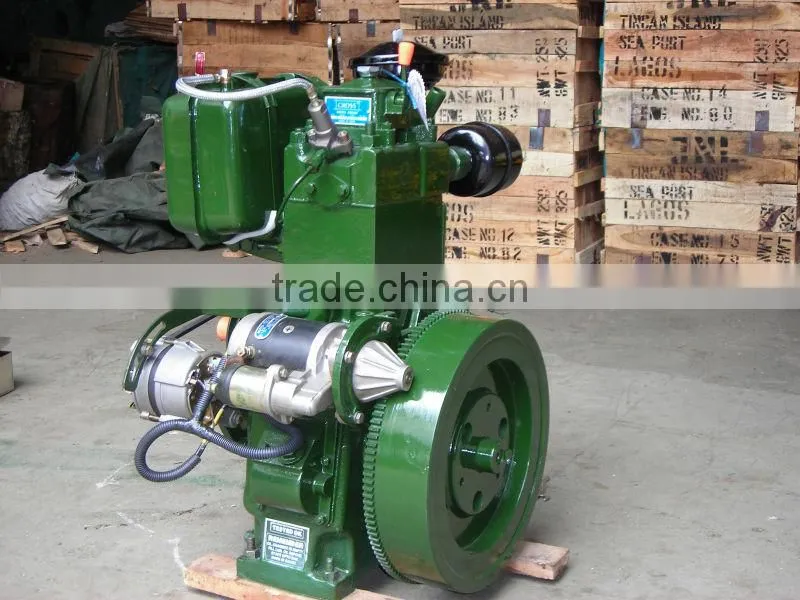

Help CenterPetter Type High Speed Diesel Engine
Related Products
-
10HP Diesel Engines for SyriaUS$ 250 - 1,500MOQ: 1 Twenty-Foot Container -
10HP Diesel Engines for SyriaUS$ 250 - 1,500MOQ: 1 Twenty-Foot Container
-
10HP Petter Type Diesel Engines for SyriaUS$ 250 - 1,500MOQ: 1 Twenty-Foot Container
-
10HP Petter Type Air Cool Diesel Engines for SyriaUS$ 250 - 1,500MOQ: 1 Twenty-Foot Container
-
10HP Petter Type Air Cool Diesel Engines for SyriaUS$ 250 - 1,500MOQ: 1 Twenty-Foot Container
Specifications
Mfrs and Exporters of Diesel EngineBest Quality of Air/ Water Cooled Diesel Engine
3.5 HP to 25 HP Diesel Engine

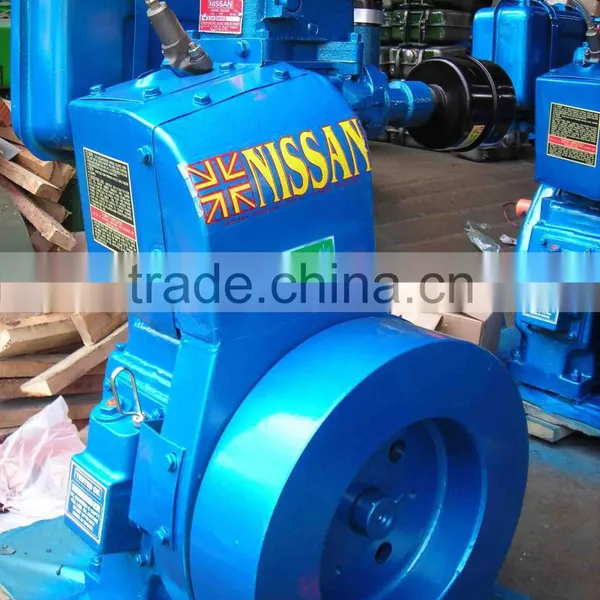

e are.. Leading manufacturer & exporter of Agricultural Diesel Engines and Spare Parts thereof and Corn Grinding Mills. Over 1,00,000 NISSAN DIESEL ENGINE holders outside India are completely satisfied.
We are in international market with an experience of two decades, with our own manufactured products diesel engines with famous brand name "NISSAN" and all spare parts thereof.. We manufacturer a wide range i.e. from 6 H.P. TO 20 H.P. Slow Speed ( Water Cooled ) and 3.5 H.P. TO 25 H.P. High Speed ( Water Cooled & Air Cooled ). Our DIESEL ENGINES could be used in the field of agriculture, and for many other purposes. viz.GENERATOR SETS etc.
Petter type Watr Cool
| Engine Type | MI-5W | MI6.5W | MI-75W | MI 8W | MI-10W | MI-12.5W | |
| Rated Power (as per IS:11170) | Kw/Bhp | 3.7/5.0 | 4.8/6.5 | 5.5/7.5 | 5.9/8.0 | 7.35/10.0 | 9.2/12.5 |
| Rated Speed | RPM | 1500 | 1500 | 1500 | 1500` | 1500 | 1500 |
| No.of Cylinder | One | One | One | One | One | One | |
| Type Bearing | Brass/TRB | Brass/TRB | TRB | Brass/TRB | Brass/TRB | Brass/TRB | |
| Bore | mm | 80 | 85 | 87.5 | 95 | 102 | 114.3 |
| Bore x Stroke | mm | 110 | 110 | 110 | 110 | 116 | 116 |
| Compression Ratio | 1 | 16.5:1 | 17.9:1 | 15.9:1 | 15.6:1 | 16.6:1 | 15.7:1 |
| Fuel Tank Capacity | Litre | 9 | 9 | 9 | 9 | 9 | 9 |
| Engine Bare Weight | Kg. | 149 | 149 | 150 | 168 | 192/182 | 205/191 |
| Gross Weight Packing | Kg. | 205 | 205 | 205 | 225 | 250/235 | 260/248 |
| Packing Case Size(LXWXH) | Cm | 66x67x89 | 66x67x89 | 66x67x89 | 66x67x89 | 66x67x89 | 66x67x89 |
Pettr type Aircool
Engine Type |
|
MI-5A |
MI6.5A |
MI-7A |
MI 7.6A |
MI-10A |
|
Rated Power (as per IS:11170)
|
Kw/Bhp |
3.7/5.0 |
4.8/6.5 |
5.1/7.0 |
5.5/7.5 |
7.35/10.0 |
Rated Speed |
RPM |
1500
|
1500 |
1500 |
1500` |
1500 |
No.of Cylinder |
|
One |
One |
One |
One |
One |
Type Bearing |
|
TRB |
TRB |
TRB |
Brass/TRB |
Brass/TRB |
Bore |
mm |
80 |
85 |
87.5 |
95 |
102 |
Stroke |
mm |
110 |
110 |
110 |
110 |
116 |
Compression Ratio |
16.5:1 |
17.9:1 |
15.9:1 |
15.6:1 |
16.6:1 |
|
Fuel Tank Capacity |
Litre |
9 |
9 |
9 |
9 |
9 |
|
Engine Bare Weight |
Kg. |
163 |
163 |
163 |
184/168 |
197/ 198 |
Gross Weight Packing |
Kg. |
220 |
220 |
220 |
240/225 |
250/235 |
Packing Case Size(LXWXH) |
Cm |
66x69x91.5 |
66x69 x91.5 |
66x69 x91.5 |
66x6991.5 |
66x69x91.5 |
