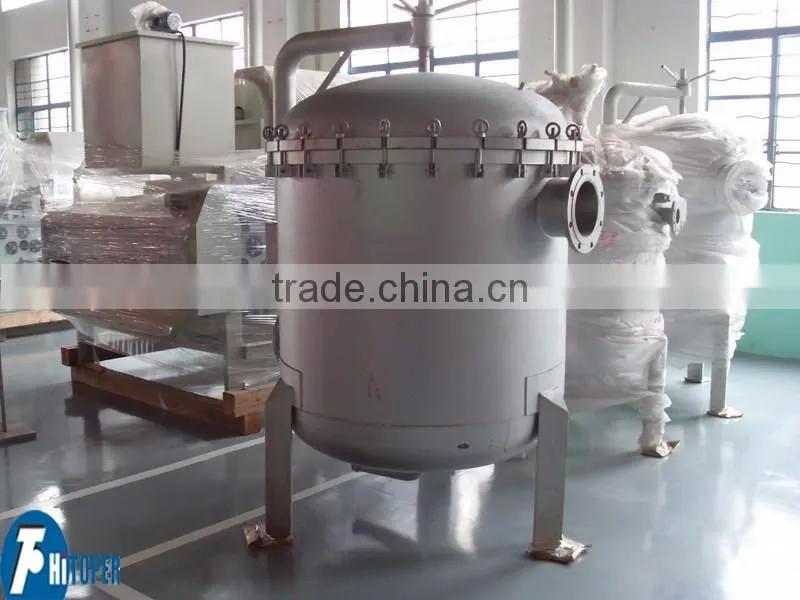

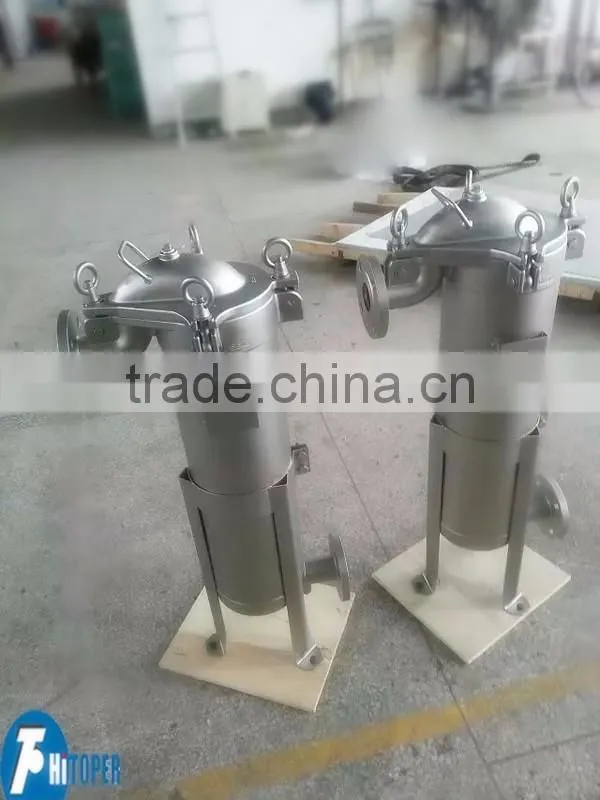

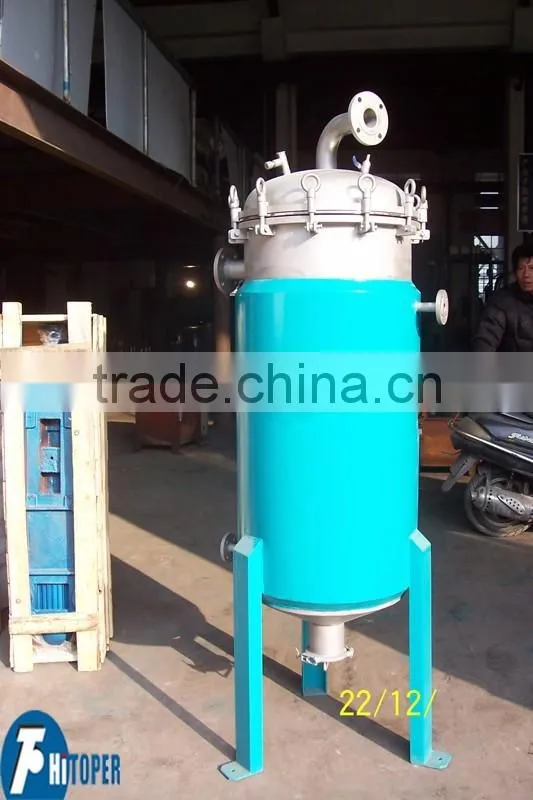

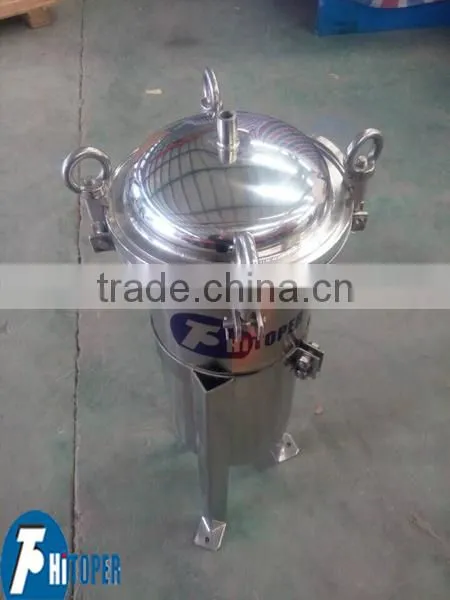

PP bag filter, liquid filter hot sale in 2016
Bag type filter is a kind of novel structure, small volume, flexible operation, energy saving, high efficiency, airtight work and adaptable widely multi-purpose filtration equipment.
Bag type filter is widely used in paint, beer, vegetable oil, medicine, cosmetics, chemicals, petroleum products, textile chemicals, photographic chemicals, plating solution, milk, mineral water, hot solvent, emulsion, industrial water, sugar water, resin, printing ink, industrial waste water, fruit juice, edible oil, wax, etc.
1. Material : SS304-SS316
2. Pressure : 0.5 Mpa
3. Consist of three parts: filter container, bearing bracket, and filter bag
4. Maximum stream flow : 70-840m3/h
Model number |
Code of bag size |
Bag quantity |
Filtering area (m2) |
Entrance/Exit size (mm) |
Operating pressure (kg/cm2) |
Max flow quantity (m3/h) |
DL-2P2S |
2 |
2 |
1.0 |
50 |
0.5 |
70 |
DL-3P2S |
2 |
3 |
1.5 |
50 |
0.5 |
100 |
DL-4P2S |
2 |
4 |
2.0 |
100 |
0.5 |
140 |
DL-5P2S |
2 |
5 |
2.5 |
150 |
0.5 |
175 |
DL-6P2S |
2 |
6 |
3.0 |
200 |
0.5 |
210 |
DL-7P2S |
2 |
7 |
3.5 |
200 |
0.5 |
245 |
DL-8P2S |
2 |
8 |
4.0 |
250 |
0.5 |
280 |
DL-10P2S |
2 |
10 |
5.0 |
250 |
0.5 |
350 |
DL-12P2S |
2 |
12 |
6.0 |
300 |
0.5 |
420 |
DL-14P2S |
2 |
14 |
7.0 |
300 |
0.5 |
490 |
DL-16P2S |
2 |
16 |
8.0 |
300 |
0.5 |
560 |
DL-18P2S |
2 |
18 |
9.0 |
350 |
0.5 |
630 |
DL-20P2S |
2 |
20 |
10.0 |
350 |
0.5 |
700 |
DL-22P2S |
2 |
22 |
11.0 |
350 |
0.5 |
770 |
DL-24P2S |
2 |
24 |
12.0 |
350 |
0.5 |
840 |
filter bags,

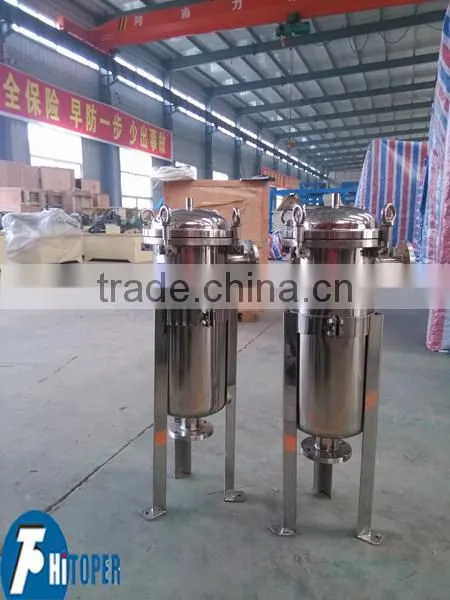

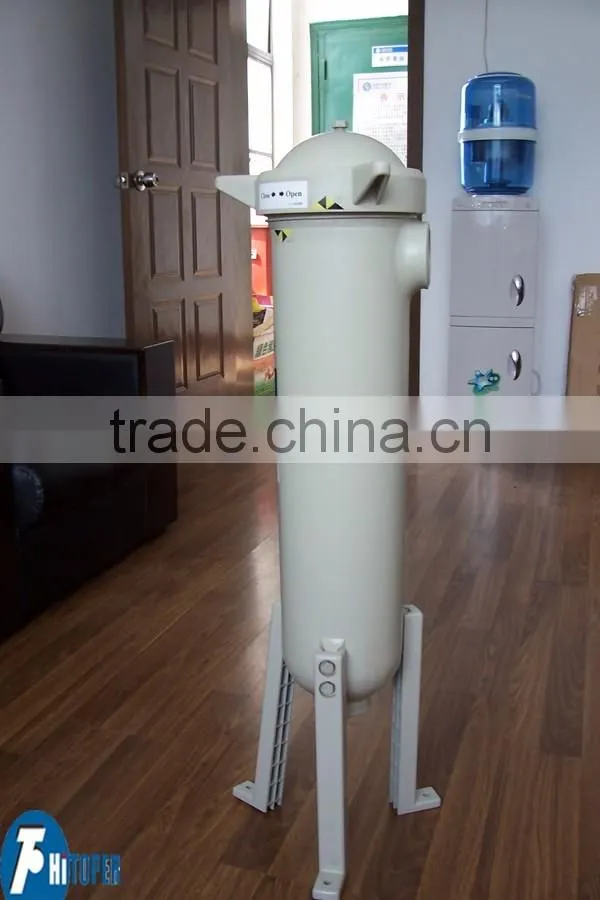

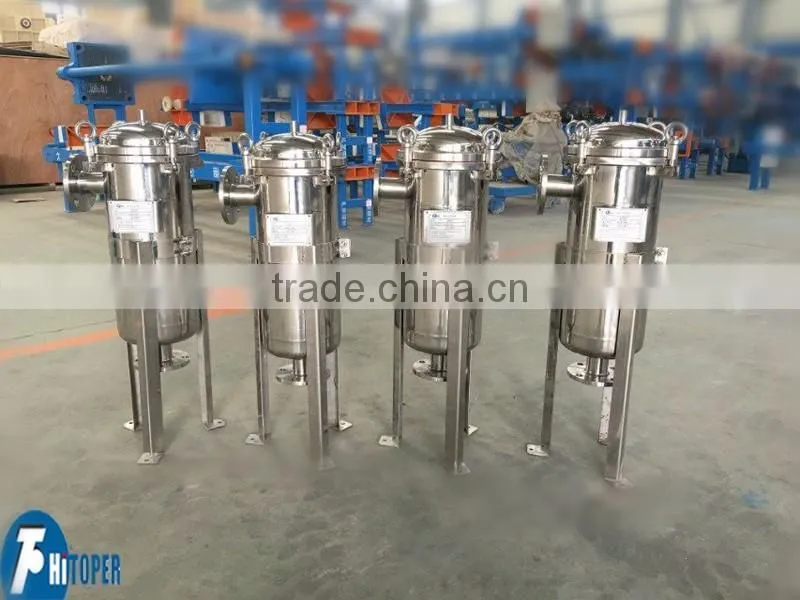

Variousbag filter for your reference:
