1..Model and detail
NO |
Name |
Parameter |
1 |
The raw materials: |
waste tires, plastics and oil sludge,city solid waste |
2 |
Total Capacity: |
10 ton |
3 |
the size of reactor: |
2800*6000 |
4 |
Average oil productivity |
diesel oil: 40%-45% |
5 |
Heating material |
Wood,coal ,oil,gas |
6 |
Feeding |
Continuous feeding |
7 |
Working pressure |
Slightly nagative pressure |
8 |
Cover land |
400 square meters |
2.High configuration

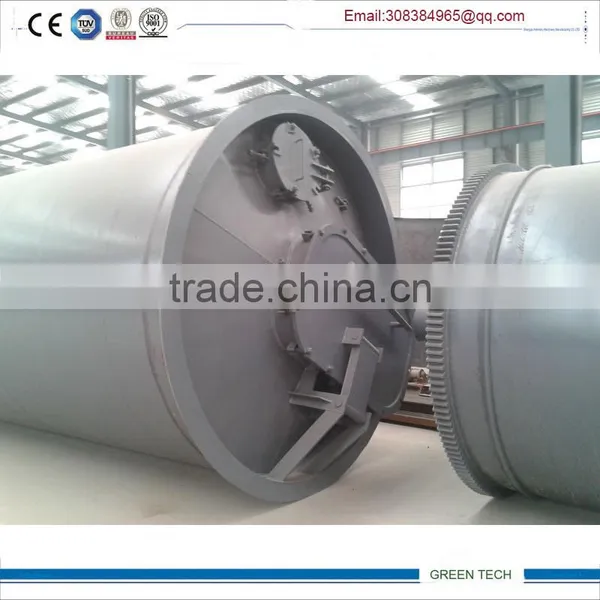

The reactor is made of Q345R alloy steel with 16mm thickness
Strong spray tower stainless steel
Activated carbon adsorption tower stainless steel
Draft fan stainless steel
Cooling system made of 2condensor ,cooling tower &1set of calandria system

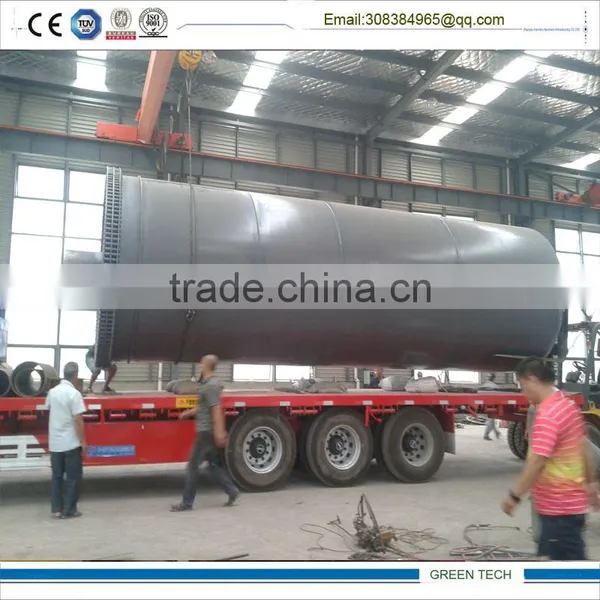

3. The shipment and the containers
Model |
Reactor material |
Size |
Container |
XHZT-CP10 |
Q345R alloy steel |
2200*6000*16 |
3*40HQ |
XHZT-CP15 |
Q345R alloy steel |
2200*6000*16 |
3*40HQ |
XHZT-CP20 |
Q345R alloy steel |
2200*8000*18 |
4*40HQ |
4. Delivery time:20-25days after we receive deposit.
5. FOB Port (China)
FOB lianyungang port, Jiangsu Province,China!
We can also arrange port according to customer
6. after-sales service
(1)We will provide the foundation drawings and catalyst formular once we receive deposit
(2)installation
we wil send 1-2engineer to your local for guide installation and debugging
3)In normal use condition ,reactor warranty:3years,lifelong time5-6years!

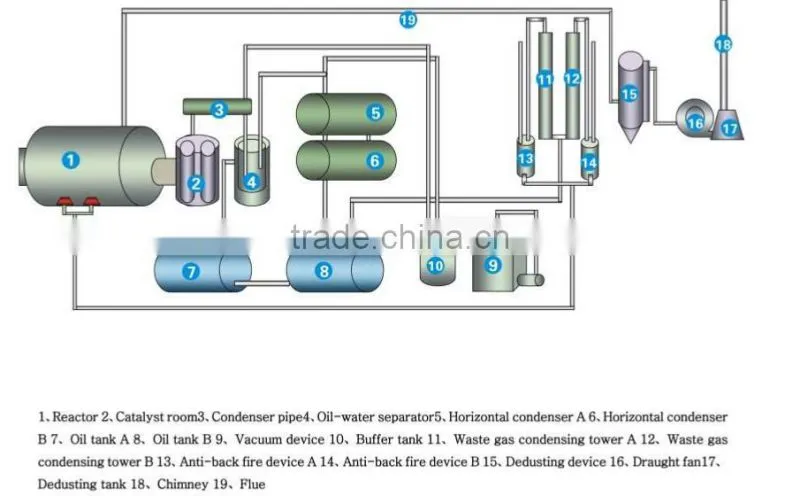

7. Working process:

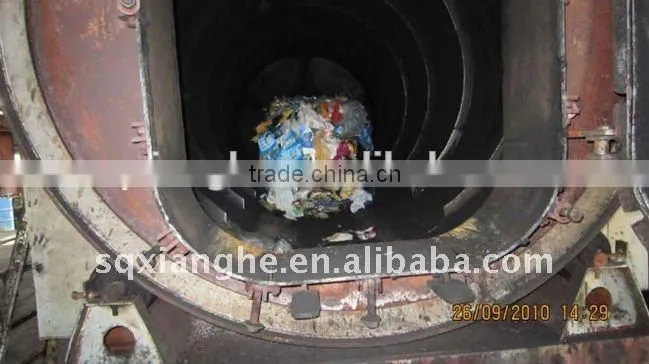

A. loading plastic into reactor
B. heating reactor
C. after heating , solid plastic converted to oil gas
D. oil gas go into oil-gas separator ,heavy oil deposit and go to heavy oil tank, light oil gas go to cooling system
E. after cooling ,light oil gas change to liquid oil and go into light oil tank
F. non-liquid oil gas will to water sealing tank, then back to combustor burning to heat reactor as fuel
G. smoke produced by heating reactor will go to dedust system, after dedust system treatment , smoke change to white clean waster steam ,then go to sky through chimney.
8.Oil rate for different material
Oil yied/day |
Waste tire/ rubber |
Big tyres |
45%--50% |
Car tyres |
40% |
||
Bicycles and motorcycles tyres |
30%--35% |
||
Waste plastic |
Fishing net |
45%--50% |
|
Safety net , farm-oriented film | |||
Conwenient bags , weave bags |
40% |
||
Off cut of recycled paper mill |
20%--30% |
