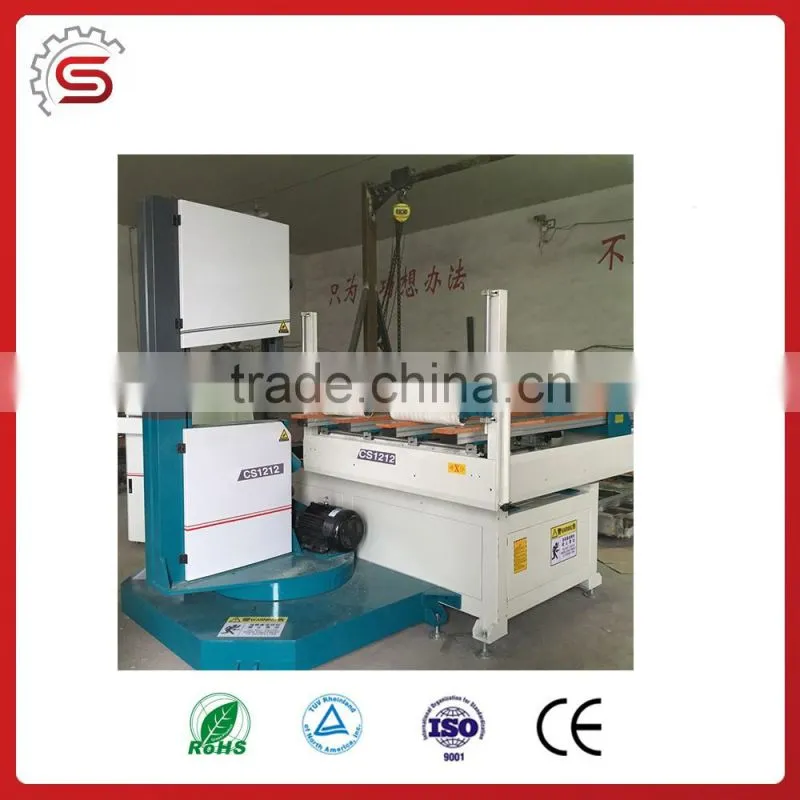

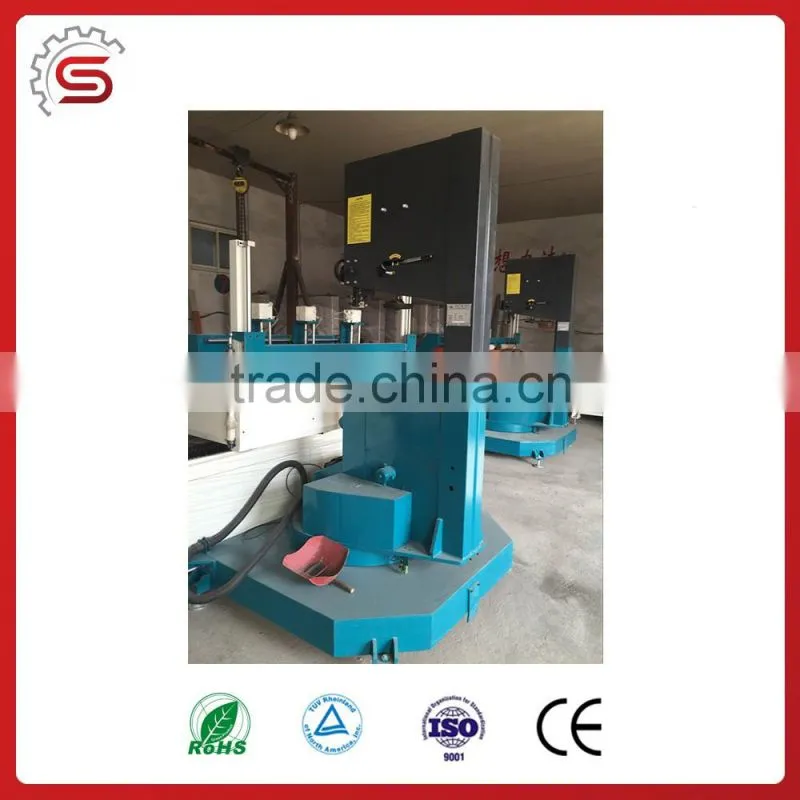

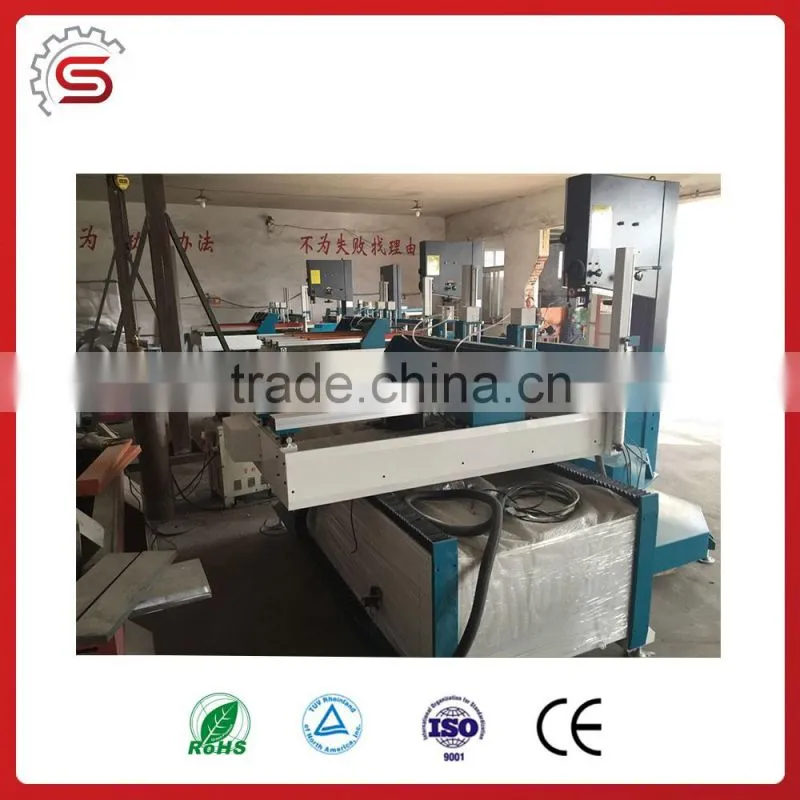

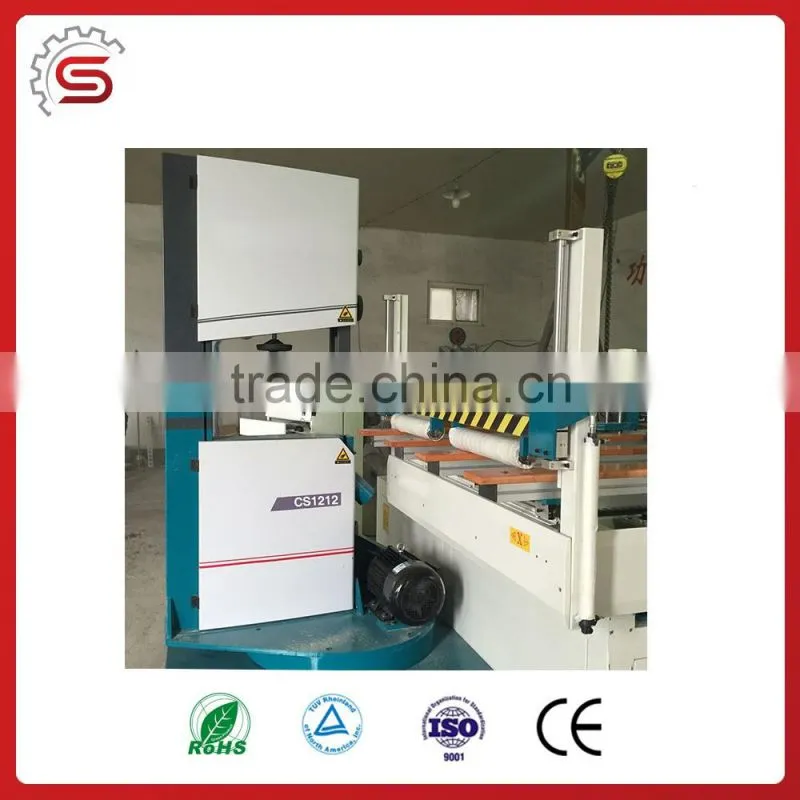

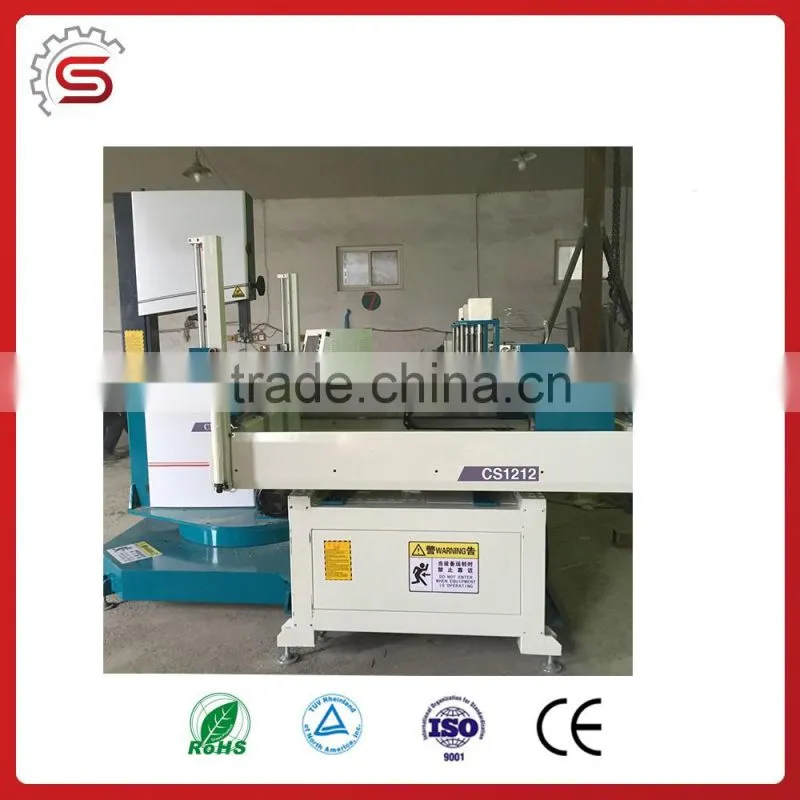

woodworking machine cnc curve band saw CS1212
Model |
CS1212 |
Max size of work piece |
1220X1220mm |
Max working thickness |
250mm |
Saw wheel diameter |
600mm |
Saw length |
25X0.9X4470 |
Min cutting radius |
R80 or R95mm |
Saw table jaws deepth |
760mm |
Saw tilting |
+/-90° |
X-Axis Motor |
15n/m |
Y-Axis Motor |
10n/m |
C-Axis Motor |
6n/m |
Spindle motor |
4kw |
X-Axis Maximum speed |
40m/min |
Y-Axis Maximum speed |
40m/min |
C-Axis Maximum speed |
180°/sec.3 |
Processing speed |
1-25m/min |
Return speed |
6-40m/min |
Air pressure |
0.6-0.8mpa |
Dust outlet diameter |
100 |
Net weight |
2700kg |
Overall dimensions |
2000X1400X2300mm |
2400X2350X1500mm |
1.Packaging details: Stretch film with wooden case or as your request
2.Shipping:We have rich experience in exporting machines to the world and can supply all kinds of different shipping terms
3.Timely delivery and transportation.
Qingdao Steeler woodworking machinery co.,ltd is the professional production of various kinds of sanding machine,polishing machine and other mechanical equipment manufacturers.
The company produced sanding machine which is a combination of Germany,Italy,Taiwan's good mechanical properties,structure andthe advanced polishing machine not only draw lessons from the foreign advanced technology,and highlights the Steeler people development innovation,enterprising spirit,continuous research and development to adapt to the market,make our polishing machine series equipment industry's leading edge products.
We have already approved the ISO9000 International quality system certification and the main products through the national certification,access to the national key new products,hightech products such as the honorary title,by the Chinese enterprise brand quality committee awarded the "National quality credit AAA grade credit enterprise"brand,the company products are sold well all over the world.
A strong R&D team,strong processing power,the reliable quality assurance,strict testing means make the company to win the trust of users. Rich experience,sophisticated design,advanced manufacturing technology,as well as relevant to the users'communication,make the company continuously introduced to adapt to the market,meet theusers of the new product.Quality,efficiency,service,integrity,modest is the goal of the Steeler People!
1) Q: What's the MOQ?
A: MOQ is one set.
2) Q: Provide custom machine Yes or No?
A: Yes. We can provide custom machine for clients.
3) Q: What's the payment terms?
A: T/T 30% in advance and balance before shipment or by negotiation.
4) Q: Are you factory or trade company?
A: We are factory and trade company.
5) Q: How long is the warranty period?
A: One year warranty period except the quick-wear parts.
6) Q: Do you have professional engineers?
A: Yes. We have professional engineers and designers. We can provide OEM products.
