2014 hot sale parts pump body
We supply the high quality parts pump body at competitive prices, and bring you the best service available!

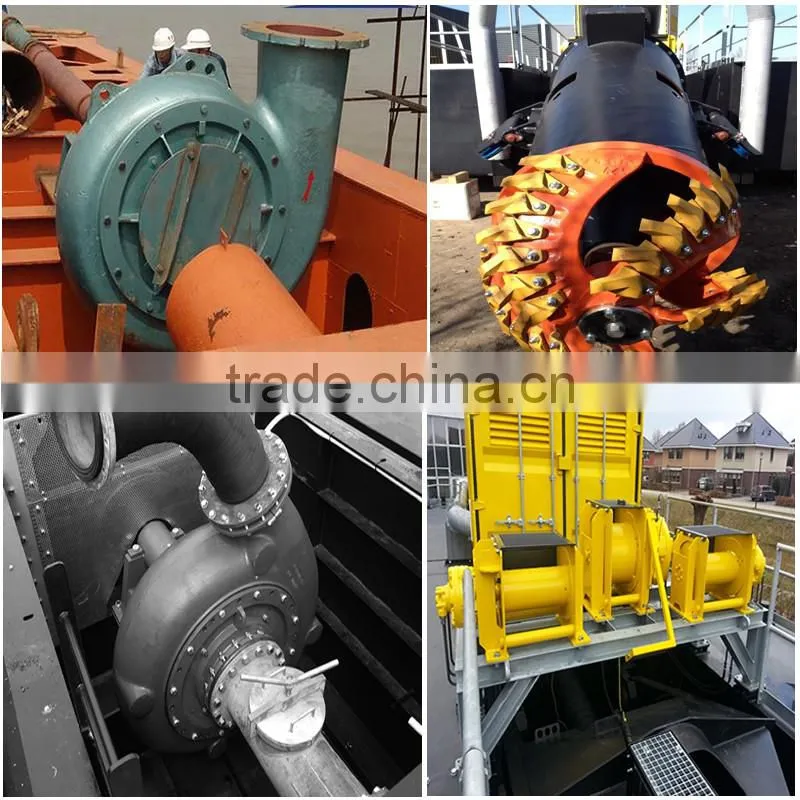

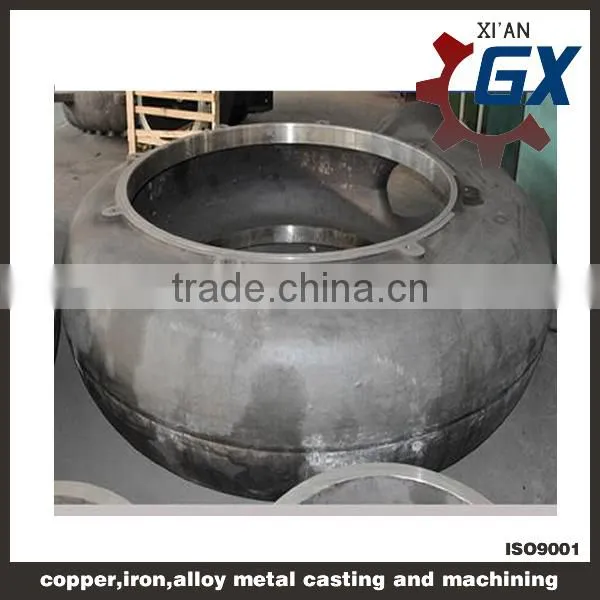

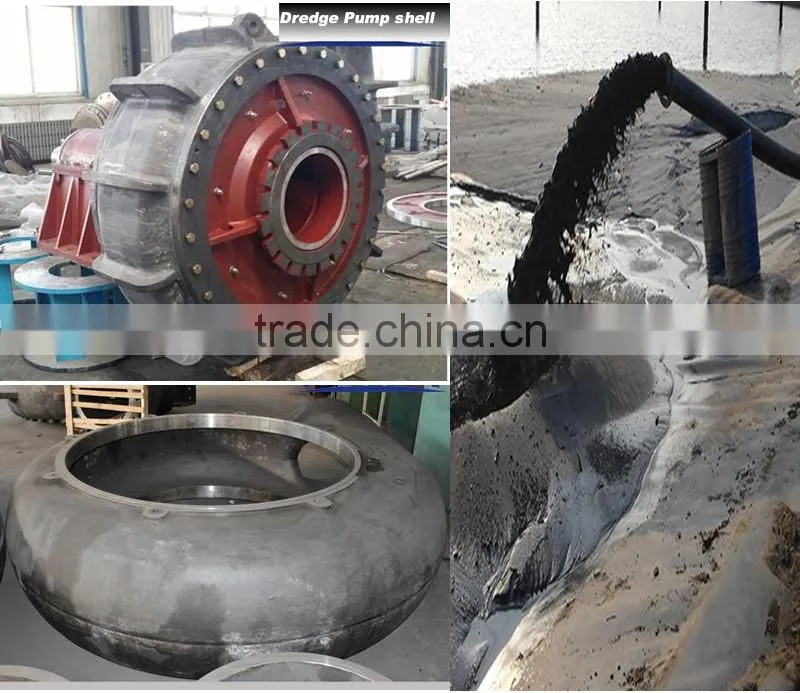

1. Our Product------ 2015 hot sale Dredge Pump shell
1.Used for:Various casting and machining products |
2. Material: Iron, carbon steel, stainless steel, alloy steel, high manganese steel, heat resistant steel, copper alloy, aluminum alloy, Hastelloy alloy etc. |
3.Tolerance: 0.01mm after machining or casting tolerace grade 14 |
4. Tooling design and fabrication available |
5.Machining: Turning, Milling, Drilling, Grinding, Welding, Tooling, Broaching, Wire EDM etc. |
6: Surface treatment: Powder coating ,Painting ,Shot blasting, Polishing ,Electrical galvanizing, Chemical galvanizing, Chrome plating , Nickel plating, Passivation etc. |
7. Standard: AISI, ASTM, JIS, BS, DIN, ISO, EN, GB. |
2. Service offer of Dredge Pump shell
Drawing: |
We will translate your original drawing; make manufacturing procedure plan, offer professional suggestions on the design if needed. Engineering design software: Solidworks, AutoCAD.PROE DWG .DXF .IGS ,jpg formats are acceptable. |
Quality control: |
We have full set of quality control system to guarantee best product quality. Depends on the products, we make different item testing plan, different manufacturing procedure and provide certified lab mechanical testing. We have the chemical analyzing chamber to analyze the component content of the material after entrance to the factory, on melting and after casting to promise the chemical component content. After getting the drawing , we first put into the software anycasting to analyze and build the mold and the feed system. We have UT, RT, MT equipment to test the product, promising the quality of the casting, both internal and surface. Also we can do the strength test for mechanical stress. Any way we can supply our costumer the qualified product, as promised. We have our Q.A. Team to promise the quality and can supply the quality certificate. and also the third part intervention for QC is also acceptable. |
Samples: |
If it is only samples available, we can draw the drawings for you. till now we can supply the impeller, the diffuser and the intermedate of sear,calpeda, pedrollo, lowara,KSB pump. |
3. Dredge Pump shell
Technical Specifications of Dredge Pump shell
Type |
CAPACITY (m³/h) |
HEAD (m) |
IMPELLER SPEED (r/min) |
EFFIICIENCY (%) |
INLET DIAMETER (mm) |
OUTLET DIAMETER(mm) |
NPSHR(m) |
WEIGHT(ton) |
100WS |
180-250 |
25-45 |
1000-1400 |
50-58 |
150 |
100 |
<3.5 |
0.5 |
150WS |
250-550 |
20-40 |
1200-1400 |
58-60 |
200 |
150 |
<4 |
1.1 |
150WSG |
350-700 |
40-65 |
800-980 |
68-71 |
200 |
150 |
<3.5 |
1.9 |
200WS |
350-700 |
20-45 |
700-980 |
60-65 |
250 |
200 |
<4.5 |
2.3 |
200WSG |
550-1000 |
40-65 |
700-850 |
70-72 |
250 |
200 |
<4 |
3.2 |
250WS |
700-1100 |
20-45 |
500-750 |
65-70 |
300 |
250 |
<4 |
4.5 |
250WSG |
900-1500 |
40-60 |
500-650 |
70-74 |
350 |
250 |
<4.5 |
4.6 |
300WS |
1100-1800 |
20-40 |
400-600 |
65-68 |
350 |
300 |
<4.5 |
5.5 |
300WSG |
1500-2200 |
30-65 |
400-550 |
74-78 |
450 |
300 |
<4 |
8.0 |
350WSG |
2000-3000 |
40-65 |
400-550 |
74-78 |
450 |
350 |
<4 |
8.8 |
450WSG |
3000-4000 |
35-67 |
350-500 |
76-80 |
600 |
450 |
<4.5 |
12 |
500WSG |
4000-5500 |
40-65 |
350-450 |
78-80 |
650 |
500 |
<4.8 |
17 |
600WSG |
5000-9000 |
55-80 |
320-400 |
81-85 |
650 |
600 |
<6 |
35 |
700WSG |
8000-12000 |
60-85 |
280-380 |
83-85 |
750 |
700 |
<6 |
50 |
800WSG |
10000-15000 |
50-70 |
260-360 |
79-80 |
850 |
800 |
<6 |
58 |
900WSG |
12000-19000 |
50-75 |
280-330 |
83-85 |
950 |
900 |
<6 |
85 |
1000WSG |
16000-25000 |
23-76 |
180-290 |
85-87 |
1100 |
1000 |
<6 |
126 |
4. Overview of our company
storehouse of Dredge Pump shell
package of Dredge Pump shell
Xian Guangxing Mechano-Electronic Co., Ltd.,founded in 2008, is located in Shaanxi. We are a professional enterprise engaged in casting and machinigng. We can supply a wide range of products to meet ever-changing market demands. Customized orders are welcomed. We are increasingly expanding our international market share based on quality products, excellent services, reasonable prices and timely delivery.
Please contact us at any time for more information.We will be very glad to receive any of your inquiry, and provide you our best service and products efficiently .
we supply below products: k type Closed non-clogging 2 or 3 vane impeller D type Open single vane impeller E type Single vane impeller F type Vortex impeller S type Grinder pump shell ASTM A 48 Class 35 B Cast Iron and Wear resistant Chromium White Iron Please click the link below to look for other pump products if this item is not proper for you. https://img13.fr-trading.com/productgrouplist-220666642/pump_and_pump_parts.html
