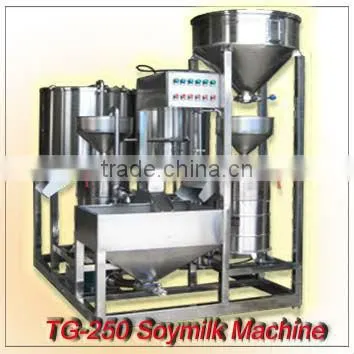

TG-250 SOYMIK MAKING MACHINE
Main technical data:
| Model | TG-30 | TG-50 | TG-80 | TG-100 | TG-150 | TG-250 |
Capacity(soaked beans) |
5-6KG/HR | 10-12KG/HR | 15-20KG/HR | 20-30KG/HR | 40-60KG/HR | 80-100KG/HR |
| heating supply | electric | electric or LPG(NEED CUSTOMIZE) | electric or LPG(NEED CUSTOMIZE) |
External steam boiler, Steam capacity:>25kg/hr |
External steam boiler, Steam capacity:>50kg/hr |
External steam boiler, Steam capacity:>80kg/hr |
| heating power | 6kw | 12kw | 18kw | 18KW | 36KW | 40KW |
| cooking tank capacity | 80L/Hr | 120L/Hr | 160L/Hr | 220L/Hr | 600-700L/Hr | 1100L/Hr |
| weight/G.W | 55/70kg | 105/120kg | 130/150kg | 140/160kg | 250/300kg | 420/500kg |
| Over dimmensions |
1060*500 *1350mm |
600*1200 *1550mm |
680*1690 *1550mm |
500*600 *1250mm |
1000*1200 *1850mm |
1400*1800 *2200mm |
| Main functions | Beans grinding, okara separating, twice grinding,soymilk cooking |
|||||
The types of electric heating boilers, gas heating, diesel heating, coal or wood heating, etc. Select the
appropriate model to use their own)
Do tofu, the need to increase bean product pressing machine. (curd machine web link: https://img13.fr-trading.com/product-gs/698626429/12_pieces_Aerodynamic_Mould_Tofu_Press.html)
The machine of entire stainless steel structure, twice grinding paste systems, two barrel cooking soymilk,
composed of two grinding & separating machines, suction pumps, bean-dreg pumps, soybean milk barrel, bean-dreg barrel, cooking soybean barrel and so on. External connect steam.
Application:
Large scale bean processing factory, supermarket and so on.
Products shows
Other similar model
TG-100
TG-150
Workshop and products packag
Busines curd
If you have any question , please let me know!Thanks for your attention!
