truck mounted sweeping machine
The truck mounted sweeping machine is also called road sweeper, sweeper truck. Our truck mounted sweeping machine divided into three classes, one is normal truck mounted with 4 brushes, second is the truck mounted with brushes and sucking disc, third one is rpure sucking road sweeper which means the truck mounted only sucking disc.
Following is the technical parameters for the first class of truck mounted sweeping machine, truck mounted with 4 brushes.
Main Technical Parameter | ||||
Product Name |
Road Sweeper |
Gross Vehicle Weight(kg) |
9400 |
|
Curb Weight (kg) |
5705 |
Overall Dimension(mm) |
6700x2290x2500 |
|
Rated Payload(kg) |
3500 |
Cab Allowed Persons |
3 |
|
Axle No. |
2 |
Wheelbase (mm) |
3800 |
|
Chassis Technical Parameter | ||||
Chassis Model |
EQ1090T9ADJ3AC |
Chassis Name |
Truck Chassis |
|
Chassis Brand |
Dongfeng |
Manufacturer |
Dongfeng Automobile Co., Ltd |
|
Overall Dimension (mm) |
6695×2285×2350 |
Tyre No. |
6 with 1 spare tyre |
|
App./ Dep. Angle(º) |
22/13 |
Tyre Spec. |
8.25-16 |
|
Leaf Spring No. |
11/9+7 |
Front Track (mm) |
1831 |
|
Fuel Type |
Diesel |
Rear Track (mm) |
1640 |
|
Drive Type |
4x2 |
Brake System |
Air brake |
|
Steering Type |
Circulate ball |
Gear Box |
5 speed forward and 1 reverse |
|
Engine Technical Parameter | ||||
Engine Model |
CY4102-E3C |
Emission Standard |
Euro III |
|
Displacement ( ml) |
3856 |
Power (KW) |
91 |
|
Cylinder No. |
4 in line |
Engine Type |
Water cooling, four stroke, inter-cooling charged, |
|

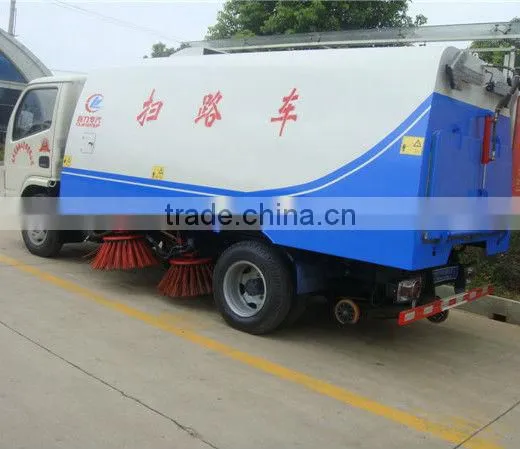

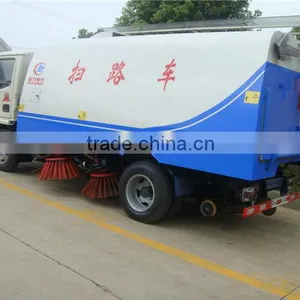

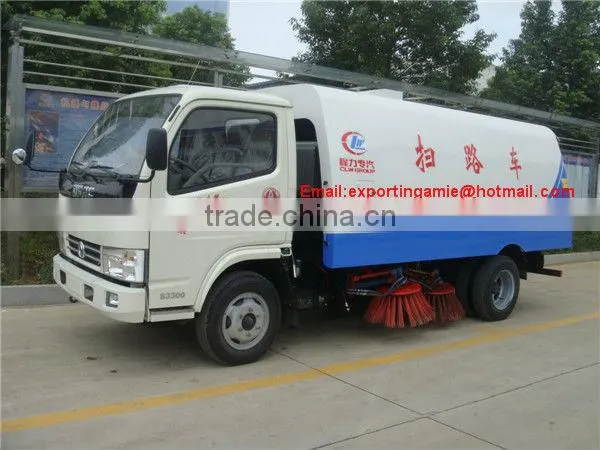

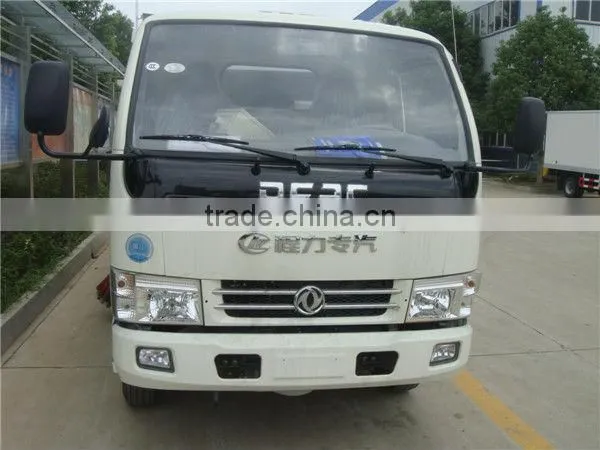

Pictures of truck mounted sweeping machine
More information of truck mounted sweeping machine, please don't hesitate to let Ms.Amie Nie know by calling at +0086-13872889770
CCC Cerfitication of this CLW5090TSL3 truck mounted sweeping machine
Truck mounted sweeping machine workshop

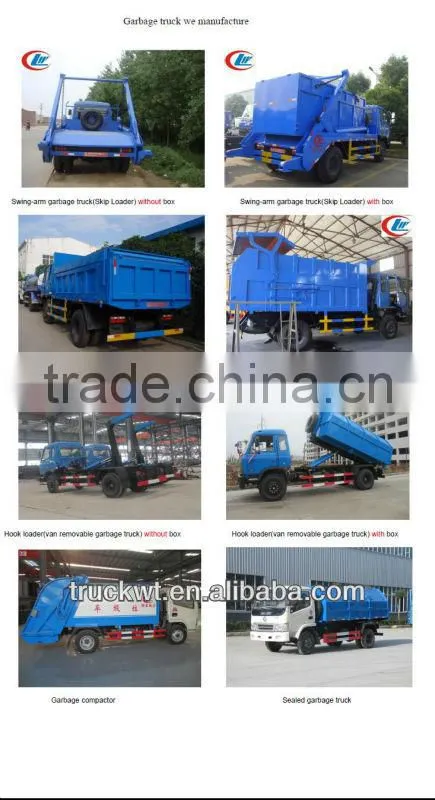

More trucks we manufacture
