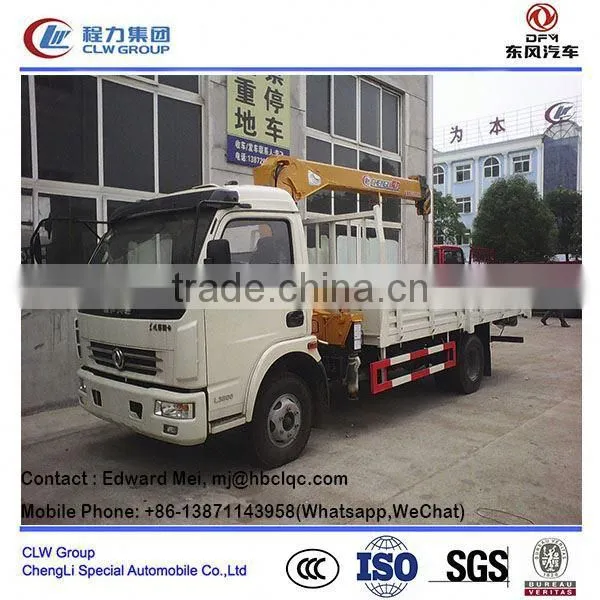

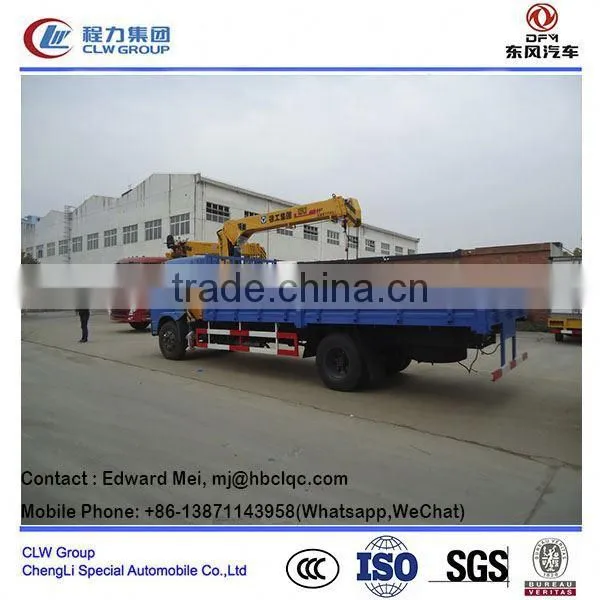

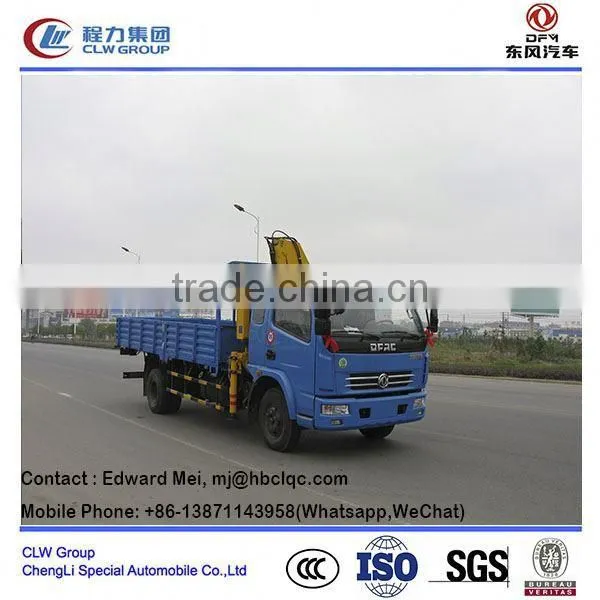

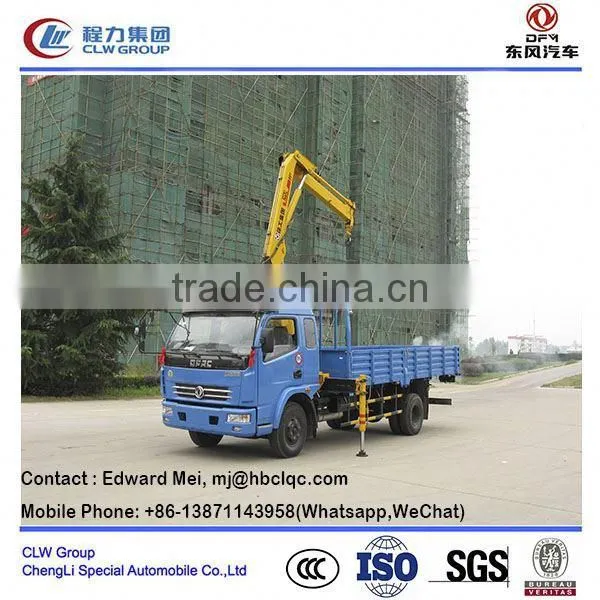

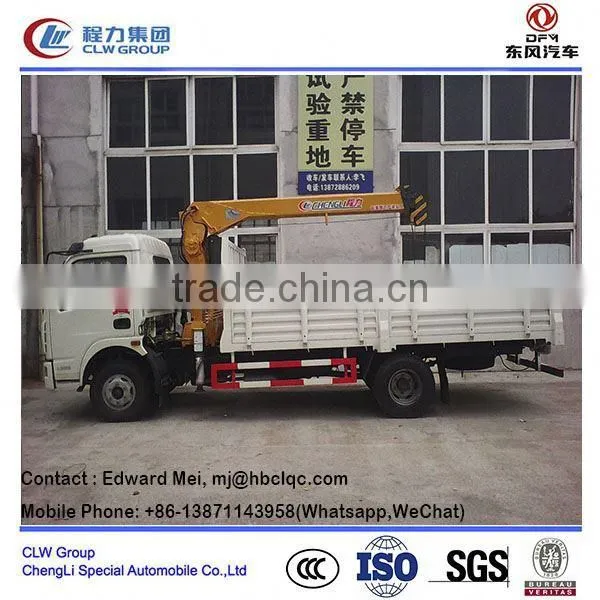

6 Ton Hydraulic Truck Crane for Sale. 6 Ton Hydraulic Boom Truck Crane/ 6 Ton Truck Mounted Crane.

US$ 10,000 - 35,000 MOQ: 1 Unit

Key Specifications

Condition:

New

Application:

1~5T

Rated Loading Capacity:

Chengli Special Automobile Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

any port of China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Application 1~5T

Rated Loading Capacity 5T

Rated Lifting Moment 1500NS

Max. Lifting Load 4T

Max. Lifting Height 7m

Span 5m

Place of Origin Hubei, China

Brand Name CLW

Model Number CLW

Certification CCC, ISO

Warranty one year

After-sales Service Provided Engineers available to service machinery overseas

6 ton hydraulic truck crane for sale. 6 ton hydraulic boom truck crane, 6 ton truck mounted crane.

Item	Unit	Description
Model		CLW5080JSQN4 Truck mounted Crane
Dimension	mm	710022753150
Box dimension	mm	43002080550
Curb weight	kg	4200
Loading Weight	Kg	Around 5000 kg
Wheel Base	mm	3800
F/R track base	mm	1780/1586
F/R Axles Loading	Kg	3000/5200
Approach/Departure angle	.	25/13
Traction system	4x2	Tire Specification/Number	7.50-16 / 7 Units
Max speed	85 km/h	Number of axles/ability	2
Engine model	YZ4105QF	Emission/kw	3856ml /91 Kw , 125Hp
	Diesel, 4 cylinders, direct-line, turbocharge-aftercooling
Engine brand	Yangzhou diesel engine power co.,ltd
Operation control system	Electrically hydraulic	Transmission	5 speed with over drive
Cab passenger	3	Electric System	24V
Driven System	Left hand or Right hand.
Remark	Power steering. Fuel Tank : 100L , Color~ Option. Option~ 340 USD if installing air condition. Option~ Could also add dump function


Equipment
Original crane model	SQ5SA2	Option model	TO be Confirmed
5 tons, three arms(two extendible arm)
