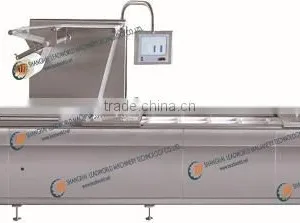

Shanghai Leadworld LW-PT320 Price Thermoforming Machines Supplier
1. Vacuum Thermoforming Machine Descripton
LW-320C full-automatic continuous stretching vacuum packing machine can carry on, vacuum package . It can print ink automatically. This machine takes with vacuum, carrying on vacuum package.
The operation principle is shaping-vacuum-sealing-cutting.
2. Vacuum Thermoforming Machine Technical Parameters
|
Parameter Model |
LW-PT320 |
LW-PT420 |
LW-PT520 |
Packing Speed |
2-4 Cycles/Min |
2-4 Cycles/Min |
2-4 Cycles/Min |
Bottom Film Thickness |
≤0.8 mm |
≤0.8 mm |
≤0.8 mm |
Bottom Film Width |
322 mm |
422 mm |
522 mm |
Top Film Width |
285 mm |
385 mm |
485 mm |
Max.Forming Size |
300*400 mm |
400*400 mm |
500*400 mm |
Max.Forming Depth |
80 mm |
80 mm |
80 mm |
Power Supply |
AC 380V, 50Hz (3 phase) |
AC 380V, 50Hz (3 phase) |
AC 380V, 50Hz (3 phase) |
Air Consumption |
500 L/Min |
550 L/Min |
650 L/Min |
Air Supply |
≥0.6 MPa |
≥0.6 MPa |
≥0.6 MPa |
Loading Area Length |
≥1.5 m |
≥1.5 m |
≥1.5 m |
Power |
10 KW |
12 KW |
15 KW |
Dimension |
4500*1000*1700 mm |
5200*1100*1760 mm |
5200*1200*1760 mm |
Weight |
1300kg |
1500kg |
1800kg |
3. Main Components of Vacuum Thermoforming Machine
PLC controller/touch screen |
Mutsubishi PLC - Japan |
servo motor |
Mutsubishi servo- Japan |
pneumatic component |
AIRTAC- Taiwan |
electrical component |
ABB- America, Mutsubishi- Japan |
drive |
Mutsubishi- Japan |
vacuum pump |
BUSCH – Germany111 type(the pumping air quantity is110m3 per hour) |
material for body machine |
Aluminum alloy, stainless steel |
cutting |
Horizontal cutting, cross cutting |
film width |
Width of upper film:293mm Width of lower film:322mm |

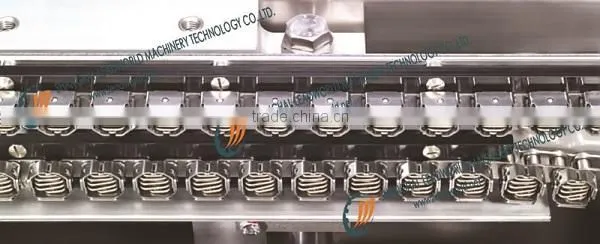

chain |
Imported chain |
