Help Center2491X Heat Resistant Cables to BS 6004 H05V2-K/ H07V2-K
Related Products
Specifications
2491X Heat Resistant cables to BS 6004 H05V2-K/ H07V2-K1,Conductor: Copper
2,Insulation:PVC
3,Standard:BS 6004
2491X Heat Resistant cables to BS 6004 H05V2-K/ H07V2-K
Application and Description
These special heat-resistant flexible single-conductor hook-up wires are ideal for use in power current installation, switch cabinets, motors and transformers which are subject to direct contact with high temperature equipments(e.g. varnishing machines and drying towers etc.). These are also suitable for inside wiring of electrical equipments such as lighting and heating apparatus. 2491X HR is equivalent to harmonized code H05V2-K/ H07V2-K.

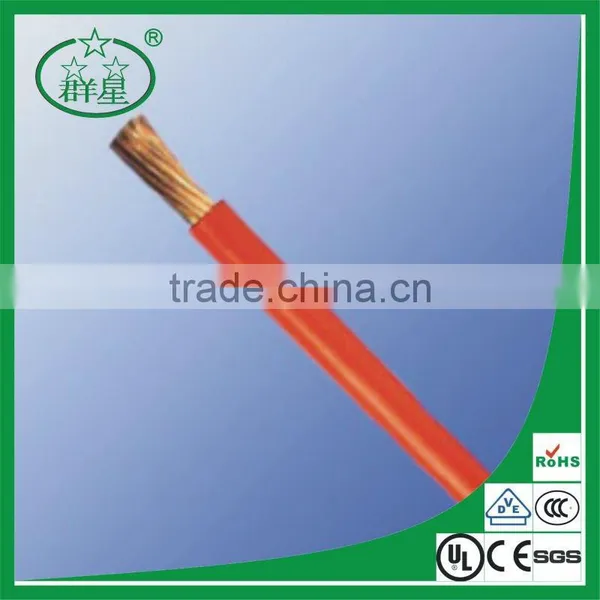

Cable Construction
- Fine bare copper strands
- Stranding to BS 6360 Class 5 or IEC 60228 Class 5
- Special heat resistant PVC TI3 core insulation to BS 7655
- H05V2-K (20, 18 & 17 AWG)
- H07V2-K (16 AWG and Larger)
Core Identification
Black, Blue, Green/Yellow, Red, Yellow, White, Violet, Brown, Grey, Orange, Pink
Technical Characteristics
- Working voltage: 300/500v (H05V2-K)/ 450/750v (H07V2-K)
- Test voltage: 2000/2500 volts
- Flexing bending radius: 10-15xOverall diameter
- Static bending radius: 10-15xOverall diameter
- Flexing temperature: +5º C to +90º C
- Static temperature: -10º C to +105º C
-Short circuit temperature: +160º C
- Flame retardant: IEC 60332.1
- Insulation resistance: 20 MΩxkm
