Wholesale CO Indicator&alarm for Underground Parking Lots, Maintenance Garages

Name: Wholesale CO Indicator&alarm for Underground Parking Lots, Maintenance Garages
Brand: Tongdy
SKU: 141809986

US$ 1 - 2 MOQ: 10 Cartons

Key Specifications

Place of Origin:

Beijing, China

Brand Name:

Tongdy

Model Number:

TSM-CO-A106X

Tongdy Sensing Technology Corporation (Beijing)

Payment & Shipping

Payment Methods:

Port of Shipment:

Beijing

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Beijing, China

Brand Name Tongdy

Model Number TSM-CO-A106X

Specifications

1.Detector and alarm
2.0~500ppm
3.semiconductor CO gas sensor
4.1X on/off output

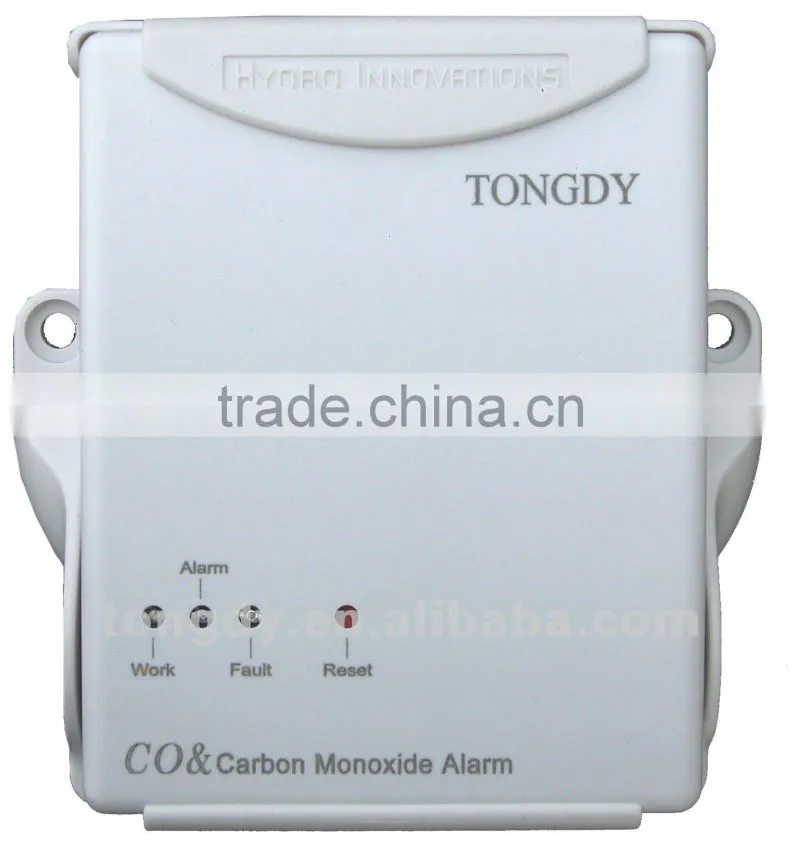

wholesale CO indicator&alarm for Underground parking lots, maintenance garages

1.Specially designed for detection and alarm of room CO level.

2.Wall and ceiling mounting, real time detect CO level with measuring range of 0~500ppm

3.World famous semiconductor CO gas sensor inside with more than 5 years lifetime

4.Unique self-calibration function ensure the stability and reliability of measurements

5.Multi-points calibration improves the measurement accuracy

6.With the technology of multistage filtration of CO detection, avoid to error alarm

7.Provide 1 on/off output for control a fan

8.Provide an optional wall-mount bracket for convenient installing in everywhere.

9.Modbus RS485 interface optional

10.Loud distinct alarm (75dBA at 3 meters)

11.Power supply with a 5V power adaptor connecting to 230VAC/110VAC, safety and convenience

12.High technology with the excellent performance

Specifications

Gas detected	Carbon monoxide
Sensing element	Semiconductor carbon monoxide gas sensor
Calibration& filtration	Multi-points calibration before leaving factory, Internal multistage of CO detection
CO detection range	0~500ppm
Warm up time	48 hours (first time) 10 minutes (operational)
Response Time	<5 minutes for 90% step change
Signal Update	1s
Power Supply	12VDC (with a power adaptor to connect 230VAC/110VAC)
Consumption	2.0 W
Buzzer sound	75dBA
Relay output	One dry contact output, rated switching current 5A (resistant load)
RS485 communication interface	Modbus RS485, 19200bps with the independent base address.
Operation temperature	0~70°C(32~158°F)
Operation humidity	0~95%RH, non condensing
Storage conditions	-40~70°C(-40~158°F)
Net Weight	195g
Dimensions	100mm×80mm×28mm
Installation	65mm×65mm or 2”×4” junking box for the base plate Two screws fix for the bracket, and put the CO alarm on the bracket
Wiring terminals (max.)	2
Housing and IP class	PC/ABS fireproof plastic material, protection class: IP30
Certification and Quality control	CE / ISO9001

Models

ITEM	MODEL	DESCRIPTION
Carbon Monoxide Alarm	TSM-CO-A1060-(A)	CO Alarm with a power adaptor of 230VAC
	TSM-CO-A1060-(B)	CO Alarm with a power adaptor of 110VAC
	TSM-CO-A1061-(A)	CO Alarm and controller, one dry contact output 12VDC with a power adaptor of 230VAC. Bracket mounting
	TSM-CO-A1061-(B)	CO Alarm and controller, one dry contact output 12VDC with a power adaptor of 110VAC. Bracket mounting
