Help CenterCore Drilling Tester
US$ 1,209 - 1,300
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
SHTG
Model Number:
HZ-20
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Shanghai, China
Brand Name
SHTG
Model Number
HZ-20
Power
Electronic
Usage
Other, concrete core drilling machine
Specifications
Core Drilling Tester1.Motor's voltage: AC220V
2.Motor power: 3.3-6.6KW
3.Weight:140Kg

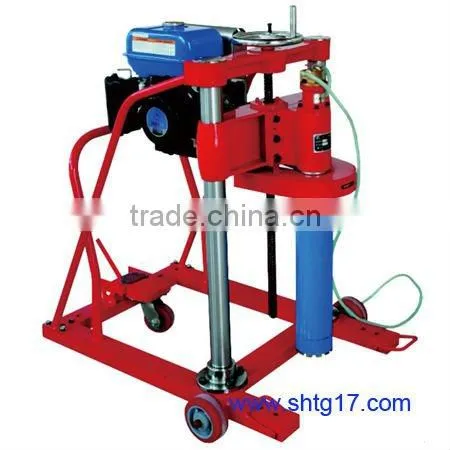

Concrete Core Drilling Testing Machine
( Core Drilling Tester)
Application:
The core drilling machine which combines high speed cutting technology and thin walled diamond bits, is widely applied to drill and core in building works,
equipment installation projects and construction inspection projects.
Specifications:
1.Max. drilling diameter: Φ200mm ;Φ150mm,Φ100mm,Φ70mm,Φ50mm
2.Max. drilling depth: 400mm (up to 1500mm) by using
extension bar);
3.Motor power: 3.3-6.6KW(according to the engine to provide)
4.Principal axis speed: 800-1200 r.p.m
5.Weight:140Kg
Features:
Double posts structure,
YAMAHA motor as the driving force;
No need screw fixation; machine is mounted on 3 wheels for ease of movement;
Reliable and convenientin operation.
The Core drilling machine is able to drill and cut high strength concrete, with high Effeciency, precise hole position, smooth wall of hole and cored specimen,
Small vibration and no damage to construction.
STHZ-15 MODEL AVAILABLE
