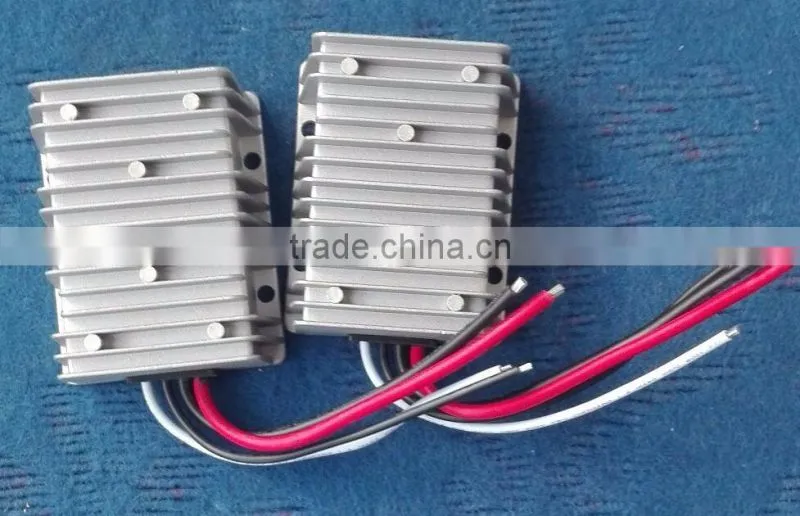

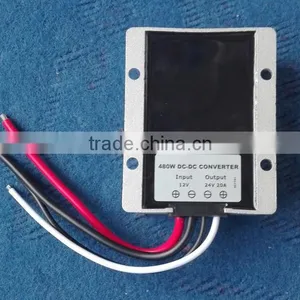

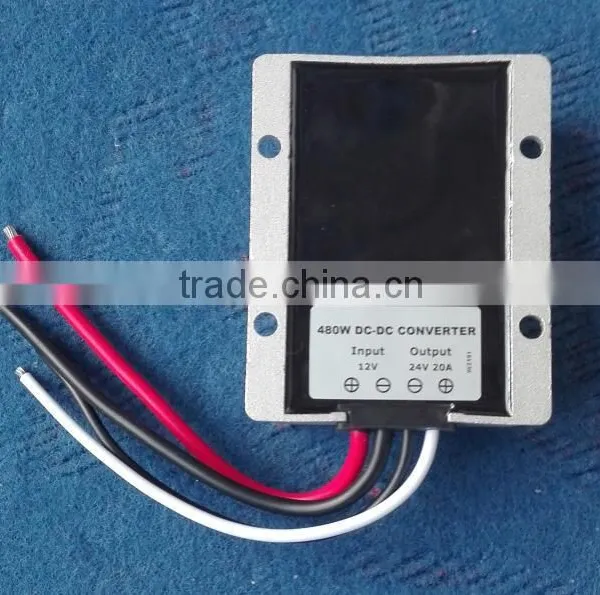

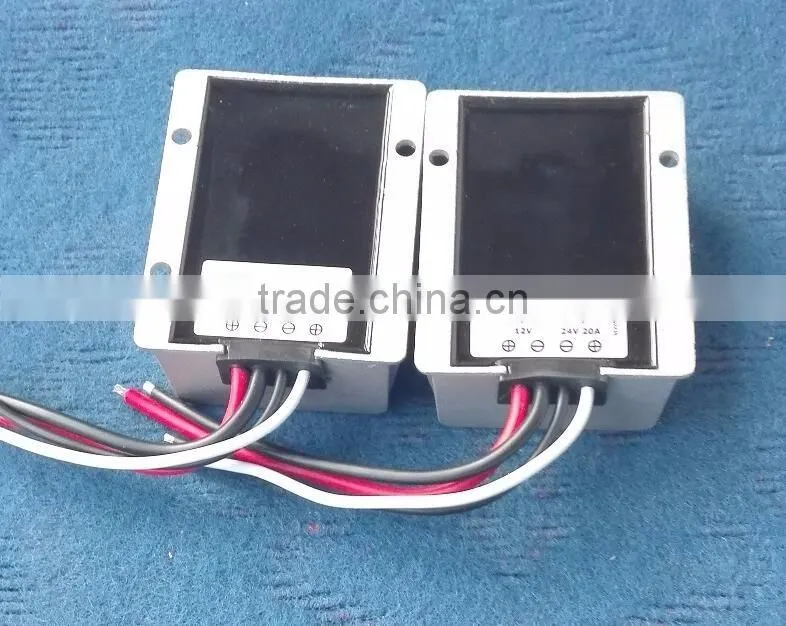

Help Center480w 12v to 24v,20A Waterproof Boost dc to dc Power Converter
Related Products
-
1120W 12v to 28v 40A Waterproof Boost /step up Dc-dc Power ConverterNegotiableMOQ: 1 Piece -
12 v to 36v 20a 720w Waterproof DC to DC Step up Power ConverterNegotiableMOQ: 1 Piece
-
2000W 24v to 48v 40a Waterproof Boost /step up Dc-dc Power ConverterNegotiableMOQ: 1 Piece
-
1440W 24v to 48v 30a Waterproof Boost /step up Dc-dc Power ConvertersNegotiableMOQ: 1 Piece
-
24 v to 48v 20a 960w Waterproof DC to DC Step up Power ConverterNegotiableMOQ: 1 Piece
Features:
1. 100% full power & stable current output
2. 100% Imported components
3. Wide input voltage from 30-35Vdc
4. Industry grade DC24V to DC48V step-down converter, high efficiency up to 95%
5. 100% waterproof & anti-shock protection, Ultra compact size, light weight
6. According: CE/RoHS, IP68 design
7. Die-cast aluminum shell, epoxy potting, Cooling by free air convection
8. Protections: Over-current, Over-voltage, Over-temperature, Over-load and Short-circiut. Auto-recovery when device is back to normal operating
9. Non-Isolated Module,
Applications:
Trucks,Golf Carts,Forklifts,Buses,Loaders,Logging Vehicles,Wind Power System,Solar Power System,Electromotor,Telecommunications,Boat & Yacht,and so on...
Model |
GW-12S2420 |
Input rated voltage |
12V DC |
Input voltage range |
9-16V DC |
Efficiency |
>95% |
Output voltage |
24V DC |
Output current |
20Amps |
Output rated power |
480Watts |
Output peak power |
130% |
Voltage regulation |
< 1% |
Load regulation |
< 2% |
Ripple (Full load test) |
< 40mV |
No-load current |
< 20mA |
No-load loss (Watt) |
0.72 ~ 1.44 |
Working temperature |
-35℃~ +80℃ |
Waterproof rating |
IP68 |
Over-voltage protection |
YES |
Over-current protection |
YES |
Over-temperature protection |
YES |
Short-circuit protection |
YES |
Machine size |
100*80*39mm |
Package size |
126*97*41mm |
N. Weight |
470g |
G. Weight |
500g |
Heat dissipation method |
Die-cast aluminum housing Natural heat dissipation |
|
\
DC -DC Boost converter Spec. is as follows
12v to 24v,5A 12V TO 48V,2A 24V TO 48V,10A
12V to 24v,10A 12V TO48 V,5A 24V TO 48V,20A
12V to 24V,15A 12V TO 48V,10A 24V TO 48V,30A
12V TO 24V,20A 12V TO 36V 10A
12V TO 24V,25A 12V TO 36A 5A
12V TO 24V,30A
our company specialized in the manufacture and export of electric system products , including,pure sine wave power inverter, motor controller,charger,DC-DC converter,electronic throttle,battery discharge indicator,hour tachometer ,air conditioning system,electric system solution .etc
