125SC4 Series Deep Well Submersible Pump
US$ 99 - 141
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
TRUPOW
Model Number:
125SC4 Series
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Self Priming Horizontal Multistage PumpUS$ 90 - 95MOQ: 100 Pieces -
Multi-Stage PumpUS$ 42.5 - 60MOQ: 200 Pieces
-
EGDa Series Submersible Screw PumpsUS$ 80 - 150MOQ: 100 Pieces
-
QGD Series Submersible Screw PumpsUS$ 80 - 150MOQ: 100 Pieces
-
EGD Series Submersible Screw PumpsUS$ 80 - 150MOQ: 100 Pieces
Place of Origin
Zhejiang, China
Brand Name
TRUPOW
Model Number
125SC4 Series
Theory
Electromagnetic Pump
Structure
Multistage Pump
Usage
Water
Power
Electric
Standard or Nonstandard
Standard
Fuel
Other, electric
Pressure
High Pressure
Application
Submersible
Specifications
Deep Well Submersible Pump-For water supply from wells or reservoirs.
-For domestic use, for civil and industrial application
Deep Well Submersible Pump

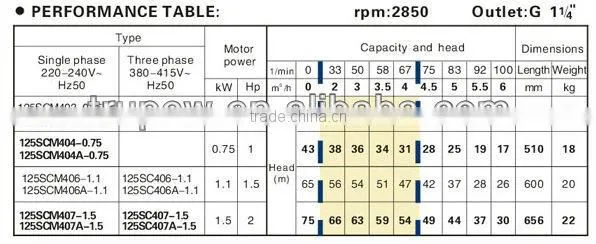

TECHNICAL DATA:
-Pump
Qmax: 7.8 m3/h
Capacity from 2 to 4 m3/h
Total head from 75 to 13 m
-Motor:
Power: 0.55 to 1.5 kw
Insulation class: B
Protection grade: IP68
Maximum diameter: 126mm
Highest temperature of liquid: 35oC
Material:
-External pump body: Stainless Steel
-Suction strainer: Stainless Steel
-Impeller: PPO/SS
-Bearing brackets: Brass
-Shaft: Stainless Steel
-Motor housing: Stainless Steel
-Mechanical seal: Special seal for deep well(carbon-SIC/TC)
Application:
-For water supply from wells or reservoirs.
-For domestic use, for civil and industrial application.
