hydraulic hose crimping machine/hydraulic hose crimping FY 68
Specifications
hydraulic hose crimping machine
hose crimper
hose crimping machine FY 68
Buckling hose :6 to 51 mm
buckling force: 407 to
hydraulic hose crimping machine/hydraulic hose crimping/hose crimper FY 68
good mould made by linear cuting machine
Buckling hose range: Φ6Φ51mm
Max. buckling force: 407T FY68-A(220V)
Max. buckling force: 407T FY68-B(380V)
Model FY 68 pipe locking machine is mainly used for buckling processing for high pressure rubber pipe assembly in the mechanical engineering. It can also be used for buckling the two-way bends, especially large bends and irregular shape bends.
This machine features small and portable appearance, big force, low noise and easy to operate. The buckling amount can be precise adjusted through a scale. It makes the mould base division to be more even through the double inclined plane eight-flap mould seat equipped with a high accuracy guiding device.
II. Main Technical Feature
Buckling range: Φ6—Φ51mm
Max. buckling force: 449T
Scale accuracy: 0.02mm
Rated pressure: 31.5 MPa
Oil pump displacement: 5ml/rad /3KW (380V); 2.5ml/rad /2.2KW/(220V)
Overall dimensions: 670(L)×490(W)×780(H)mm
III. Installation and Operation
1. Add sufficiently 79 liters of Great Wall brand 46# anti-abrasion hydraulic oil. If the room temperature is lower than 10°C, 10% transformer oil is need to add.
Maintenance
Thydraulic oil in the oil tank should be frequently checked, if oil amount is found to be insufficient, the oil shall be timely supplemented. If the oil liquid is polluted, it shall be filtered or replaced.
VI. Promise
We will provide a guarantee to keep the machine in good repair within half a year from the date when the machine is purchased. All fitting troubles will be free of charge repaired (or replaced if necessary) during the guarantee period. The damage resulted from improper use o accident damage does not belong to free of charge repair range.
Troubleshooting
Trouble phenomena |
Trouble reason |
Eliminating method |
Machine has not action |
Oil tank has not been filled with oil |
Fill oil as per requirement |
Motor rotation direction is not correct |
Regulate two phase lines |
|
Electric trouble |
Overhaul electric circuitsPacking list |

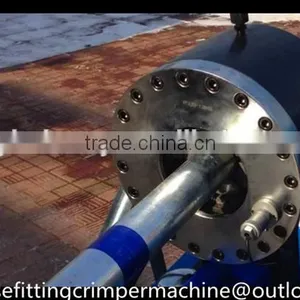

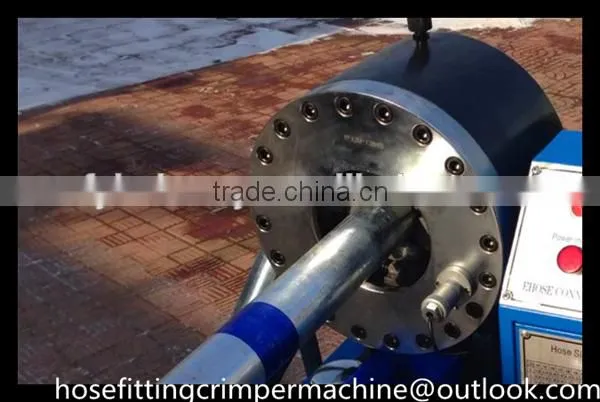

use our hose crimping machine to Crimp hydraulic hose:
Packing of low pressure hose crimping machine:
Ourshipping:By Sea,By air,By train,BY track
We pay attention to our Packing. 3 ways of Packing which can be suitable for Long Distance
If you need other machine,please let me know:
Welcome to ask more information
