DLX-IB4E20 1080P Outdoor Water-proof IP IR80 Night-vision Bullet Camera

DLX-IB4E20 1080P Outdoor Water-proof IP IR80 Night-vision Bullet Camera thumbnail-1
DLX-IB4E20 1080P Outdoor Water-proof IP IR80 Night-vision Bullet Camera thumbnail-2
DLX-IB4E20 1080P Outdoor Water-proof IP IR80 Night-vision Bullet Camera thumbnail-3

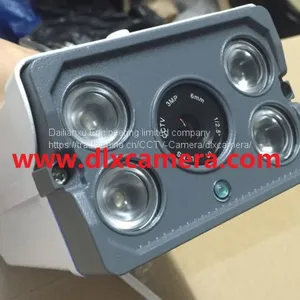

DLX-IB4E20 1080P Outdoor Water-proof IP IR80 Night-vision Bullet Camera thumbnail-4
DLX-IB4E20 1080P Outdoor Water-proof IP IR80 Night-vision Bullet Camera photo-1
DLX-IB4E20 1080P Outdoor Water-proof IP IR80 Night-vision Bullet Camera photo-2
DLX-IB4E20 1080P Outdoor Water-proof IP IR80 Night-vision Bullet Camera photo-3

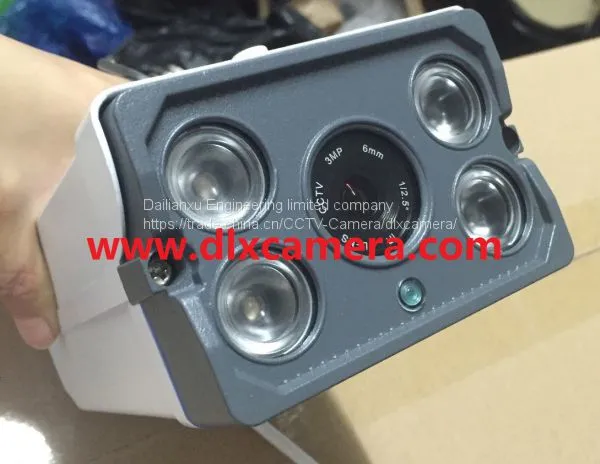

DLX-IB4E20 1080P Outdoor Water-proof IP IR80 Night-vision Bullet Camera photo-4
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
HOCA
Place of Origin:
China
Model Number:
DLX-IB4E20
Contact Supplier Request Quote Chat Now
Shenzhen Hongcai Security&Safety Limited Company
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
5 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name HOCA
Place of Origin China
Model Number DLX-IB4E20
Type IP Camera
Special Features Waterproof / Weatherproof
Technology Infrared
Sensor CMOS
Style Bullet Camera

Features:

◊ Adopts Embedded RTOS design,32bit DSP CPU, Integrated high performance video encode accelerator, Super high performance RTOS

◊ Dual stream,Video code rate (64kbps-8Mbps) can be uninterrupted adjust

◊ Support video loss, Motion Detection, Probehead alarm

◊ Support TCP/IP, support IE browser/Android/Iphone etc.

◊ Bi-direction audio,RS485,Alarm,POE,USB,TF port, Analog video output port(BNC) etc optional

◊ Adopts double glass, the image more clear and bright

◊ Built-in double IR-CUT filter, No color deviation

◊ Adopts Long-life and SMART 4pieces big Epistar IR Arrays, IR range up to 80meters

◊ 6mm/F1.2 big Megapixel lens, 4mm,8mm,12mm,16mm/F1.2 or 25mm/F1.4 optional

◊ Aluminum housing, Weather proof,IP66

Specification:

Model

DLX-IB4E20

Sensor

1/2.8" CMOS

Horizontal Resolution

2Mp

Signal System

PAL/NTSC

Lens

Fixed 6mm/F1.2 Megapixel lens (4,8,12,16mm/F1.2 or 25mm/F1.4 optional)

Min. Illumination

0LUX(IR ON)

IR

4pieces big Epistar IR Arrays, IR range 80M

BLC

Auto

WDR

Digital

AGC

Auto

Electronic shutter

1/50(1/60)s to 1/100,000s

S/N

>55dB

Gamma correction

>0.45

Ethernet port

1 RJ45 Ethernet port ,10/100M

Video process

H.264 code, Dual Stream, AVI format, 64k~8Mpbs adjustable

Protocol

ONVIF, RTSP,PPPoE,DHCP,TCP/IP,HTTP,UDP,RTP/RTCP,UPNP,FTP,DDNS

Power

DC12V ±10%

Water proof

IP66

Material

Aluminum

Operating Conditions

-18 °C - 50 °C, Humidity 90% or less (non-condensing)

Dimension

190x140x85mm

Weight

850g

Product Tags: 1080P IP bullet camera , 2Mp IP IR camera , outdoor IP bullet camera
