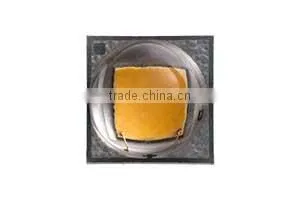

Original CREE XP-G2 led Diodes
Delivering high performance and lower system cost to XP-based designs
Built on the SC³ Technology Platform, the XLamp XP-G2 LED delivers up to 20% more lumens per watt and 2.5 times the lumens-per-dollar over the original XP-G, lowering system cost up to 57%. The new XP-G2 is optically compatible with the original XP-G – providing drop-in-ready performance enhancements to shorten the LED fixture design cycle and improve time to market. Combining high light output, reliability and efficacy, XP-G2 is optimized for directional, high-lumen applications, from indoor and outdoor to portable and lamp retrofits.
| Size | 3.45 x 3.45 mm |
| Maximum Drive Current | 1.5 A |
| Maximum Power | 4.9 W |
| Light Output | 515 lm @ 4.7 W (85°C) |
| Typical Forward Voltage | 2.8 V @ 0.35 A |
| Viewing Angle | 115 ° |
| Binning | 85°C |
| ANSI | |
| Thermal Resistance | 4 °C/W |
| Reflow Solderable | Yes - JEDEC J-STD-020C-compatible |
| RoHS Compliant | Yes |
| REACH compliant | Yes |
Pictures Show
Payment:
30% deposit, balance before shipment
Delivery time:
About 2-5days after comfirmation
Sample:
Free for sample,freight collect.
Why choose us?
Professional: Our 7 experienced engineers and designers can work on your ideas.
Responsible: The order will be produced exactly according to order details and proofed samples.
Efficient: Your inquiry will be replied within 24 hours.
Quality Control: Our QC will submit inspection report before shipment.
Competitive Price: Best price offer
Good Service: Real help to what you need
OEM & ODM projects are highly welcomed. We have strong R&D team here.
Your business relationship with us will be confidential to any third party.
