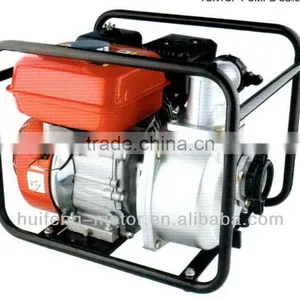

Help CenterWP Series Gasoline Pump
Related Products
Specifications
gasoline pumpHeavy-Duty full frame protection
Maximum Capacity of 76.9UKGallons per Minute
43.5 psi max
2"suction
gasoline pump
Description :
*Powered by 6.5 HP gasoline engine with rigid mounted cast iron volute and Cast Iron Impeller
* Heavy-duty full frame protection
*Maximum Capacity of 219.9 UKGallons per Minute .
*43.5 psi max
*3 suction/discharge ports.
*
Parameter
Item : WP-30A
Outlet Size (mm): 80
Inlet Size (mm) : 80
Speed: 3600
Displacement Q.max (m3/h): 60
Lift H.max (m): 30
Sunction(m): 7
Engine Model : G168-11
Max Output (HP):6.5
Fuel Volume:1.2
Engine Type:: 4-stroke25 single-cylinder with air-cooled
BorexStroke: 68mm*54mm
Displacement: 196ml
Compression Ratio: 8.5.1
Max Power Output: 4.8kw/3600rpm
Max Torque: 11N.m/2500rpm
Ignition System:Non-contract Transistorised ignition ( TCL )
Start Model ::Manual
Air Cleaner: Semi-dry or oil bathtype
Fuel Tank Capacity: 3.6L
Fuel Consumption: 395g/kw.h
Oil Capacity : 0.6L
Packing Dimensions: 520*390*460
N.W/G.W (kg ): 28.5/29.5
