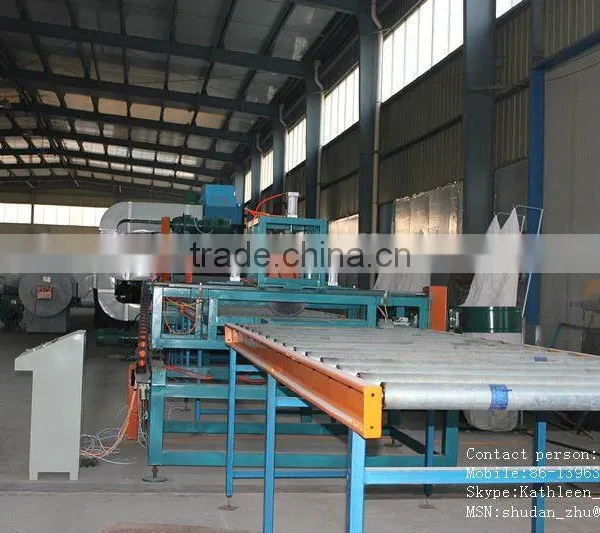

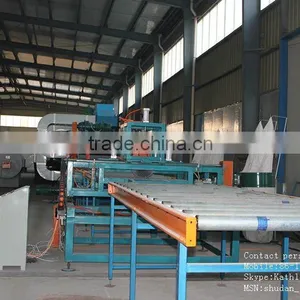

Best air ducting production line/Air-conditioners ducts machine:
We special make the air duct panel and producting line more than 10 years.We are China biggest and eariest air duct panel manufacturer.
This producting line is a kind of specialized equipment for productinglaminated panels with middle layer of anti-combustion PU/PIR/Phenolic with aluminum foil as the top and bottom face layers or with color steel surface or PU/Phenolic foam.
Its main used place: ventilarion ducts for central air-conditioners./dry wall or exterior wall insulation panel.
Finished product information:
The thickness:20mm-100mm
Standard width:1200mm
Length:its can cut as your needs.
Main technical parameters
- Linear speed of production 2~5 m/min
Maximum embossing speed 15 m/min to the maximum
Agitating speed 4500 r/min
Reciprocating times of injection head per minute <60
Maximum temperature of hot-air circulating 70°C
Laminating length of laminator 18 m
Maximum clearance between conveyors 300 mm
Total power of the line 134KVA
Weight ≈35 tons - External dimensions of line 37, 000×5,365×3,636 mm
- (Length×Width×Height)
The constituent parts of the production line are listed as follows:
One embossing machine unit including a decoiler, an embosser and a coiler
Two sheet-decoiling installations
One aluminum foil pre-heating mechanism
One low-pressure foaming machine
One mobile injector
One set of paper-posting installation
One conveyor laminator
One set of hot-air circulating installation
One edge-trimmer
One automatic-tracking cutter
One set of roller conveyor
