Help CenterCfa Coupling Ch175 for 600mm Cfa Auger Match Mait Hr130 Cfa Rig
Product Spotlights
Related Products
-
HD 4US$ 1000 - 5000MOQ: 1 Piece -
HD 5US$ 1000 - 5000MOQ: 1 Piece
-
HD 5US$ 1000 - 5000MOQ: 1 Piece
-
Xhd5*600MM CFA AUGER WITH SOILMEC Cfa Coupling Xhd5 Used on Soilmec Sf55 Cfa Rig for Cfa PileUS$ 1000 - 5000MOQ: 1 Piece
-
CFA AUGER 600MM Dia With Auger Start for Bauer BG24 DRILLING RIG FOR CONTINUOUS FLIGHT AUGER PILEUS$ 1000 - 5000MOQ: 1 Piece
Cfa coupling ch160 for 600mm cfa auger match mait hr120 cfa rig
Cfa coupling ch175 for 600mm cfa auger match mait hr130 cfa rig
Cfa coupling ch175 for 750mm cfa auger match mait hr180 cfa rig
Mait hr180 cfa coupling ch175 used for 600mm cfa auger
750mm cfa auger with cfa coupling ch175 match mait hr180 cfa rig
600mm cfa auger with cfa coupling ch160 match mait hr130 cfa rig

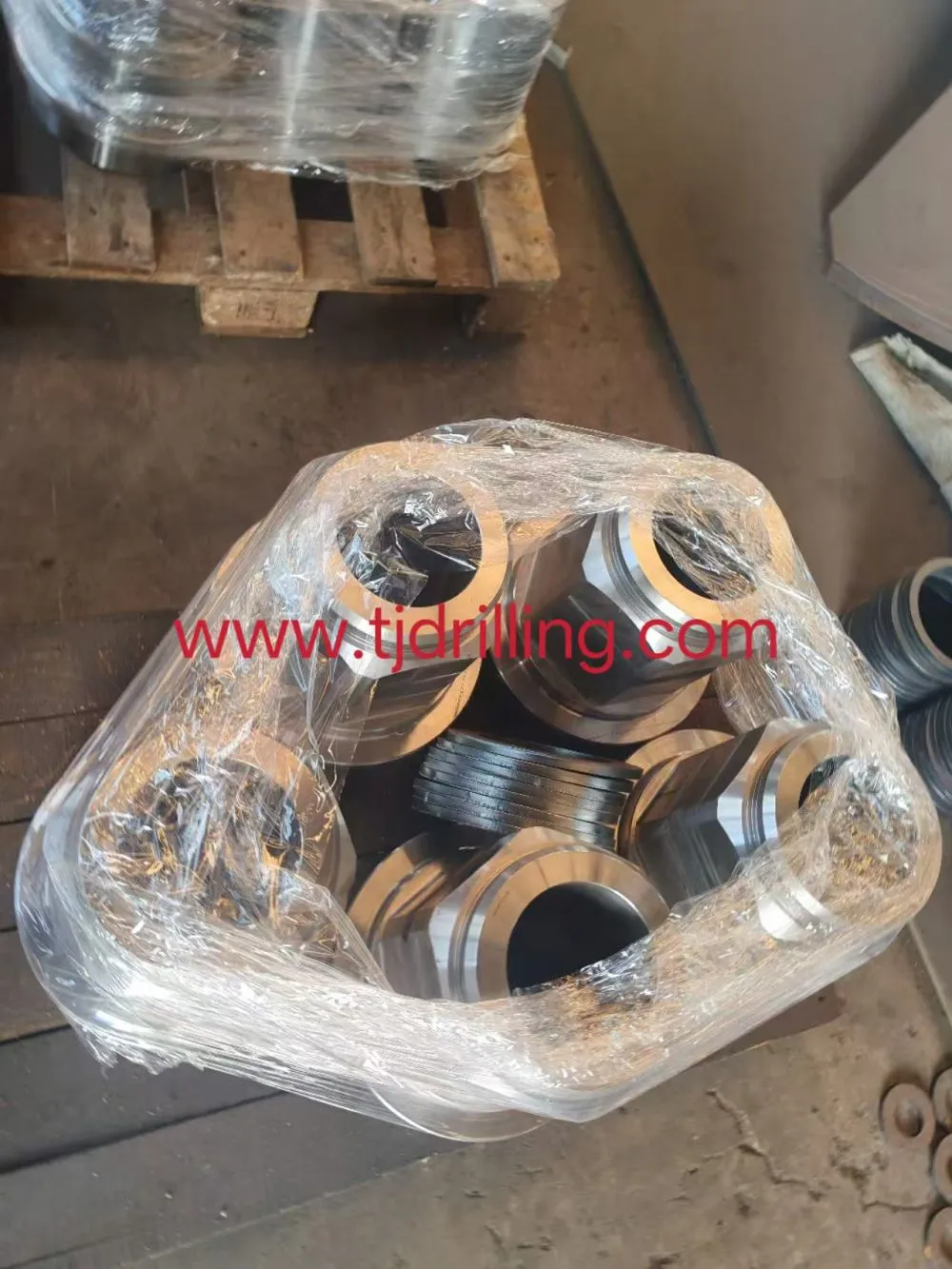

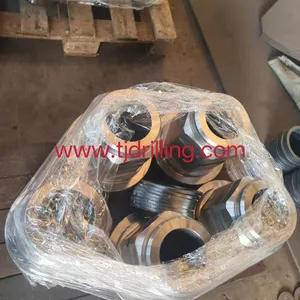

CFA couplings, models CH160 and CH175, are specifications of hexagonal quick connectors . They are core connecting components for drilling tools in the CFA (Continuous Flight Auger) construction method, used for torque transmission and fast assembly/disassembly between drill pipe sections, as well as between the drill pipe and the rig’s rotary head.
The number following "CH" stands for the nominal across-flats dimension of the hexagon (in mm). Specifically, CH160 has a hexagonal across-flats width of 160 mm, and CH175 has a width of 175 mm.
Core Parameters & Compatibility of the Two Models
1. cfa coupling CH160 Coupling
· Specification positioning: Small-to-medium size CFA hexagonal coupling
· Compatible MAIT rigs: Mainly fits small-to-medium CFA rigs including HR 45 CFA, HR 75 CFA, HR 120 CFA
· Typical torque capacity: Approximately 120–200 kN·m
· Matching drilling tools: Generally paired with CFA continuous flight augers of 400–800 mm diameter, for small-to-medium diameter bored pile works
2. cfa coupling CH175 Coupling
· Specification positioning: Medium-to-large size CFA hexagonal coupling
· Compatible MAIT rigs: Mainly fits medium CFA rigs including HR 130 CFA, HR 175 CFA, HR 230 CFA
· Typical torque capacity: Approximately 200–280 kN·m
· Matching drilling tools: Generally paired with CFA continuous flight augers of 600–1000 mm diameter, for medium-to-large diameter bored pile works
· Materials:35crmo
· Tianjin huachang xingye technology co ltd
Structural & Performance Features
1. Quick-connect design: It adopts a hexagonal plug-in structure without bolt fastening, allowing rapid connection and removal of drill pipe sections to significantly boost construction efficiency. The hexagonal contact surface ensures stable torque transmission under heavy load without slipping.
2. Hollow grouting passage: The coupling has a central through-hole connected to the hollow drill pipe body, which acts as the pumping channel for concrete or grout in the CFA process to ensure continuous and smooth grouting.
3. High-strength construction: Typically forged from high-strength alloy structural steel and reinforced by full heat treatment, it features excellent torsional strength, impact resistance and fatigue durability, and can withstand alternating drilling loads in complex strata such as dense clay and sandy gravel.
Mexico cfa coupling ch160 .ch175 match mait hr130,canada/Vancouver /Calgary toronto /Ottawa cfa coupling ch160 .ch175 match mait hr130 colombia Medellín,Cartagena,Barranquilla,Tunja cfa coupling ch160 .ch175 match mait hr130,Vietnam/Hà Phòng/Thành Chí Minh cfa coupling ch160 .ch175 match mait hr130,New Zealand/Auckland Australia Adelaide/Melbourne/Sydney/Brisbanecfa coupling ch160 .ch175 match mait hr130,thailand cfa coupling ch160 .ch175 match mait hr130,Malaysia /Singapore Indonesia/Jakarta
Pilipines Россия/russia cfa coupling ch160 .ch175 match mait hr130,belize/Puerto Rico/Guatemala/San salvador/Honduras cfa coupling ch160 .ch175 match mait hr130,Ecuador Peru lima ,callao/Bolivia Chile Santiago de Chile Argentina/Uruguay/Paraguay,Brasil/Guyana cfa coupling ch160 .ch175 match mait hr130,usa ,america los Angeles/new york/California cfa coupling ch160 .ch175 match mait hr130,South Africa Kazakhstan cfa coupling ch160 .ch175 match mait hr130, spain Português germany italy ,greece romania serbia,france cfa coupling ch160 .ch175 match mait hr130 south africa cfa coupling ch160 .ch175 match mait hr130,south korea cfa coupling ch160 .ch175 match mait hr130, japan cfa coupling ch160 .ch175 match mait hr130 , taiwan , hong kong cfa coupling ch160 .ch175 match mait hr130,UAE DUBAI cfa coupling ch160 .ch175 match mait hr130 , Israel cfa coupling ch160 .ch175 match mait hr130
D (mm) bauer ,soilmec,casagrande type
500/600/700/800/900/1000/1200/2000
