Specification
1. Product: Cuplock scaffolding
2. Standard Specification: 48.3*3.2mm
3. Material: Q235, Q345
4. Surface: Hot dipped Galvanized, Powder coated, Electric-galvanized
5. Application: Highways / Subways, Bridges, Tunnels and Fire Electrical Engineering, Marine Engineering
| Componets Name | Sizes |
| Cuplock standards ( mm) | 500,1000,1300,1500,1800,2000,2300,2500,2800,3000 |
| Cuplock ledger ( mm) | 600,900,1000,1200,1300,1600,1800,2500 |
| Transom Beam ( mm) | 565,795,1200,1300,1800,2500 |
| Diagonal brace (mm) | 1300*2000, 1800*2000,2500*2000 |
| Bracket (mm) | 565/6.6kg, 795/7.6kg |
| Top Up | Bottom Cup | Ledger Blade | |
| Material | malleable casting iron,drop forged steel | pressed carbon mid steel plate | malleable casting iron,drop forged steel |
| Type | 3 lugs & 4 lugs | closed & open | |
| Weight | 0.41kg -0.46kg | 0.19kg-0.22kg | 0.19kg-0.25kg |
| Surface | self color | self color | self color |

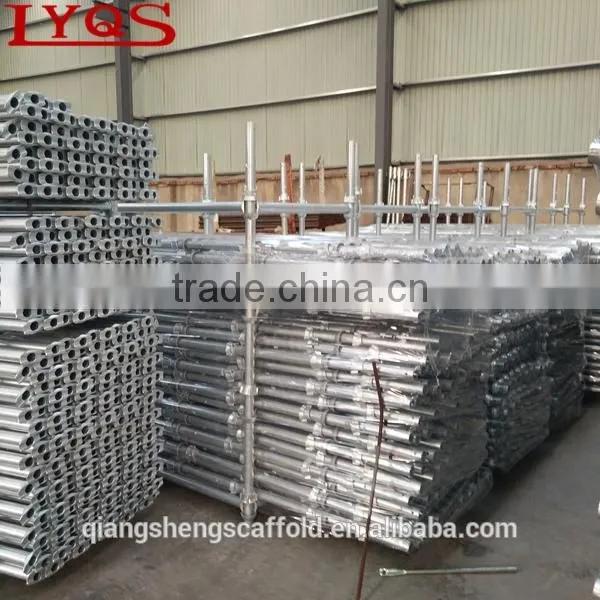

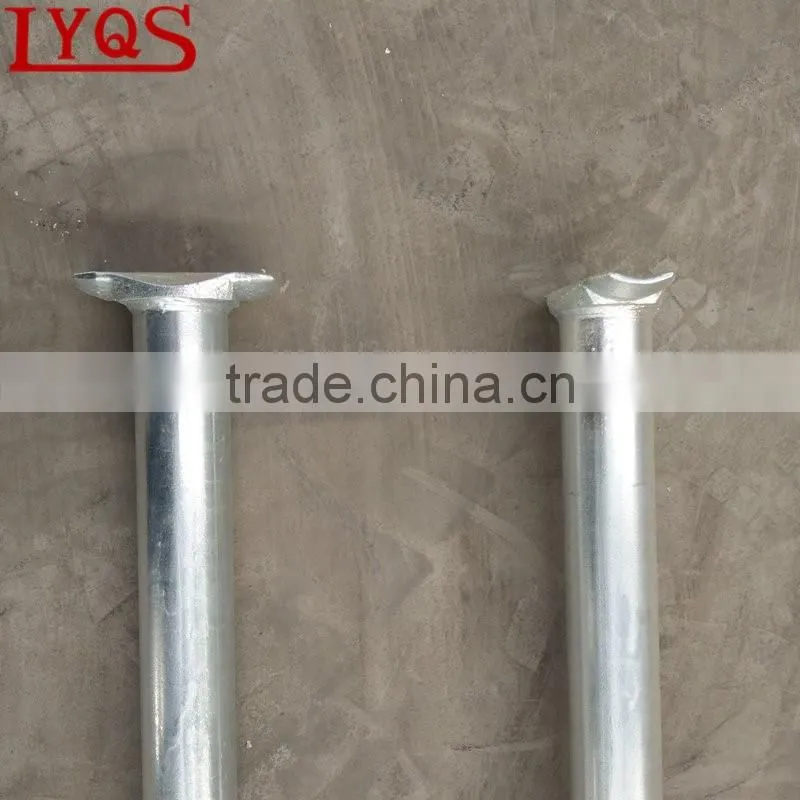

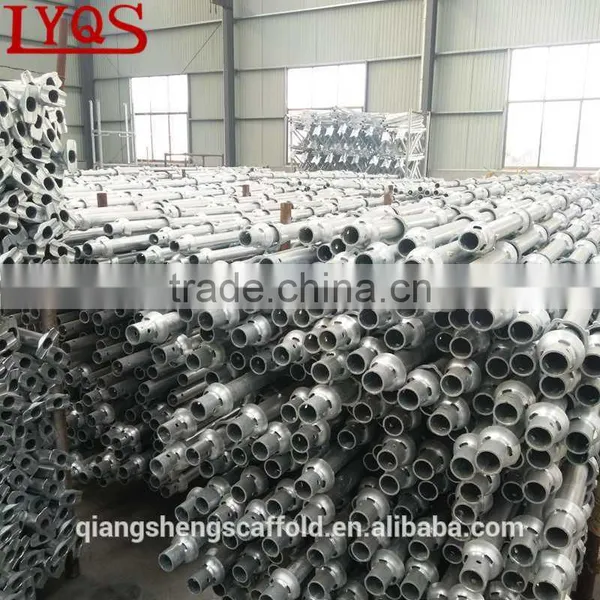

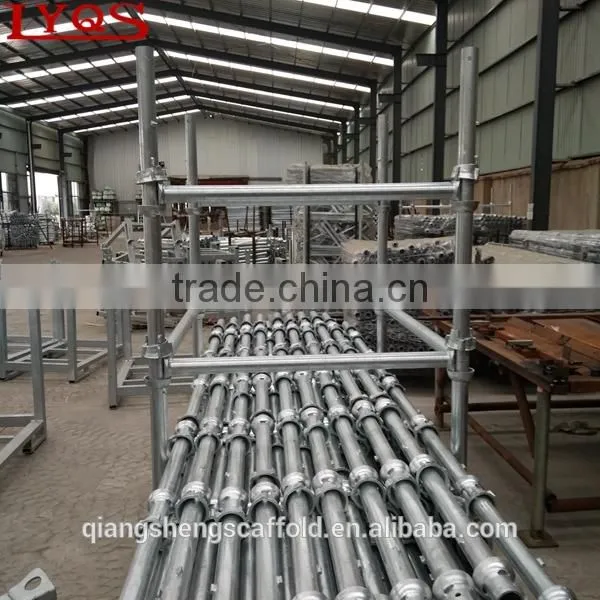

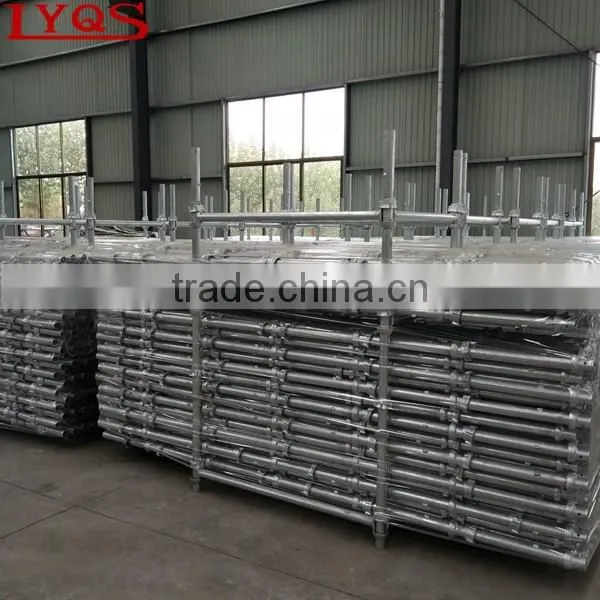

Detailed Imagines
Production
Cold rolled tube with better loading capacity.
Welding work by auto-welding machine
Finished by galvanization, powder coating or HDG
Package detailes
Steel pallet or we use the cuplock scaffolding parts
1. Q: Are you a factory or trading company?
A: We are a factory and trading company.
2. Q: How can I visit there?
A: You can fly to Qingdao Airport directly and then we will go to Qingdao to pick up you.
3. Q: How can you provide us with the samples?
A: We will use the express to send the samples. If possible, the sample is free,
but the customers need pay the express fee.
4. Q:How is your product?
A:High quality,reasonable price.
============================================================================================
If you have an interest in cuplock scaffolding , ringlock scaffolding ,
frame scaffolding ...... Please click the picture as follows
|
|
|
|
|
