Wood glass acrylic marble stone leather silicone CO2 laser engraver
CO2 Laser Engraving and Cutting Machine:
Our co2 laser engraving machine is widely used for Non-metal material, like the Acrylic, wood, leather, Gift& Crafts, Advertising, fabrics clothes and garments handbags. woods, PVC, glass, etc.
We are supplying different models by working area :
400*300mm,600*400mm,900*600mm,1300*900m,1600*1000mm,1600*2600,1300*1800mm,1300*2500mm,1600*2600mm, etc and Laser Power (40w, 50w,60w,80w,100w,120w,150w etc).
wood laser cutting Features:
1) Advanced LCD Touch Screen+ USB port+ DSP Offline Control, which can not only work without computer, but also connect to U disk, USB communication.
2) LCD Control System own 128M Big Memory, which can store files in the machine for engraving and cutting, compatible with AutoCAD, CorelDraw, Photoshop and some other kinds of graph disposal software.
3) Imported high precision linear guide rail and professional optical system, dustproof and lubricate, which improve the engraving quality and prolong machine lifetime.
4) Special Front and back running-through design, the unique door for the limitless engraved materials through.
5) Professional Honeycomb or Strip work table, which meet the needs of diversified laser procession;
6) Water Cooling System with Alarm Protection function, adopt CW-3000 Water Chiller with temperature display, which can avoid over burning, to protect the water circulation from electricity-off.
7) Equipped with luxury Consumables, Imported Focus Lens and reflect mirror, Chinese Best Quality Laser Tube, 10000 hours Laser Tube and RF metal tube for your choose, makes high efficiency and steady.
8) High speed stepper subdivision driver control, numeral timing, simulation quantum control laser power, little error, repetition high precision, engrave 1×1mm little English character perfect.
9) Red Light Pointer realizes the exact position without laser.
Matched Professional software is particularly designed and written for engraving and cutting, with high compatibility, support any computer operating system.
laser cutting Technical Data:
Model |
PEDK-4030 |
PEDK-6040 |
PEDK-9060 |
PEDK-13090 |
PEDK-160100 |
PEDK-130250 |
PEDK-130180 |
PEDK-160260 |
|||||
Working Area |
400×300mm |
600×400mm |
900×600mm |
1300×900 mm |
1600×1000mm |
1300×2500mm |
1300×1800mm |
1600×2600mm |
|||||
Laser Power |
40W / 50W |
50W / 60W |
60W / 80W |
60W / 80W / 100W / 120W / 150W |
||
Laser Type |
Hermetic and Detached Co2 Laser Tube |
|||||
Engraving Speed |
1-60000mm/min |
|||||
Cutting Speed |
1-10000mm/min |
|||||
Repeat Location Accuracy |
± 0.0125mm |
|||||
Laser Power Controlling |
1-100% Manual Adjustment and Software Controlling |
|||||
Voltage |
220V(±10%) 50Hz |
|||||
Cooling Mode |
Water Cooling and Protect System |
|||||
Cutting Platform |
Professional Thickening Strip or Honeycomb Work Table |
|||||
Controlling Mode |
CNC Professional Control System |
|||||
Support Graphics Formats |
BMP, HPGL, JPEG, GIF, TIFF, PCX, TAG, CDR, DWG, DXF Compatible HPG Order To Support DXF, WMF, BMP, DXT |
|||||
Power Controlling Mode |
Laser Energy Combining Movement Control System |
|||||
Control Software |
Original Perfect Laser’s Engraving & Cutting Software |
|||||
Training |
Video Training |
|||||
Guarantee |
12 month Guarantee Period |
|||||

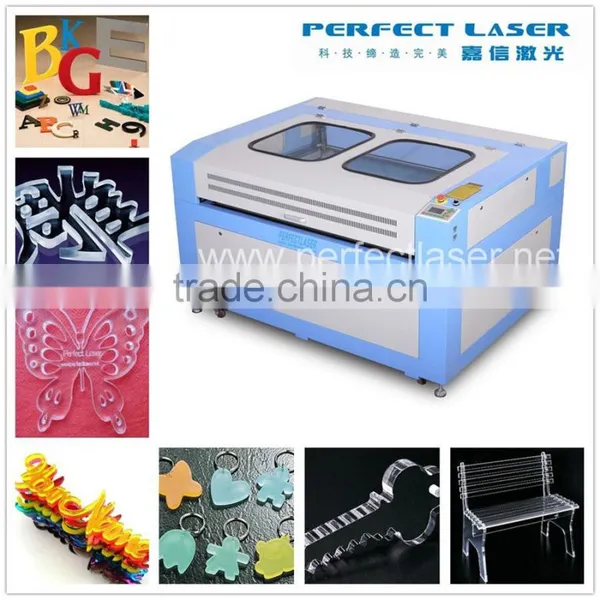

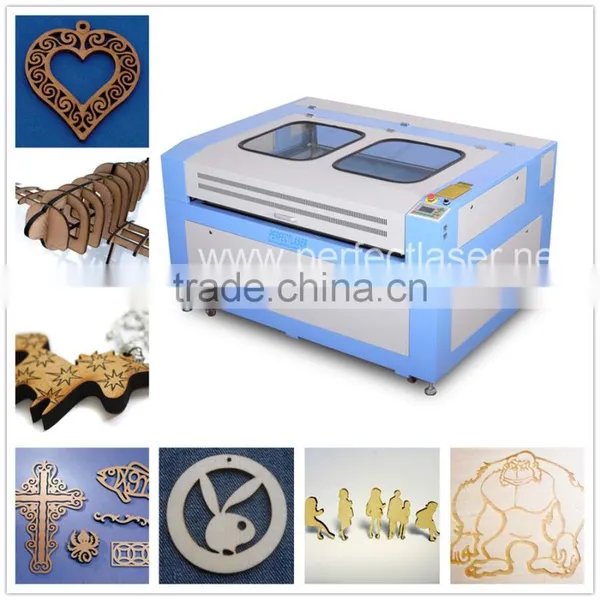

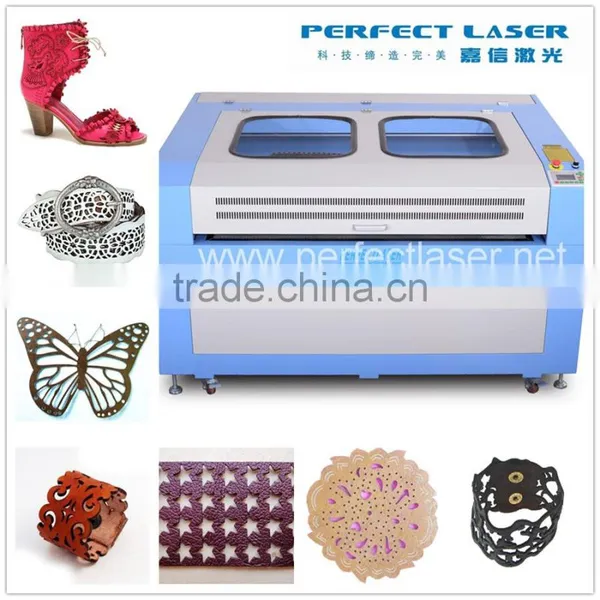

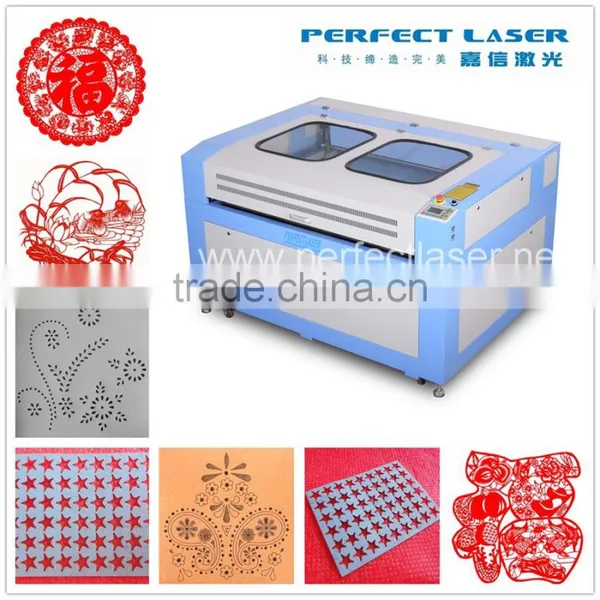

Laser cutting machine Samples:

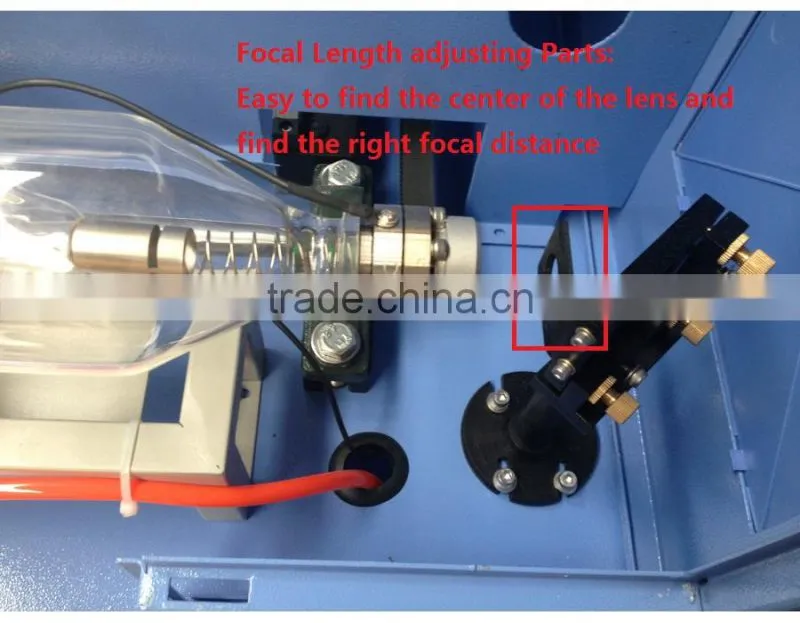

laser cutting Machine detailed pictures:

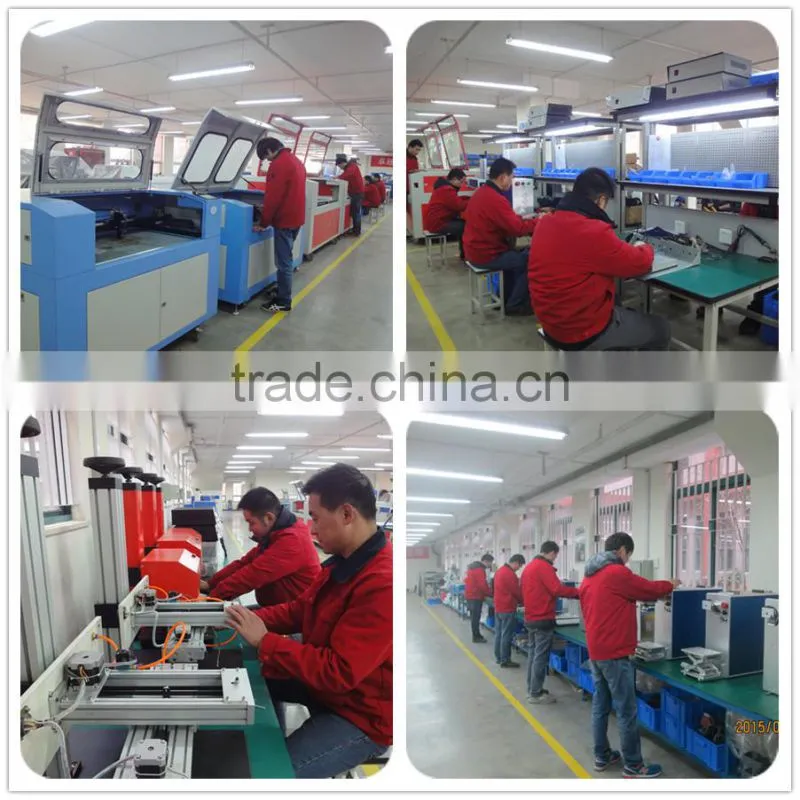

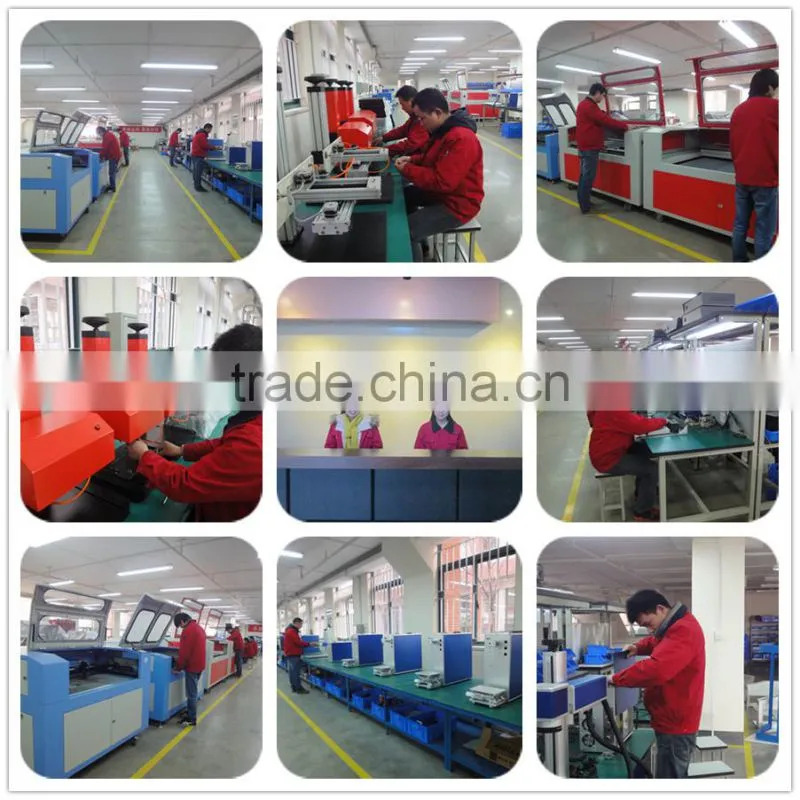

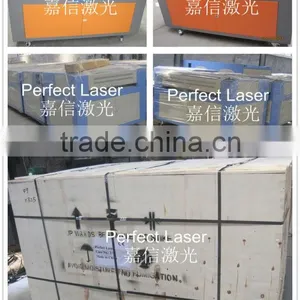

Factory and customer visiting:
Please advise us the following information, then we can recommend you the most suitable model, right now, don't hesitate to contact –China Perfect Laser!
- The exact material you want to engrave/cut? (wood, acrylic, cloth, fabric, leather, rubber, paper, plastic, marble....)
- The cutting depth on above materials?(max thickness, 3 mm, 6 mm, 15 mm, 20 mm....)
- The working area you demand? (max dimension of material, width*length, 600*400 mm, 900*600 mm, 1300*900 mm,...)
Need more information or video, please send email to us or add me on Skype perfectlaser006, WhatsAPP / Viber: 0086 13659897178
Thank you!
