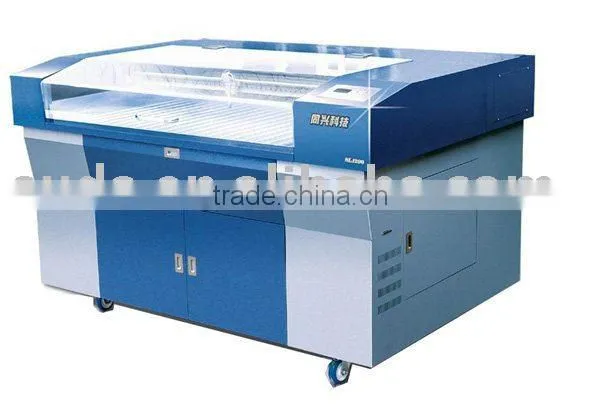

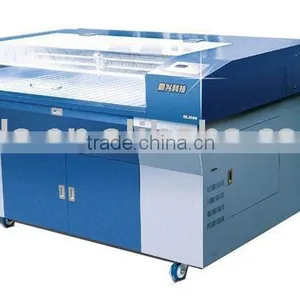

Help CenterSUDA SL 1290 Laser Machine
Related Products
-
Suda Laser Cutting Machine SL6040NegotiableMOQ: 1 Set -
Suda SL1290 AIR BAG LASER CUTTING MACHINENegotiableMOQ: 1 Set
-
HEFEI Suda Laser Cutting Machine/cnc Machine Laser Cutting -- SL1290NegotiableMOQ: 1 Set
-
Suda Laser Cutting Machine/cnc Machine /cnc Router 3d Router Cnc ---SL9060NegotiableMOQ: 1 Set
-
HEFEI Suda Large Format Laser Machine Laser Equipment-- SL4030NegotiableMOQ: 1 Set
Specifications
laser machineCE certificate
Good for engraving and scanning
laser power is 80w
FPGAcontrolling system
Laser power : |
80W |
Laser type: |
CO2 |
Power supply: |
AC220V±10%,50HZ |
Working area: |
1200*900mm |
Max cutting speed: |
200mm/sec |
Max engraving speed: |
2000mm/sec |
Worktable: |
Lifting platform (optional ) |
motor |
Standard stepper, SERVO import from Japan ( optional) |
Locating precision: |
0.1mm |
|
Min shaping character:
|
Engrving 0.8mm, cutting 2mm |
Operating temperature: |
0°c-45°c |
Work degree of humidity |
5-95%(have no Ning water) |
Resolution ratio: |
less than 0.025mm |
Control configuration: |
Advanced DSP controlling system |
Data transfer interface: |
USB flash disk / directly from computer |
System environment: |
Above Window 2000, window XP |
Cooling way: |
Water cooling |
Graphic format supported: |
BMP,GIF,JPGE,PCX,TGA,TIFF,PLT,CDR,DMG,DXF, etc. |
Compatible software |
Transmit files directly form Coreldraw, AutoCAD, etc. |
Cutting thickness |
20mm |
Color separation |
200 |
Sloping engraving |
90°--180° |
Cuts off the water supply the protection |
yes |
Packing dimention |
1870*1360*1330mm |
Red point as standard |
not |
Air pump as standard |
Yes |
Gross weight |
480kg |
packing |
Standard non-woody |
