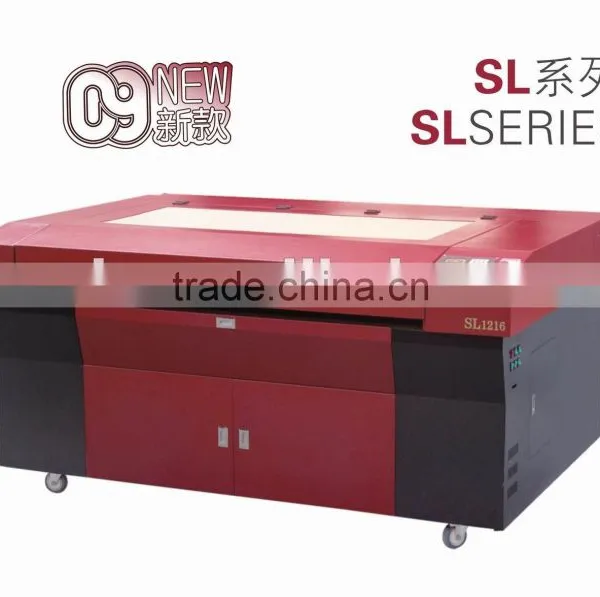

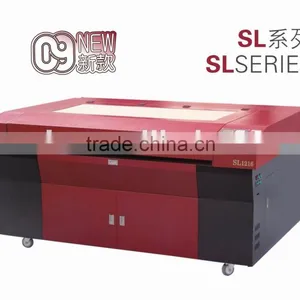

Help CenterHefei Suda Laser Center Sell Suda Laser Cutting Machine SL-1216
Related Products
-
HEFEI Sell Suda Laser Cutting Machine Laser Making Machine SL-9060NegotiableMOQ: 1 Set -
SELL SUDA Laser Machine for Acrylic---SL9060US$ 4,500 - 12,500MOQ: 1 Set
-
HEFEI SUDA CNC CENTER SELL Laser Engraving Cutting Machine With ChillerNegotiableMOQ: 1 Set
-
HEFEI Sell SUDA SL1290 Laser Engraving MachineUS$ 6,500 - 7,000MOQ: 1 Unit
-
Suda Sell Cnc Control Kit DL1290 Co2 Laser Cutting MachineNegotiableMOQ: 1 Set
Specifications
Support to output of USB flash disk ,Transmit files directly ftom coreldraw,
Configured with high power laser tube
*distinguished features
1. Optimization of mechanical and electrical design, processing speed can be up to 2000mm/s
2. Configured with high power laser tube,can cut acrylic of 20mm thickness in one step
3. With multi-function,FPGA controlling system can effectively engrave on plane,gradient engraving by 360,cutting and drilling holes,etc.Support to output of USB flash disk and work 0ff-line of the computer
4. Restoring from power-off,continuation on break point
5. Transmit files directly ftom coreldraw,AutoCAD etc.
6. Configured laser lens from America,can ensure the cutting effect perfect
*Application
Applicable to material:Acrylic, PVC board,Woody products,Bamboo ware,Crystal,Rubber,Plastic products,Double plate,PCB board,Paper&Leather,Tiles,etc.
*Applied to industries
Applied to Advertising,Decoration&Furnishings,Costume,Fur&Leather Industry,Footwear& Headwear Industry,Model Industry (construction model,aeromodels/navigation models),Artcraft and Electronic&electrical Apparatus industries etc.
*Typical Application:
Signs plates,Acrylic products,Stamps,Costume design draft,Printing,Artcraft,Construction models making etc.
* technical data
Optional, equipped with Panasonic AC servo motor
Model |
SL-6040 |
SL-9060 |
SL1290 |
SL-1216 |
||
Engraving Size |
600mm*400mm |
900mm*600mm |
1200mm*900mm |
1200mm*1600mm |
||
Power |
40W-50W |
60W-70W |
80W-100W |
≥100W |
||
Resolution |
0.025mm |
|||||
Setting Accuracy |
0.1mm |
|||||
Repetition Accuracy |
0.1mm |
|||||
max.cutting speed |
200mm/sec |
|||||
max.engraving speed |
2000mm/sec |
|||||
min.size of engraved letters |
Chinese letter engraving 1.5mm,cutting 3mm;English letters engraving 0.8mm,cutting 2mm |
|||||
max.cutting thickness |
≥Acrylic 10mm |
≥Acrylic 15mm |
≥Acrylic 20mm |
|||
Dictate Format |
HPGL(transmit files directly from Coreldraw,AutoCAD etc.) |
|||||
