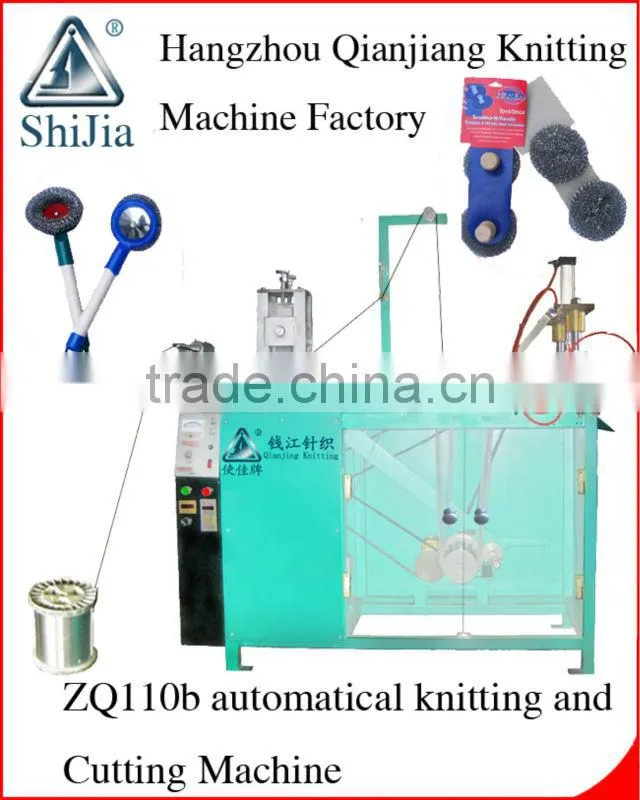

Help CenterFull-automatic Mesh Cleaning Ball Machine
Related Products
-
Double-cylinder With Automatic Cut Mesh Steel Scourer MachineUS$ 3,800 - 4,000MOQ: 2 Units -
Full Flattening Steel Cleaning Ball MachineNegotiableMOQ: 2 Sets
-
Fully Automatic Spiral Scourer Knitting MachineNegotiableMOQ: 1 Set
-
Jacquard Weave Cleaning King Machine (QJF-QC-102B)NegotiableMOQ: 1 Set
-
Jacquard Weave Cleaning Pad Machine(QJF-QC-102B)NegotiableMOQ: 1 Set
Specifications
1.used to make scourers2.with inverter machine could be more stable
This auto cleaning ball knitting machine could produce the steel wire cleaning ball by the principle of squashing and knitting
This auto cleaning ball knitting machine could produce the steel wire cleaning ball by the principle of squashing, knitting, complete squashing, the knitting process by one time, which is used for stainless steel wire, galvanized wire, copper-plating iron wire, etc., As the clean effect of the products are nice well, it is widely used in hotel, factory, kitchen, bathroom and so on.
The machine use eddy-currebt couplinng motor to adjust the speed of piner roller, use transducer to adust the speed of knitting machine to keep proporiation of both machine in perfect.
Adjust pressure roller speed by the electromagnetic speed regulating motor, and adjust the knitting speed of the rolling machine by the transducer, keep the perfect allocated proportion of both speed.
At the same time, this machine install micromatic setting of knitting speed, when machine operates, it could automatic control the squash and knitting speed, thus it can adjust the mesh size of the products very conveniently, settle the difficult problem of the machine thoroughly, which is not able to adjust the density of product, it is worthy of the leading position to similar machines in our country.
Technical Target:
- Diameter: 110mm,130mm
- Feed: 1
- Gauge: 5G-10G
- N.W: 200KG
- Output: 20-30m/h
- Power: 0.75KW
Send Inquiry to This Supplier
