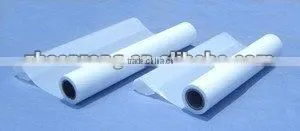

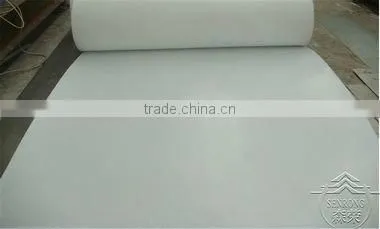

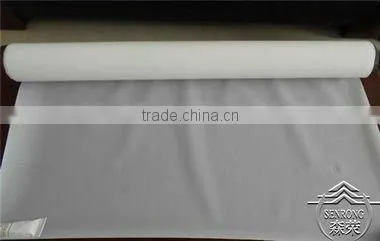

PTFE Film
PTFE skived film and tapes are consist of PTFE film raw materials.The film can be divided into non direct, semi-direct and direct film.PTFE film has high tensile strength, good insulation, excellent anti-sticking materials.
PTFE Film Properties Index:
|
Project Name
|
Unit
|
SFM-1 |
SFM-2 |
SFM-3 |
||
direct |
semi-direct |
Non-direct |
direct |
Non-direct |
||
Tensile Strength≥ |
MPa |
30.0 |
20.0 |
10.0 |
30.0 |
10.0 |
Ultimate Elongation≥ |
% |
30 |
60 |
100 |
30 |
100 |
Dielectric Loss(≤10µm) |
- |
3.0×10-4 |
- |
- |
3.0×10-4 |
- |
Dissipation Factor(>10µm) |
- |
2.5×10-4 |
- |
- |
- |
- |
Dielectric Constant |
% |
1.8~2.2 |
- |
- |
1.8~2.2 |
- |
|
DC Breakdown Strength(normal) |
KV/mm |
Average 200 |
60 |
40 |
60 |
30 |
Min 40 |
6 |
4 |
- |
- |
||
Skived Tape Properties Index:
|
Project Name
|
Unit |
Result |
Proportion |
g/cm3 |
2.10~2.30 |
Tensile Strength≥ |
MPa |
≥15.0 |
Ultimate Elongation≥ |
% |
150 |
Products Specifications:
Name |
Thickness(mm) |
Thickness Allowable Error |
width(mm) |
Direct Film |
0.03~0.10 |
±0.02mm |
10~120 |
Skived Film |
0.10~0.49 |
±0.03mm |
10-~300 |
Skived Film |
0.50~1.0 |
±0.05mm |
10-~1000 |
Skived Tape |
1.10~5.0 |
±0.1mm |
10~1200 |
(if your specifications and sizes are not listed in here. Please feel free to contact us through email or telephone as some certain specifications and sizes could be customized according to your request.)
We have filling the toners, copper, graphite, polystyrene and made into different colors or improved hardness, improved high temperature, resistant properties of skived film.
Products Application:
It is used to the work as gaskets, sealings and lubricating materials, as well as in various frequency of use of electrical insulation.Such as the capacitor dielectric, special electric insulation layer wire insulation, electrical instrumentation insulation, sealing gaskets, also made into non-stick sealing tape, releasers and insulation materials.
