PTFE Molded Sheet manufacturer
1 Description:
PTFE molded sheet is manufactured by molding method with PTFE granular resin. PTFE possesses the best chemical resistance of all known plastics. It does not age. It has the lowest coefficient of friction of all known solid materials and a wide range of practicable temperature from below zero 180°C~up zero 260°C
2 Features:
1) Stretch strength: 15 Mpa
2) Break elongation rate: 150%
3) Pure material guarantee.
4) Corrosion resistant
5) Standard size stocks are available
6) High chemical properties: wide working temperature range from below zero 180°C~up zero260°C
3 Specifications:
Length(mm)×Width(mm) |
Thickness(mm) |
|
Nominal |
Tolerance |
|
150×150 |
1.0~100 |
±0.30~±0.50 |
250×250 |
1.5~100 |
±0.30~±0.50 |
300×300 |
1.5~100 |
±0.30~±0.50 |
450×450 |
1.5~100 |
±0.30~±0.50 |
600×600 |
2~100 |
±0.30~±0.50 |
800×800 |
2~100 |
±0.30~±0.50 |
1000×1000 |
3~100 |
±0.30~±0.50 |
1200×1200 |
3~100 |
±0.30~±0.50 |
1500×1500 |
5~100 |
±0.50~±0.80 |
1600×1600 |
5~100 |
±0.50~±0.80 |
2000×1000 |
5~60 |
±0.60~±1.00 |
1800×1800 |
5~60 |
±0.60~±1.00 |
4 Main properties:
Properties |
Unit |
Result |
Apparent density |
g/cm3 |
2.10~2.30 |
Tensile strength(min) |
MPa |
15.0 |
Crack elongation(min) |
% |
150 |
Dielectric strength(min) |
Kv/mm |
10 |
5 Applications:
Moulded PTFE Sheet could be used in the following fields:
1) Anti-corrosion lined materials
2) Sealing lined materials
3) Lining bearing pads
4) Slide block slippers
5) Dielectric parts, etc

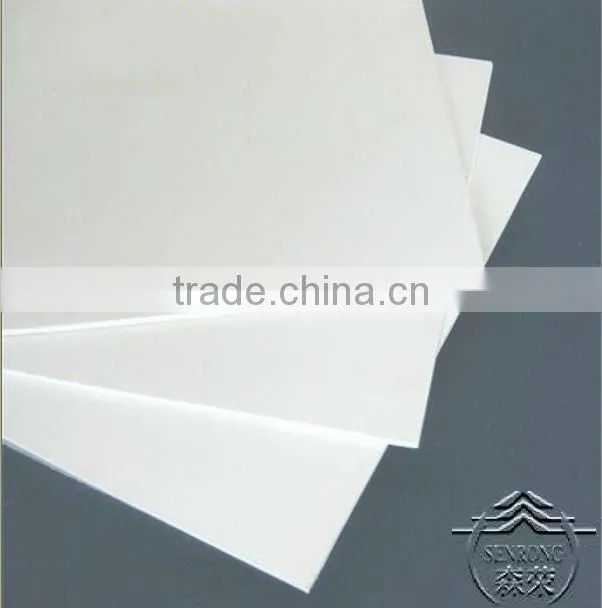

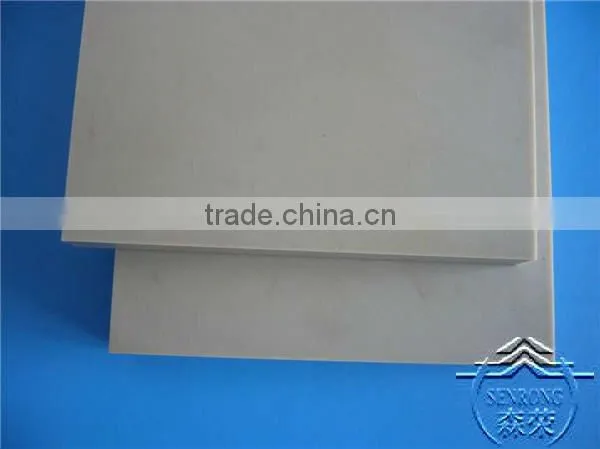

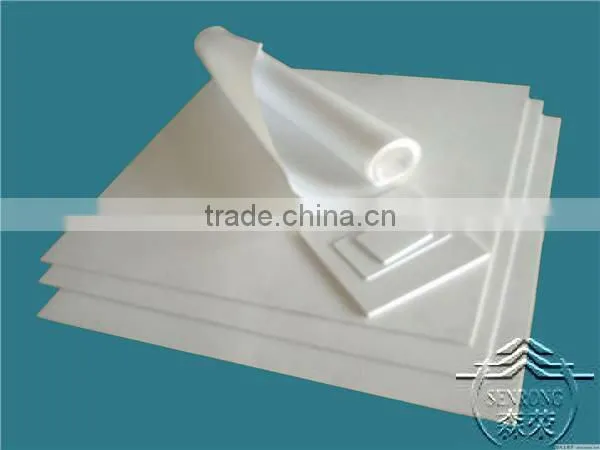

6 Photos:
