Specifications
We are manufacturing 130,155,180,200 degree magnet wire. enamel, paper,fiberglass cover1.ISO,UL,Rohs approve
2.Dia:0.03-5.0mm

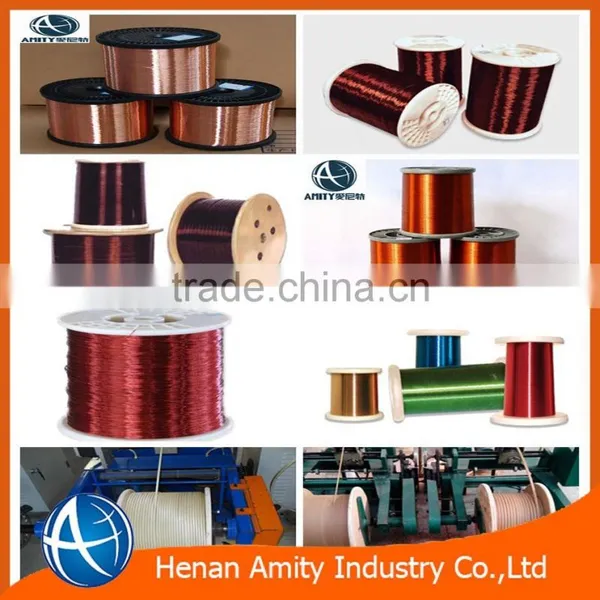

magnet wire enamel,paper ,fiberglass cover
We mainly supply super 130,155,180&200 degree magnet wire enamel paper fiberglass cover with competitive prices under the standard of IEC60317,NEMA,BS,AS,JISC,and Chinese standard.
Certificate:UL,Rohs,ISO9001&14001
Magnet wire enamel cover
130 degree Polyester enameled magnet wire PEW 0.10-3.0mm
155 degree Polyurethane enameled magnet wire UEW 0.03-0.9mm
180 degree Polyurethane enameled magnet wire UEW 0.03-0.9mm
180 degree Polyesterimide enameled magnet wire EIW 0.11-5.0mm
200 degree high temperature Polyester or Polyesterimide overcoated Polyamide-imide enameled magnet wire
EIW 0.11-5.0mm
220 degree Polyamide enameled magnet wire PIW 0.11-5.0mm
Magnet wire paper cover
Telephone paper,Power Cable Paper, High Density Insulation Paper, heat-resistant insulating paper,
clupak paper, Nomex 410 paper cover magnet wire.
Magnet wire fiberglass cover
Polymide film and Glass Fibre& Impregnated cover magnet wire with Class F 155°C,H 180°C,C 200°C Varnish
Testing
Name |
Enameled Copper Wire |
|||
Type |
Q(ZY/XY)-2/200 (EI/AIW) |
|||
Diameter |
1.600 mm |
|||
Standard |
IEC60317-13 |
|||
Test Item |
Unit |
Technical Requirement |
Test Result |
|
Appearance |
|
bright and clean, Uniform color, |
Ok |
|
|
Conductor Diameter |
mm |
1.600±0.016 |
1.60 |
Thickness of insulation film |
mm |
>= 0.077 |
0.090 |
|
Overall Diameter |
mm |
<=1.706 |
1.690 |
|
Mechanical properties |
Elongation |
|
>=32 % |
37% |
spring-back angle |
|
<=30 |
27 |
|
Flexibility and adhesion |
winding test |
1D,no crack |
ok |
|
Jerk test |
No Crack, and No losing adhesion |
ok |
||
scratch resisting(Average) |
N |
14.9 |
16.9 |
|
scratch resisting(Min) |
N |
12.6 |
15.4 |
|
Thermal propeties |
heat shock |
N |
220°C,crack free |
ok |
cut-through resistance |
N |
320°C, 2Min no breakdown |
ok |
|
Chemical resistance |
Resistance to solvent |
H |
1H |
2H |
Electrical properties |
DC resistance at 20°C |
Ω/m |
0.008264-0.008748 |
0.008640 |
Breakdown Voltage |
KV |
>=5.0 kV |
8.9kv |
|
Enamel Film continuity |
|
<=5 /30m |
0 |
|
package |
|
Meet the export standards |
Ok |
|
Quality Control Result |
|
Ok |
||
